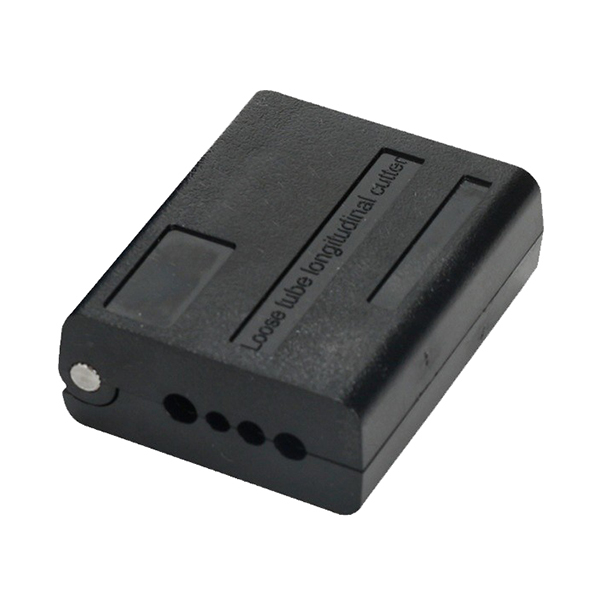

MAY-12A Mid Span Tool - Longitudinal Buffer Tube Slitter
Description:
Buffer Tube Slitter is especially designed for stripping the outer jacket of a patchcord or a pigtail. It can slit loose tubes of ￠1.5mm~3.3mm longitudinally. It has 4 rails on the body. Each rail is for the tube of specified diameter so that the stripping precision can be improved.
Features:
- Compact design, light weight, portable

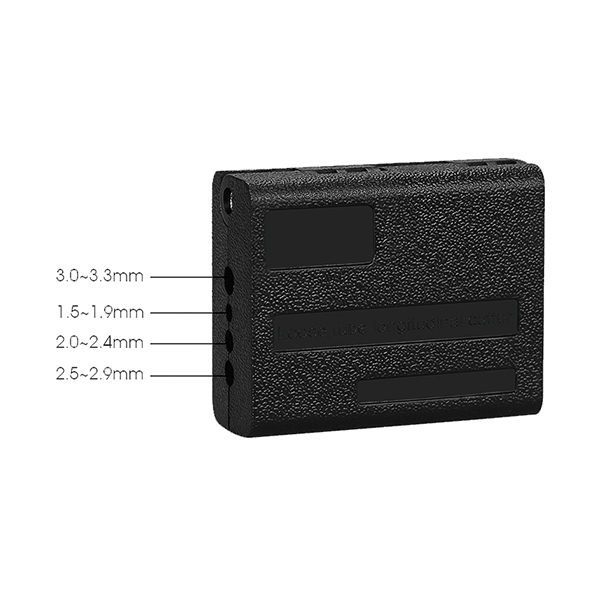

- 4 guide rails for tubes with different diameters
- Composed with high quality metal blades, more durable
- High precision rail design, ensure the integrality of the fiber
Specifications:
| Dimension (mm) | 49*40*18 | |||
| Weight (kg) | 0.04 | |||
| Body Material | Stainless steel | |||
| Stripping Cycles | 2*1000 cycles | |||
| Packing size (mm) | 64*64*26 | |||
| Guide Rail Diameter (mm) | φ1.5~1.9 | φ2.0~2.4 | φ2.5~2.9 | φ3.0~3.3 |
