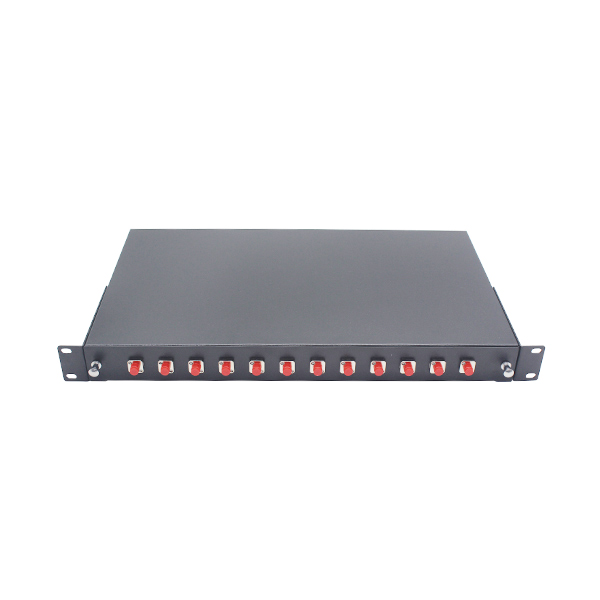

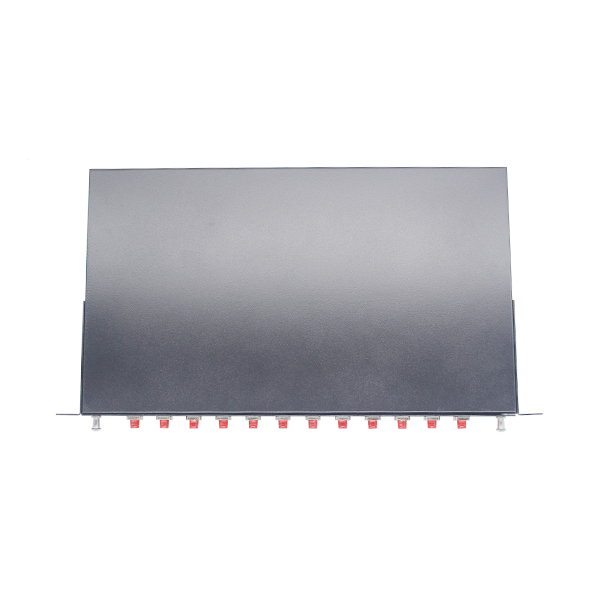

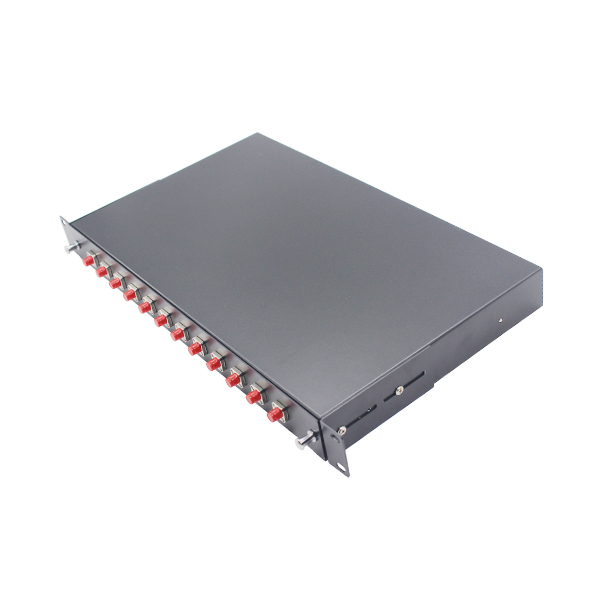

MAY-FPP-3007 Series Drawer Type Fiber Optic Patch Panel
Description:

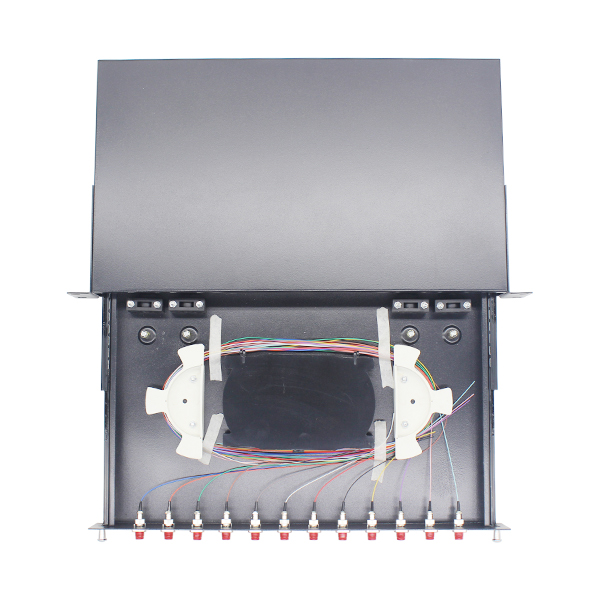

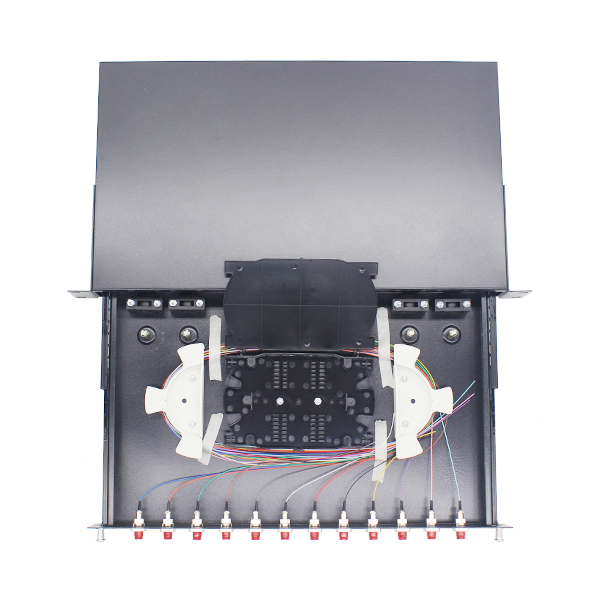

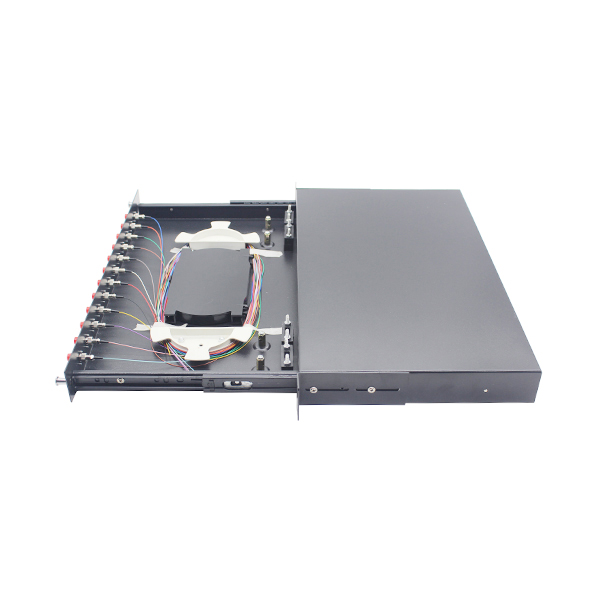

Drawer Type Fiber Optic Patch Panel is a 19” rack mount splice & patch enclosure with sliding trays for managing fiber optic cabling in central office in FTTx application.
Drawer Type Fiber Optic Patch Panel is used as termination panel for optical fiber wiring, fixation, splicing and patching.
Based on different height, there are 1U patch panel, 2U patch panel, 3U patch panel, etc.
Based on different capacity, there are 24 port LC fiber patch panel, 48 port LC fiber patch panel, 72 port LC fiber patch panel, 96 port LC fiber patch panel and 144 port LC fiber patch panel.
Features:
- Drawer type ODF for easy operation and maintenance
Specifications:
| Applicable Adapter | SC, FC, LC |
| Capacity | 12~96 fibers |
| Material | cold rolled steel |
| Color | Black |
| Size | 12/24 fibers: 482.6(W)*250(D)*44(H)mm (19” 1U)
48 fibers: 482.6(W)*250(D)*88(H)mm (19” 2U) |
| Installation Method | 19” rack mount |
| Splice Tray Capacity | 12/24 fibers/tray |
Ordering Information: MAY-FPP-3007-XX-XX-XX:
| Model | MAY-FPP-3007 |
| XX: Adapter | None: without adapter SU: SC/UPC SA: SC/APC FU: FC/UPC FA: FC/APC LU: LC/UPC LA: LC/APC |
| XX: Pigtail | None: without pigtail 9: 0.9mm 2: 2.0mm 3: 3.0mm D: 0.9mm distribution cable R: ribbon |
| XX: Fiber Capacity | 12: 12 fibers 24: 24 fibers 36: 36 fibers 48: 48 fibers 72: 72 fibers 96: 96 fibers |
Customization:
Printing logo, frame material, fiber capacity, adapter type, pigtail type, frame color, etc.
