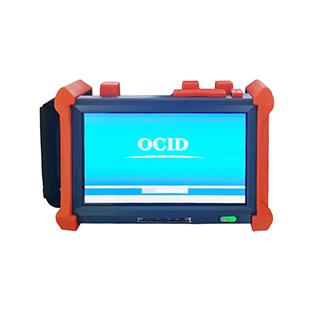

MAY100 Optical Cable Identifier
Description:
MAY100 Optical Cable Identifier can accurately identify the specific cable from a bunch of aerial, duct, or direct buried cables by connecting it to one fiber with FC/APC connector in the cable and knocking the cables.
When knocking the specific cable, MAY100 Optical Cable Identifier will transform mechanical vibration to video and sound signal, which will help find the target cable. It could display the distance from the knocking point to the testing point.
Features:
- No need to cut the cable, easy and quick
- High SNR
- Low power consumption
- High dynamic range, up to 80km
- Various communication and storage interfaces, sable system
Application and scenarios:
Engineers will be able to identify easily all of their desired target optical cables as long as they would access this instrument to the terminal and tap lightly the optical cables on the spot.
| Model | MAY100A | MAY100B | MAY100C |
| Fiber Number | single fiber | ||
| Wavelength | 1550nm | ||
| Max. Distance | 60km | 80km | 100km |
| SNR | >40dB | ||
| VFL Distance | 10km | ||
| Fiber Type | SM | ||
| Optical Connector | FC/APC | ||
| Display | 5.6 inch touch screen | ||
| Input Mode | TIF touch screen + button | ||
| Output Mode | video: active display of real-time waveform | ||
| audio: dual channel audio output | |||
| Power Supply | DC12V/5A | ||
| Lithium Battery | 7.4V, 7.5Ah, continuous working time ≥30h | ||
| Power | ≤4.5W | ||
| Dimension | 255H*155W*72L mm | ||
| Net Weight | 1.5kg (including battery) | ||
| Operating Temperature | 0 to +50℃ | ||
| Storage Temperature | -20 to +70℃ | ||
Standard Accessories:
AC/DC adapter, headphone, adapter, patchcord, coupler, test report, carrying bag, user manual
