MAY-FS600 Single Fiber Fusion Splicer
![MAY-FS600 Fusion Splicer - main](https://www.maytelecom.com.cn/wp-content/uploads/MAY-FS600-Fusion-Splicer-main.jpg)
![MAY-FS600 Fusion Splicer - Open](https://www.maytelecom.com.cn/wp-content/uploads/MAY-FS600-Fusion-Splicer-Open.jpg)
![MAY-FS600 Fusion Splicer - top](https://www.maytelecom.com.cn/wp-content/uploads/MAY-FS600-Fusion-Splicer-top.jpg)
![MAY-FS600 Fusion Splicer - 10 languages](https://www.maytelecom.com.cn/wp-content/uploads/MAY-FS600-Fusion-Splicer-10-languages.jpg)
![MAY-FS600 Fusion Splicer - OPM and VFL](https://www.maytelecom.com.cn/wp-content/uploads/MAY-FS600-Fusion-Splicer-OPM-and-VFL.jpg)
![MAY-FS600 Fusion Splicer - Tool Box Packing](https://www.maytelecom.com.cn/wp-content/uploads/MAY-FS600-Fusion-Splicer-Tool-Box-Packing.jpg)

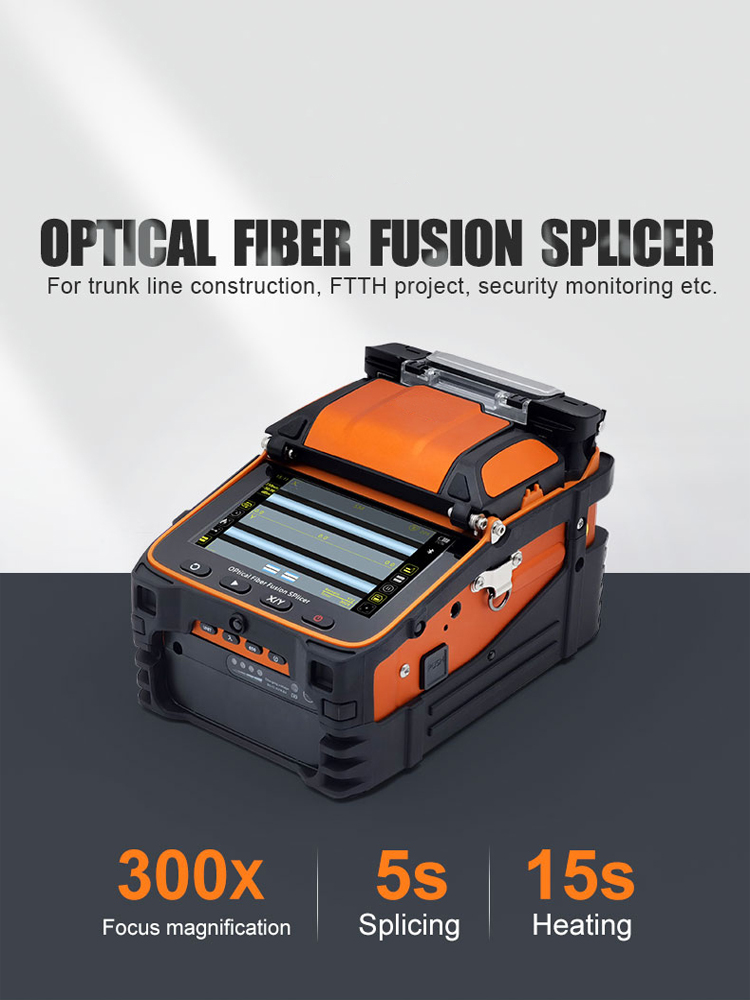

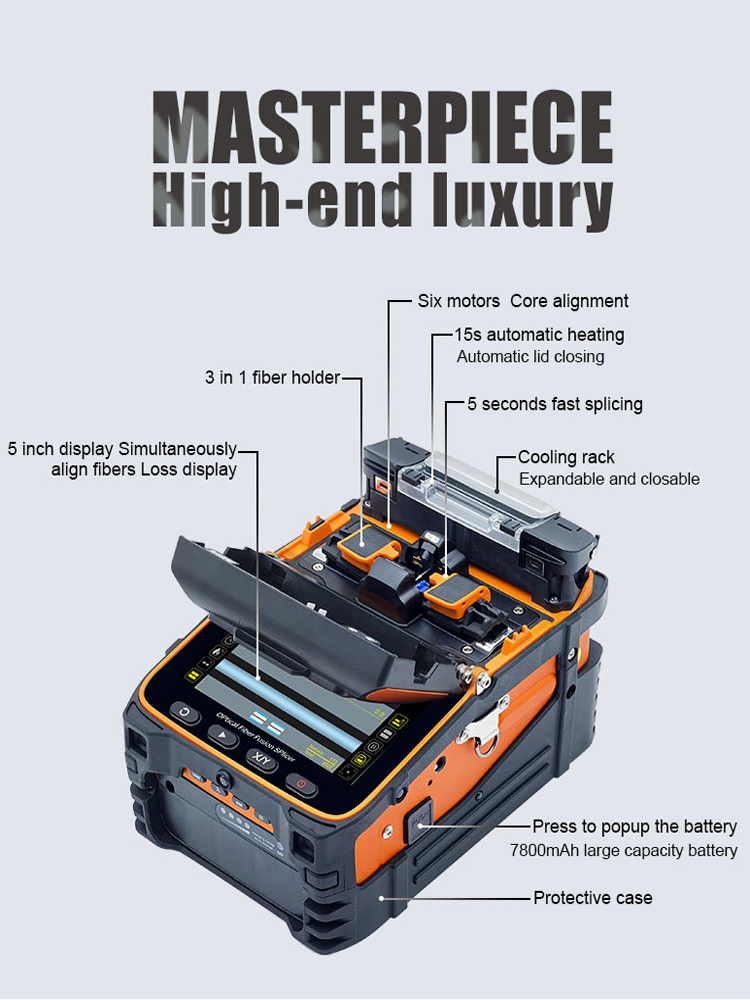

MAY-FS600 Single Fiber Fusion Splicer applies latest core alignment technology with auto focus and six motors.
It is fully qualified for backbone network, FTTH, security monitoring and other fiber optic cable splicing projects.
It uses industrial quad-core CPU with fast response. It is currently one of the fastest fiber optic fusion splicer in the market.

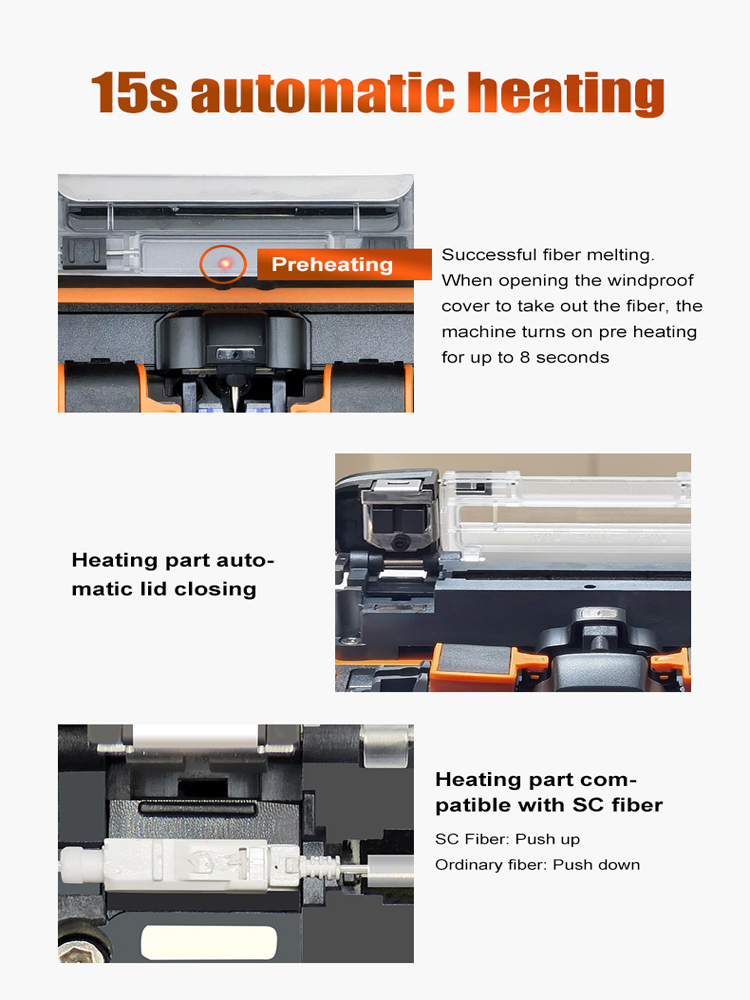

With 5-inch 800X480 high-resolution screen, the operation is simple and intuitive; Up to 300 times focus magnifications makes it very easy to observe the fiber with naked eyes. 5 seconds core alignment splicing and 15 seconds heating make the working efficiency increase by 50%, compared to ordinary fusion splicers.
MAY-FS600 Single Fiber Fusion Splicer integrates the functions of VFL and OPM. Large-capacity lithium battery can be heated by fusion about 260 cores, outstanding performance in harsh environments such as high altitudes, deserts, and extreme cold.

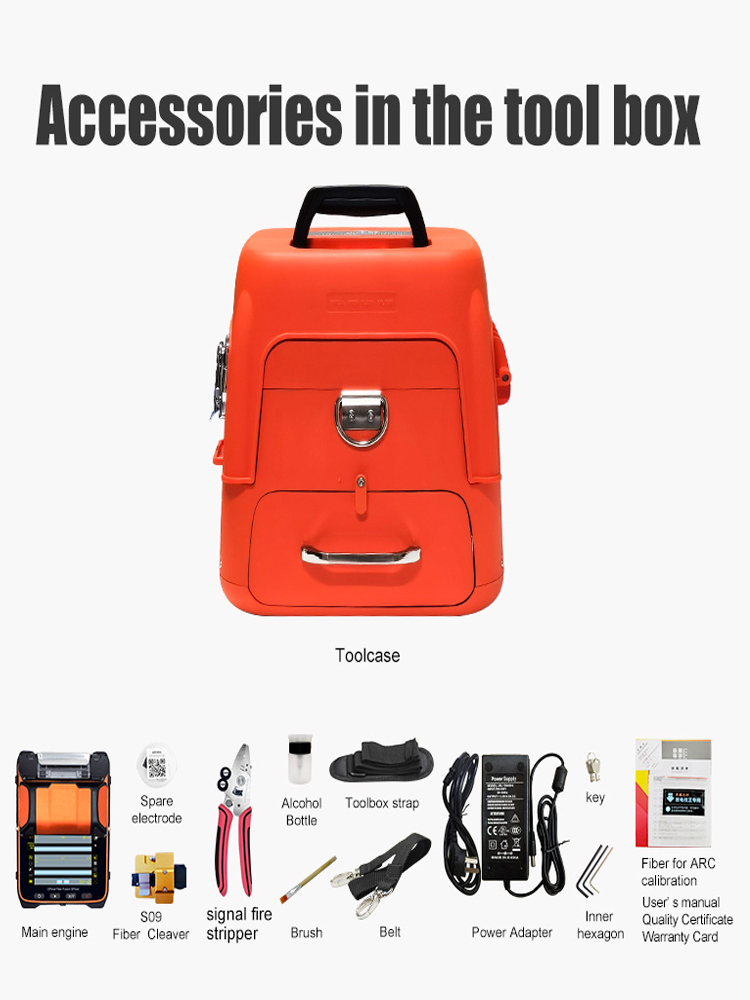

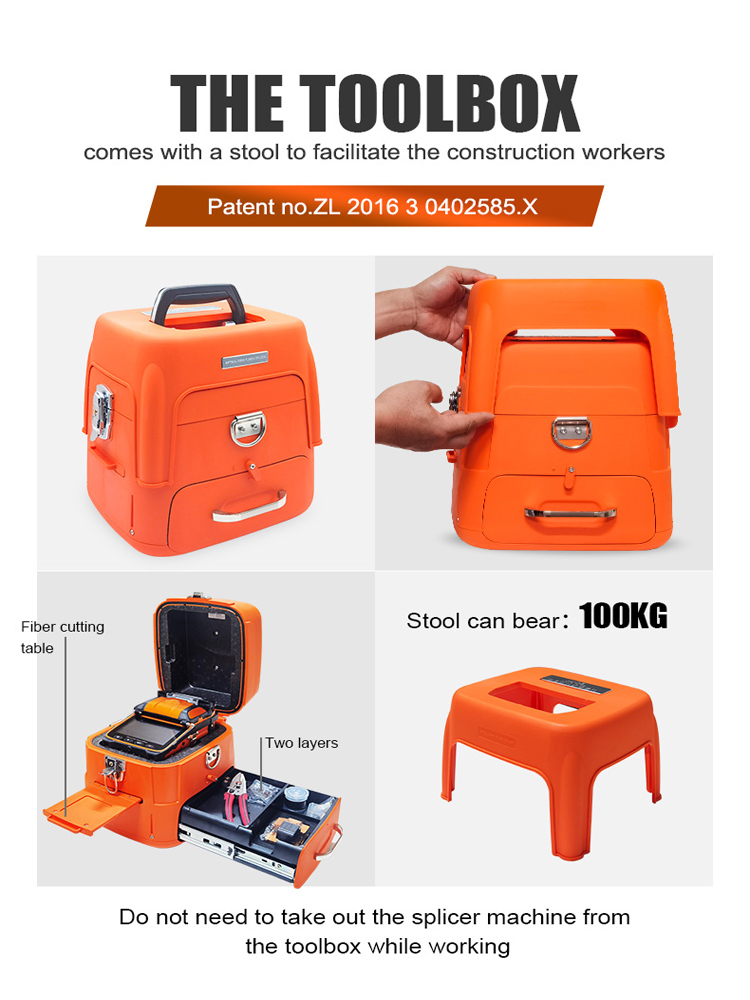

The toolbox is compact and durable, and with unique bench design. The design of operating platform makes it user-friendly; With unique lighting design, it is convenient for night construction or repair.
Screen brightness is adjustable and it is convenient for outdoor sunshine environment operation.
The core parts use imported brands, and the main body of fusion splicer uses aviation metal material.
With the combination of advanced technology and design, the new generation of fiber optic fusion splicer will bring you a reliable and comfortable user experience.
![MAY-FS600 Fusion Splicer - 5s Splicing and 15s Heating](https://www.maytelecom.com.cn/wp-content/uploads/MAY-FS600-Fusion-Splicer-5s-Splicing-and-15s-Heating.jpg)
![MAY-FS600 Fusion Splicer - Masterpiece](https://www.maytelecom.com.cn/wp-content/uploads/MAY-FS600-Fusion-Splicer-Masterpiece.jpg)

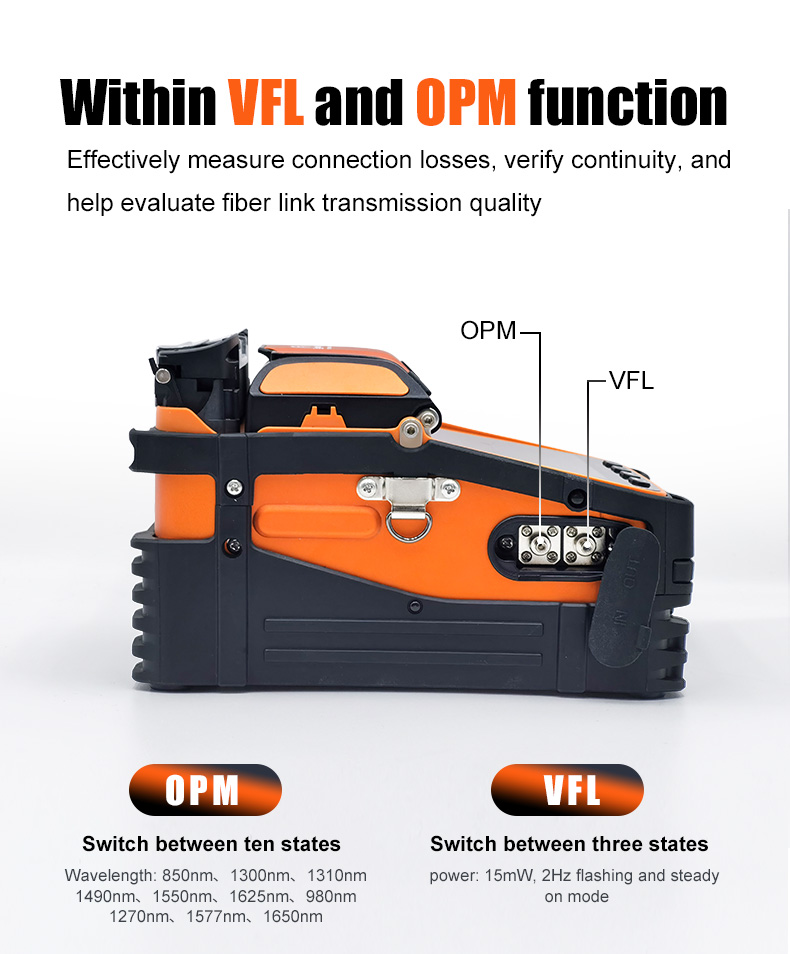

Inbuilt Optical Power Meter and VFL:
![MAY-FS600 Optical Fiber Fusion Splicer - With VFL and OPM with 10 Wavelengths](https://www.maytelecom.com.cn/wp-content/uploads/MAY-FS600-Optical-Fiber-Fusion-Splicer-With-VFL-and-OPM-with-10-Wavelengths.jpg)
![MAY-FS600 Fusion Splicer - Industrial Quad-core Chip CPU](https://www.maytelecom.com.cn/wp-content/uploads/MAY-FS600-Fusion-Splicer-Industrial-Quad-core-Chip-CPU.jpg)
![MAY-FS600 Fusion Splicer - 3 IN 1 FIBER HOLDER](https://www.maytelecom.com.cn/wp-content/uploads/MAY-FS600-Fusion-Splicer-3-IN-1-FIBER-HOLDER.jpg)
![MAY-FS600 Fusion Splicer - 7800mAh lithium battery](https://www.maytelecom.com.cn/wp-content/uploads/MAY-FS600-Fusion-Splicer-7800mAh-lithium-battery.jpg)
![MAY-FS600 Fusion Splicer - Charging method II](https://www.maytelecom.com.cn/wp-content/uploads/MAY-FS600-Fusion-Splicer-Charging-method-II.jpg)
![MAY-FS600 Fusion Splicer - 10 languages to switch freely](https://www.maytelecom.com.cn/wp-content/uploads/MAY-FS600-Fusion-Splicer-10-languages-to-switch-freely.jpg)
![MAY-FS600 Fusion Splicer - 15s automatic heating](https://www.maytelecom.com.cn/wp-content/uploads/MAY-FS600-Fusion-Splicer-15s-automatic-heating.jpg)

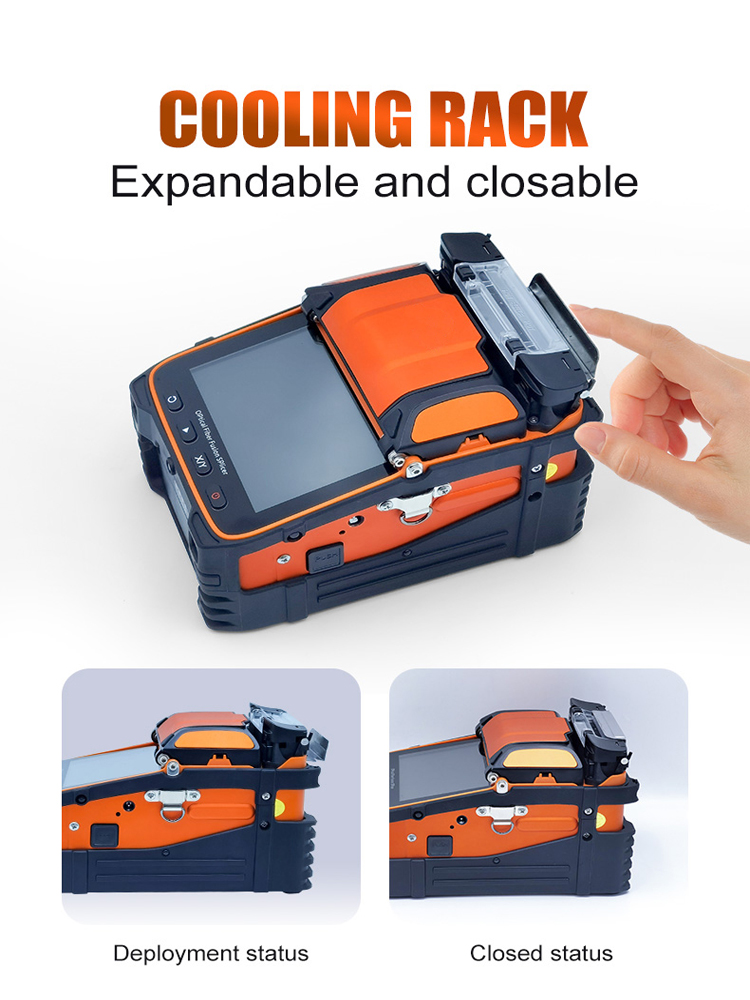

![MAY-FS600 Fusion Splicer - Cooling Rack](https://www.maytelecom.com.cn/wp-content/uploads/MAY-FS600-Fusion-Splicer-Cooling-Rack.jpg)
![MAY-FS600 Fusion Splicer - Dust prevention fall prevention shock prevention](https://www.maytelecom.com.cn/wp-content/uploads/MAY-FS600-Fusion-Splicer-Dust-prevention-fall-prevention-shock-prevention.jpg)
![MAY-FS600 Fusion Splicer - Outstanding quality without fear of challenges](https://www.maytelecom.com.cn/wp-content/uploads/MAY-FS600-Fusion-Splicer-Outstanding-quality-without-fear-of-challenges.jpg)
![MAY-FS600 Fusion Splicer - The toolbox](https://www.maytelecom.com.cn/wp-content/uploads/MAY-FS600-Fusion-Splicer-The-toolbox.jpg)
![MAY-FS600 Fusion Splicer - Standard Accessories](https://www.maytelecom.com.cn/wp-content/uploads/MAY-FS600-Fusion-Splicer-Standard-Accessories.jpg)

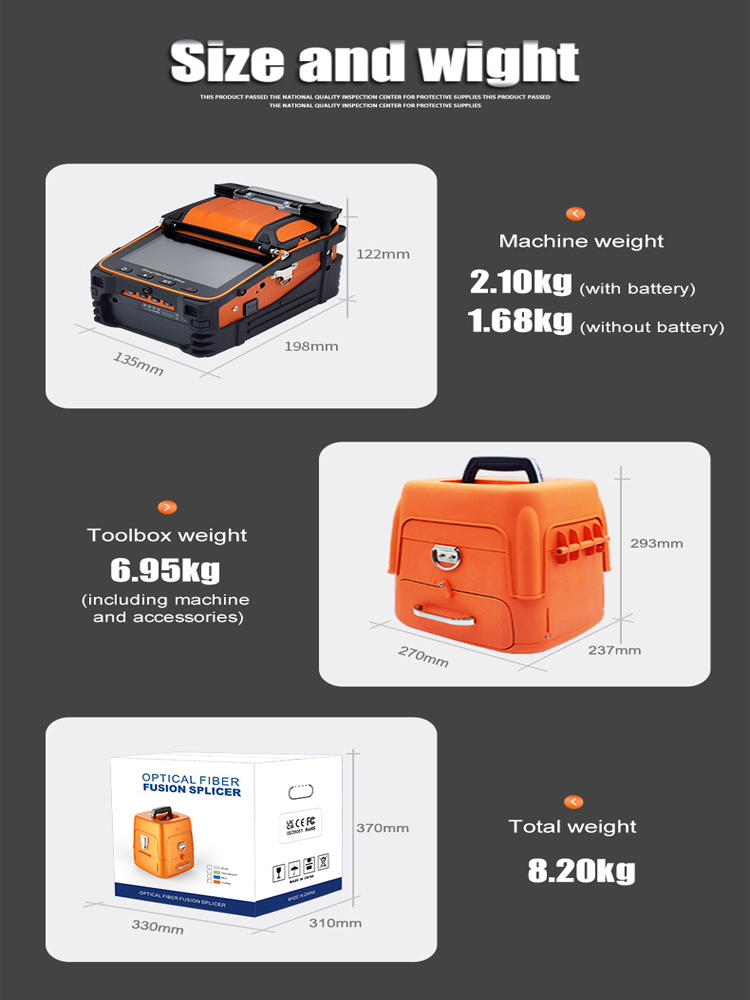

![MAY-FS600 Fusion Splicer - Size and weight](https://www.maytelecom.com.cn/wp-content/uploads/MAY-FS600-Fusion-Splicer-Size-and-weight.jpg)
![MAY-FS600 Fusion Splicer - Support bluetooth](https://www.maytelecom.com.cn/wp-content/uploads/MAY-FS600-Fusion-Splicer-Support-bluetooth.jpg)
![MAY-FS600 Fusion Splicer - Function configuration](https://www.maytelecom.com.cn/wp-content/uploads/MAY-FS600-Fusion-Splicer-Function-configuration.jpg)
![MAY-FS600 Fusion Splicer - Heating time](https://www.maytelecom.com.cn/wp-content/uploads/MAY-FS600-Fusion-Splicer-Heating-time.jpg)
![MAY-FS600 Fusion Splicer - Splicing record](https://www.maytelecom.com.cn/wp-content/uploads/MAY-FS600-Fusion-Splicer-Splicing-record.jpg)
Fiber Alignment | Core alignment, cladding alignment |
Motor Number | 6 motors |
Splicing Time | 5S |

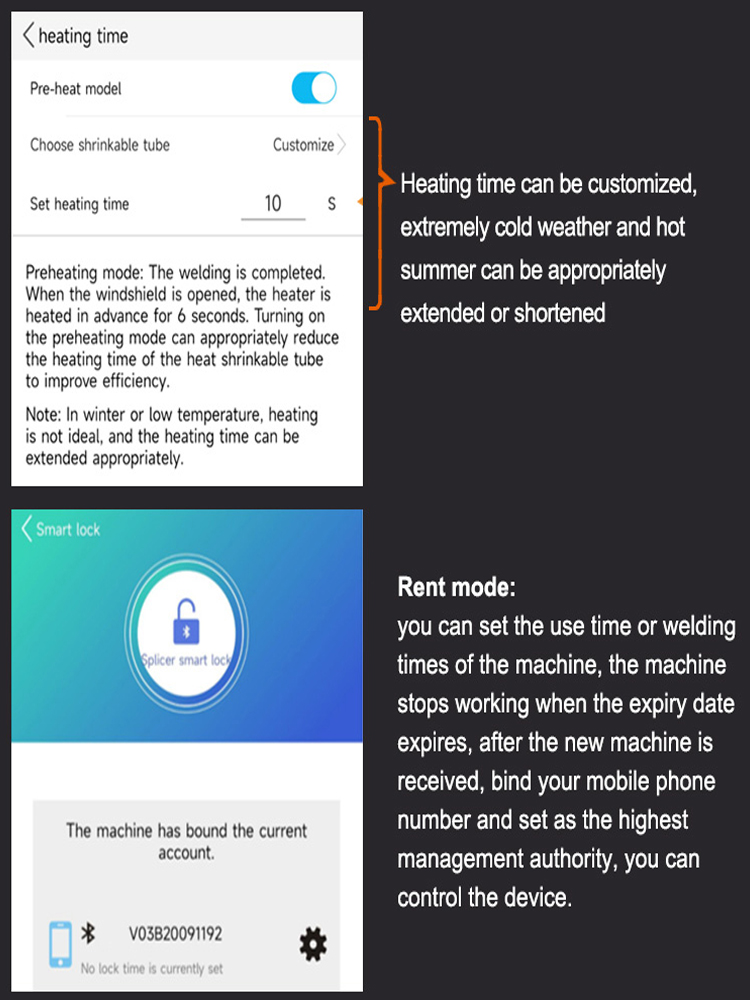

Heating Time | 15S, can be customized according to the external environment |
Applicable Fibers | Single mode fiber (SMF/G.652, BIF/G.657); Suitable for single mode, multi-mode, bare fiber, tail fiber, drop cable, jumper, invisible fiber fusion |
Cladding Diameter | 80~150um |

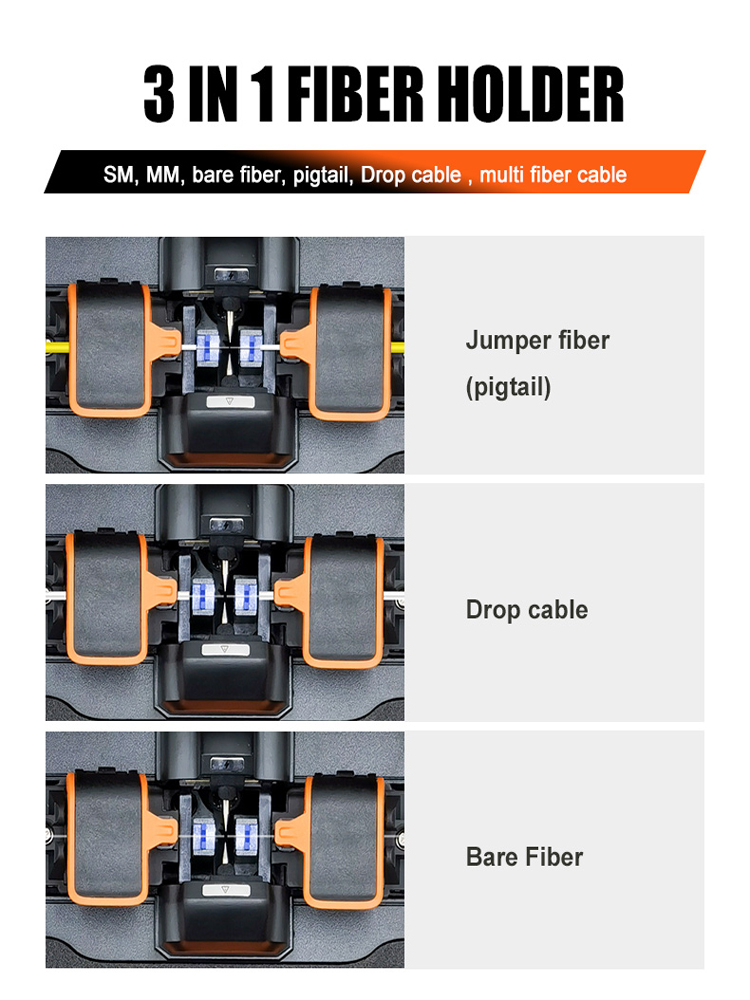

Fiber Holders | 3-in-1 fiber holder, 250um/900um/2mm/3mm/2*3mm flat drop cable |
Splice Loss | 0.02dB (SM), 0.01dB (MM), 0.04dB (DS), 0.04dB (NZDS) |
Splice Mode | Automatic focus core alignment, conventional/high precision splicing |
Splice Method | Automatic, semi-automatic |
Optical Power Meter | Wavelength: 850/1300/1310/1490/1550/1625/980/1270/1577/1650nm, Measuring Range: -50~+26dBm, Resolution: <0.3dB (-50dbm ~+3dBm range) |
VFL | 15mW, CW/2Hz |

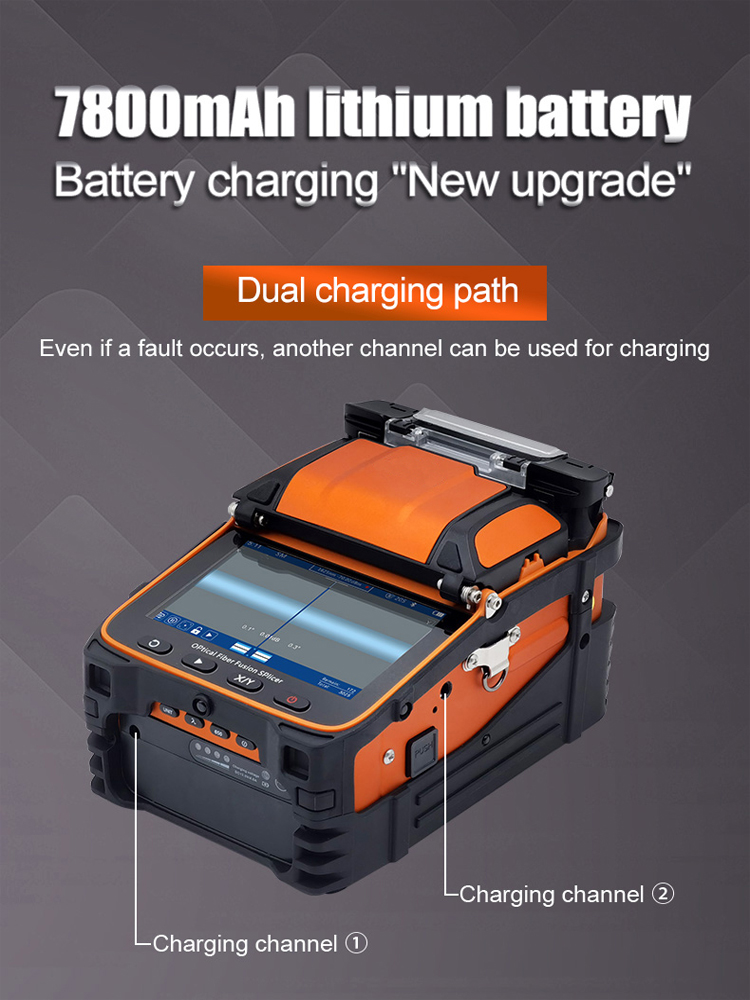

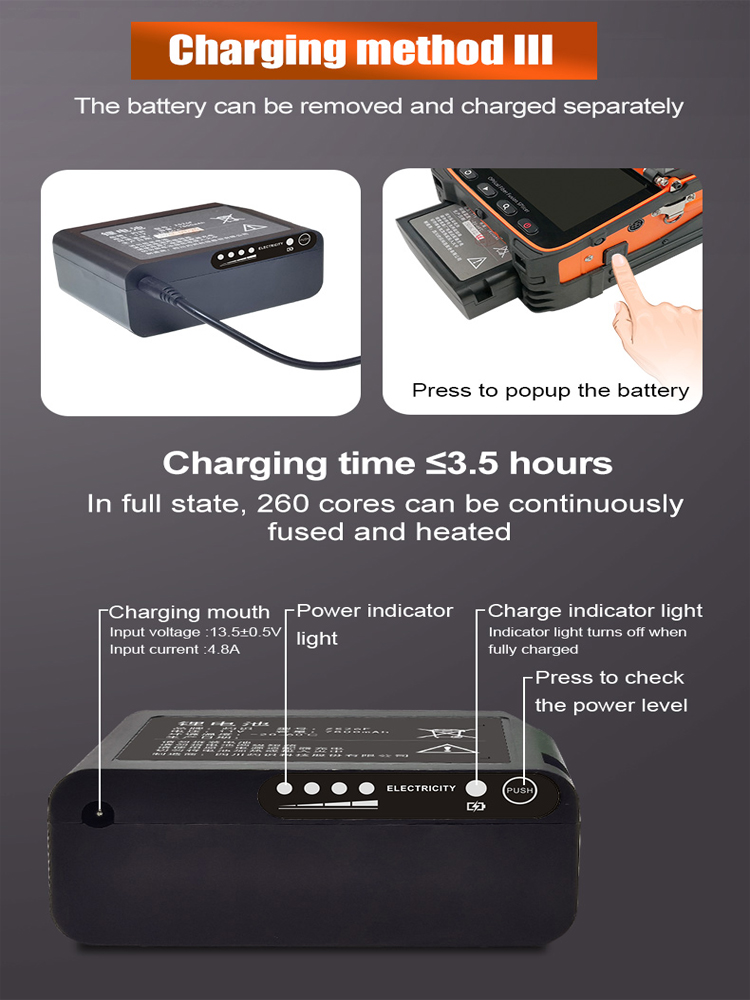

Battery Capacity | 7800mAh high capacity lithium battery, charging time ≤3.5 hours, continuous splicing and heating about 260 cores |
Magnification | 300 for X or Y view, 150 for X or Y view |
Fiber Diameter | Cladding diameter: 80~150um, Coating diameter: 100~1000um |
Fiber Cleave Length | Coating less than 250um: 8~16mm; Coating of 250~1000um: 16mm |
Protective Sleeve | 25/40/50/60mm |
Tension Test | 2N |
Screen | 5 inch TFT color display |
Boot Time | 1s, boot can enter the working mode |

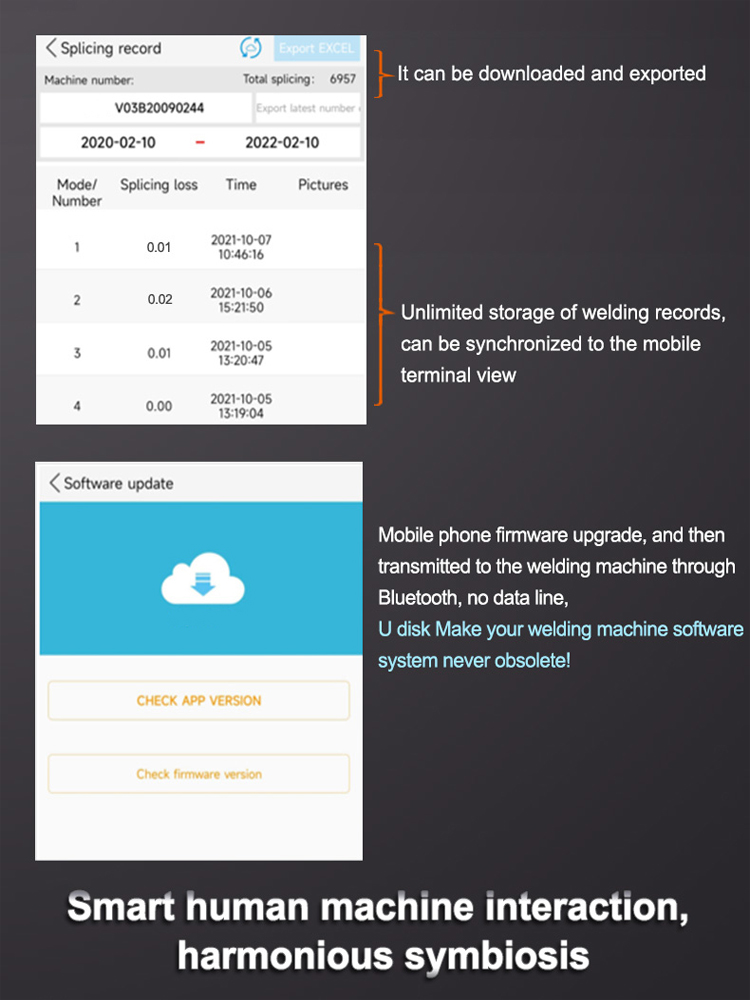

Data Storage | Unlimited, machine storage is 1,000 groups and excess datas can be stored in the server, which can export data. |
Wireless Communication | Based on Bluetooth 4.2 protocol standard, working band is 2.4GHz, maximum transmission distance is 60m. |
Software Update | Mobile phone APP internet update, enable Bluetooth synchronization upgrade machine software |

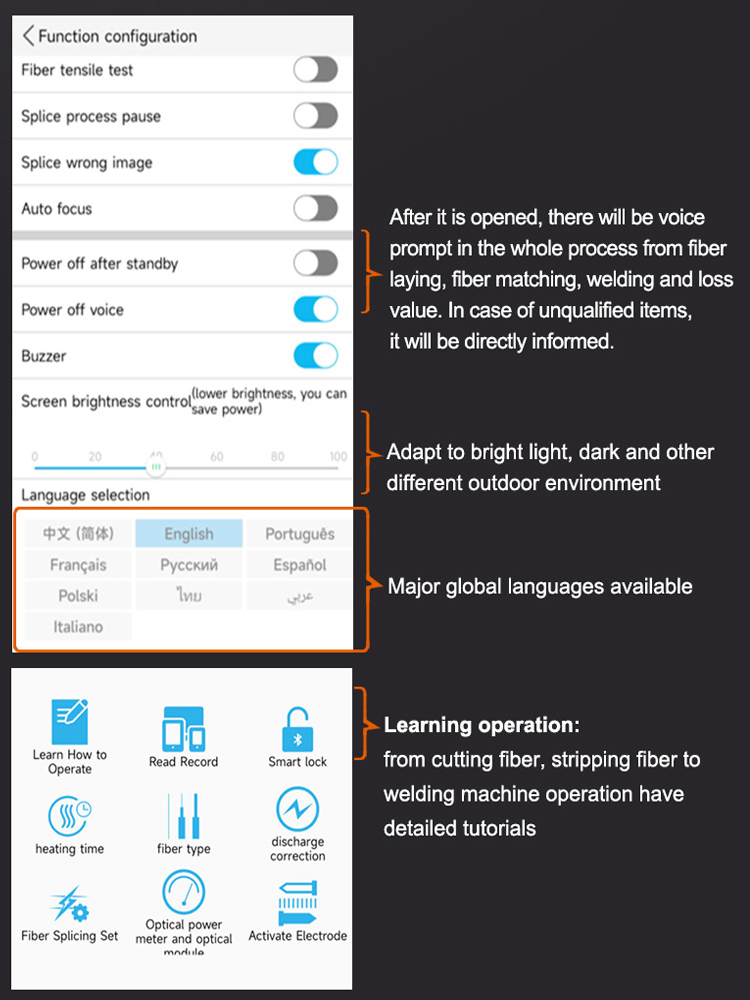

Management Function | The equipment owner can be bound as the highest authority, and can remotely view the splicing records, splicing time, loss, etc. Through the mobile phone APP. The number of splicing times or working time of the equipment can be set. The manager can effectively manage a single or multiple equipment. |
Return Loss | 60dB |

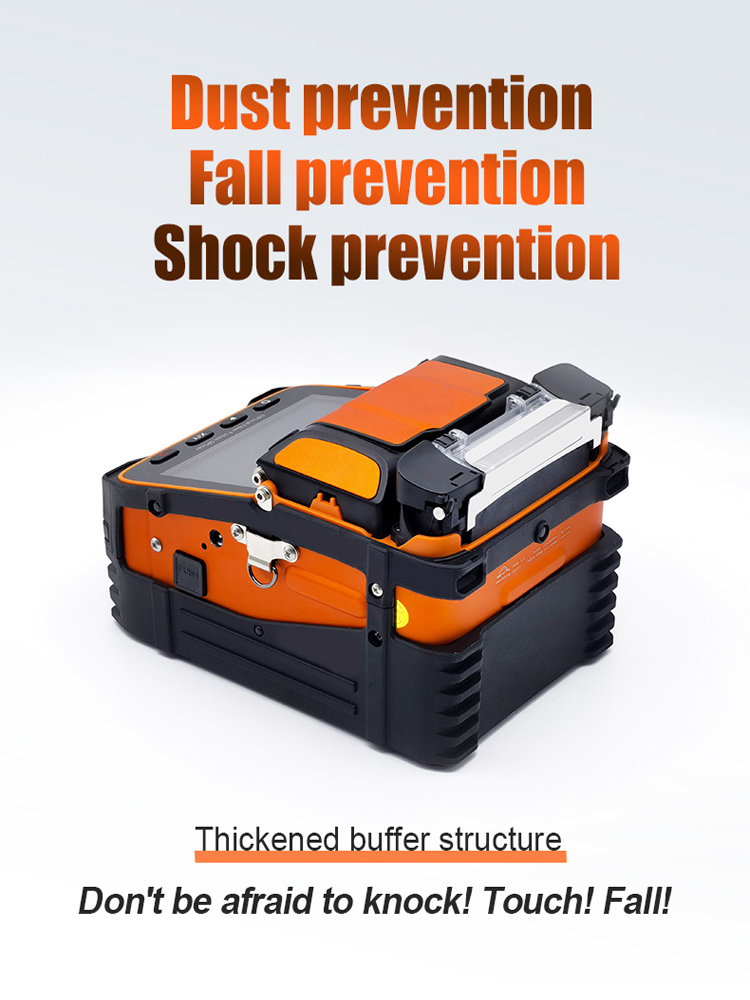

Protection | Waterproof, dustproof and shock-resistant |
Power Supply | Input: 100~240VAC 50/60Hz, output 13.5VDC, 4.8A, the current power mode can be identified, real-time monitoring of current battery level |
Operation Conditions | -15~+50℃, 0~95%RH (humidity), 0~5,000m (altitude), max. Wind speed: ≤15m/s |

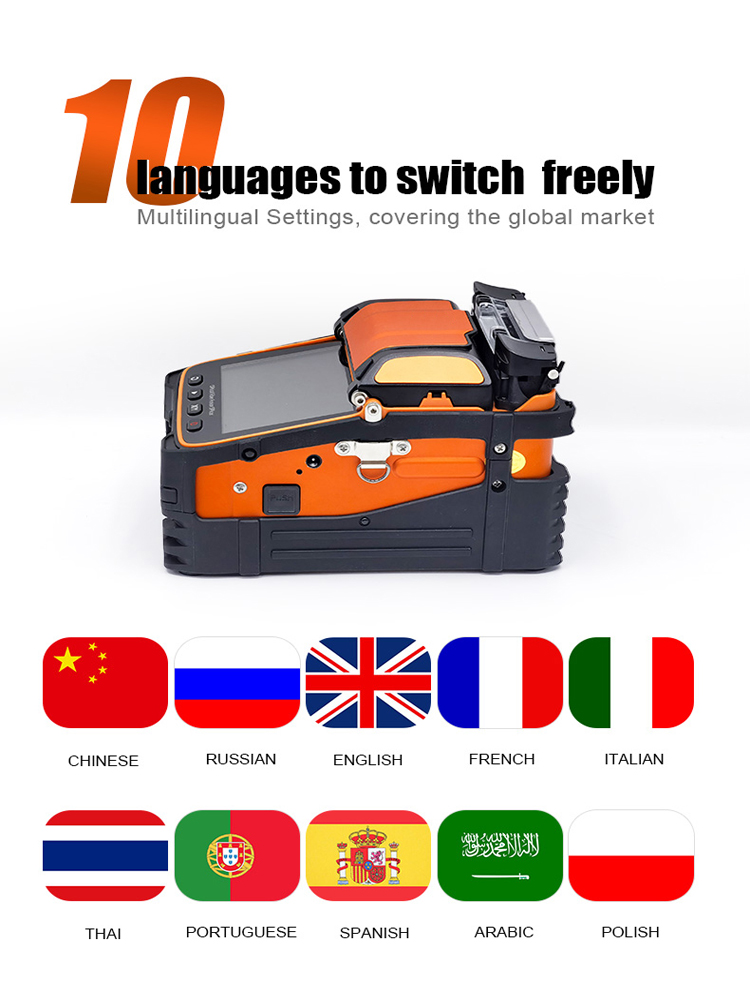

Language Setting | English, Chinese, French, Russian, Italian, Portuguese, Polish, Spanish, Thai, Arabic |
Warranty:
Three years warranty, but these circumstances are not within the scope of this provision.
Except for the cleaver, fiber stripper, fiber holders and other tools whose life depends on the frequency of use and the use of the environment. Also electrodes are consumption material which are not in the warranty.
Battery and power adapter are warranty for one year, it is in free warranty where it is damaged or can not be charged in one year.
