Bare Fiber Reel SM G.652D Fiber 30km

$276.00

SKU: 10136 Categories: ,

Specification:

Characteristics Conditions Specified Values Units
Optical Characteristics:
Attenuation 1310nm ≤0.34 dB/km
1383nm ≤0.34 dB/km
1550nm ≤0.20 dB/km
1625nm ≤0.24 dB/km
Attenuation vs. Wavelength

Max. a Difference

1285~1330nm ≤0.03 dB/km
1525~1575nm ≤0.02 dB/km
Dispersion Coefficient 1285~1340nm ≥-3.4  ≤3.4 ps/nm·km
1550nm ≤18 ps/nm·km
1625nm ≤22 ps/nm·km
Zero Dispersion Wavelength 1312±12 nm
Zero Dispersion Slope ≤0.091 ps/nm2·km
Typical Value 0.086 ps/nm2·km
PMD Maximum Individual Fibre ≤0.2 ps/
Link Design Value (M=20, Q=0.01%) ≤0.1 ps/
Typical Value 0.04 ps/
Cable Cutoff Wavelength ≤1260 nm
Mode Field Diameter (MFD) 1310nm 8.8~9.6 um
1550nm 9.9~10.9 um
Effective Group Index of Refraction 1310nm 1.466
1550nm 1.467
Point Discontinuities 1310nm ≤0.05 dB
1550nm ≤0.05 dB
Geometrical Characteristics:
Cladding Diameter 125.0±1.0 um
Cladding Non-circularity ≤1.0 %
Coating Diameter 245±7 um
Coating-Cladding Concentricity Error ≤12.0 um
Coating Non-circularity ≤6.0 %
Core-cladding Concentricity Error ≤0.6 um
Curl (Radius) ≥4 m
Delivery Length 2.1 to 50.4 Km/reel
Enironmental Characteristics: (1310nm, 1550nm & 1625nm)
Temperature Dependence Induced Attenuation at -60°C to +85°C ≤0.05 dB/km
Temperatuere-humidity Cycling Induced Attenuation at -10°C to +85°C, 98% RH ≤0.05 dB/km
Watersoak Dependence Induced Attenuation at 23°C, for 30 days ≤0.05 dB/km
Damp Heat Dependence Induced Attenuation at 85°C and 85% RH, for 30 days ≤0.05 dB/km
Dry Heat Aging at 85°C ≤0.05 dB/km
Mechanical Specification:
Proof Test Off line ≥9.0 N
≥1.0 %
≥100 kpsi
Macro-bend Induced Attenuation 1 turn around a mandrel of 32mm diameter 1550nm ≤0.05 dB
100 turns around a mandrel of 50mm diameter 1310nm & 1550nm ≤0.05 dB
100 turns around a mandrel of 60mm diameter 1625nm ≤0.05 dB
Coating Strip Force Typical Average Force 1.7 N
Peak Force ≥1.3  ≤8.9 N
Dynamic Stress Corrosion Susceptibility Parameter ≥20

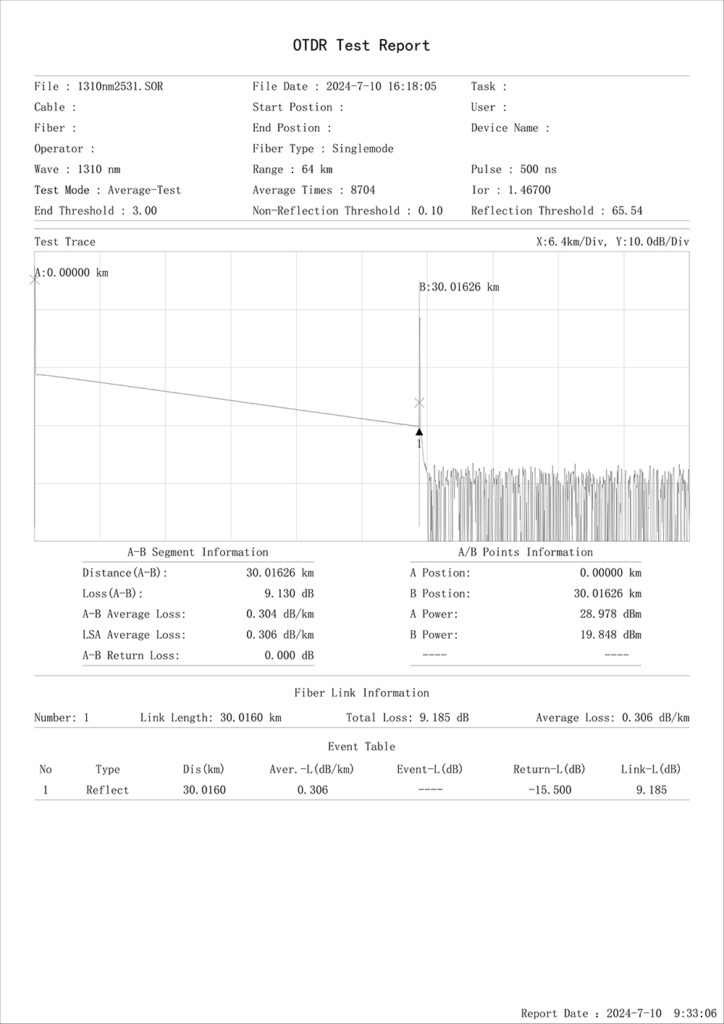

30km SM G652D Fiber - OTDR Test Report - 1310nm30km SM G652D Fiber - OTDR Test Report - 1550nm

Weight 4 kg
Dimensions 35 × 30 × 22 cm
Connector 1:

No Connector, SC/UPC, SC/APC, FC/UPC, FC/APC, LC/UPC, LC/APC

Connector 2:

No Connector, SC/UPC, SC/APC, FC/UPC, FC/APC, LC/UPC, LC/APC
