2.5G SFP Transceivers

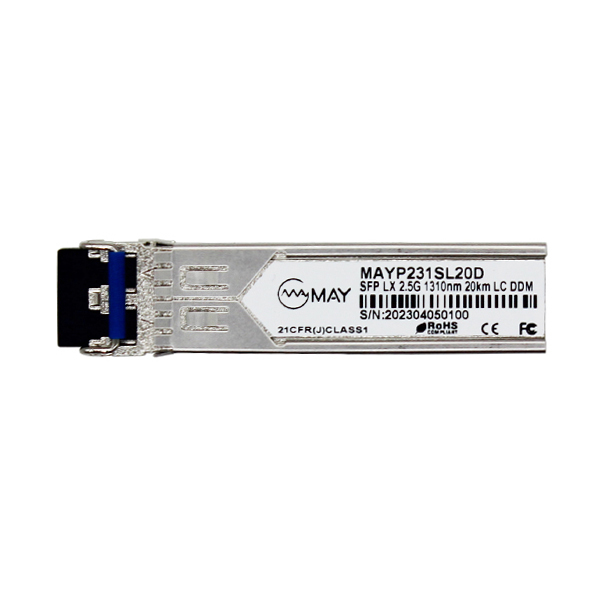

MAYP231SL20D SFP LX 2.5G 1310nm 20km LC DDM

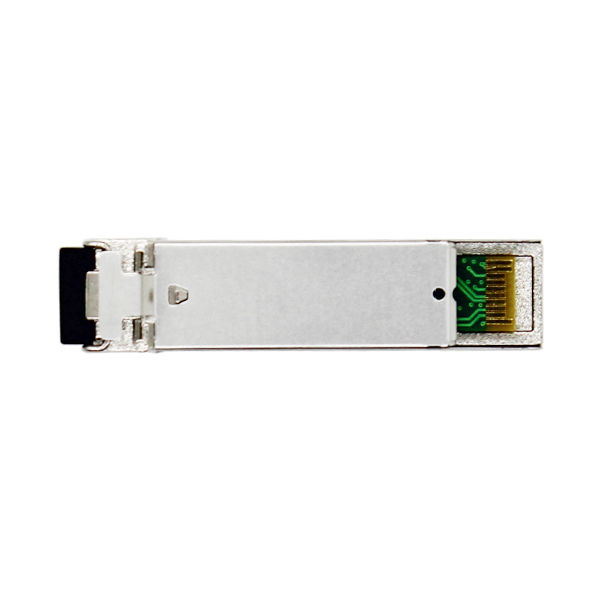

MAYP231SL20D SFP LX 2.5G 1310nm 20km LC DDM - Back View
MAYP231SL20D SFP LX 2.5G 1310nm 20km LC DDM Transceiver

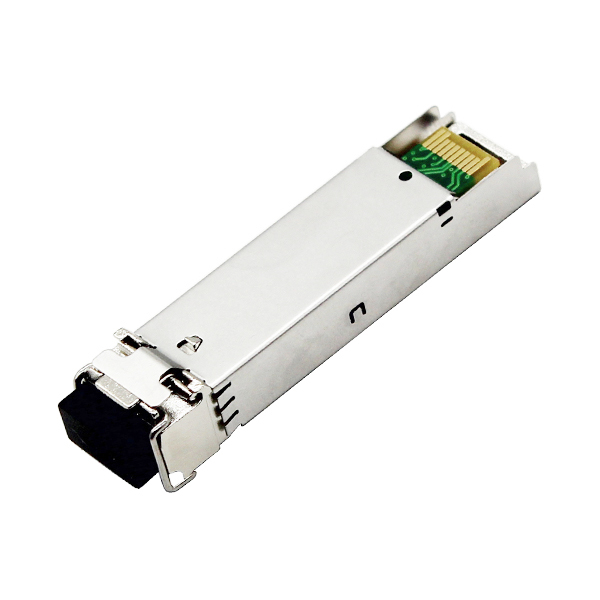

MAYP231SL20D SFP LX 2.5G 1310nm 20km LC DDM Transceiver - Back View
Package Part No. Data Rate Wavelength (nm) Distance Source Output Power (dBm) Sensitivity (dBm) Connector
SFP SX MAYP285ML03D 2.5G 850 300m VCSEL / PIN -10~-3 <-18 LC
SFP LX MAYP231ML2D 2.5G 1310 2KM FP / PIN -9~-3 <-18 LC
SFP LX MAYP231SL10D 2.5G 1310 10KM DFB / PIN -6~0 <-18 LC
SFP LX MAYP231SL20D 2.5G 1310 20KM DFB / PIN -6~0 <-18 LC
SFP EX MAYP231SL40D 2.5G 1310 40KM DFB / PIN -5~3 <-20 LC
SFP EX MAYP255SL40D 2.5G 1550 40KM DFB / PIN -5~3 <-20 LC
SFP ZX MAYP255SL80D 2.5G 1550 80KM DFB / APD -2~3 <-27 LC
SFP ZX MAYP255SL100D 2.5G 1550 100KM DFB / APD 0~5 <-27 LC
SFP ZX MAYP255SL120D 2.5G 1550 120KM DFB / APD 0~6 <-29 LC
SFP BIDI MAYP235SL20D 2.5G Tx1310/Rx1550 20KM DFB / PIN -6~0 <-18 LC
SFP BIDI MAYP253SL20D 2.5G Tx1550/Rx1310 20KM DFB / PIN -6~0 <-18 LC
SFP BIDI MAYP245SL40D 2.5G Tx1490/Rx1550 40KM DFB / PIN -5~3 <-20 LC
SFP BIDI MAYP254SL40D 2.5G Tx1550/Rx1490 40KM DFB / PIN -5~3 <-20 LC
SFP BIDI MAYP245SL80D 2.5G Tx1490/Rx1550 80KM DFB / APD -2~3 <-27 LC
SFP BIDI MAYP254SL80D 2.5G Tx1550/Rx1490 80KM DFB / APD -2~3 <-27 LC
SFP BIDI MAYP245SL100D 2.5G Tx1490/Rx1550 100KM DFB / APD 0~5 <-27 LC
SFP BIDI MAYP254SL100D 2.5G Tx1550/Rx1490 100KM DFB / APD 0~5 <-27 LC
SFP BIDI MAYP245SL120D 2.5G Tx1490/Rx1550 120KM DFB / APD 0~6 <-29 LC
SFP BIDI MAYP254SL120D 2.5G Tx1550/Rx1490 120KM DFB / APD 0~6 <-29 LC
Ordering Information:
Brand Package Data Rate Wavelength (nm) Fiber Mode Connector Distance DDM Working Temperature
MAY P: SFP 2: 2.5G 85: 850
31: 1310
55: 1550 35: Tx1310/Rx1550 53: Tx1550/Rx1310 45: Tx1490/Rx1550 54: Tx1550/Rx1490		 S: SM
M: MM		 L: LC
S: SC		 03: 300m 2: 2KM
20：20KM 40: 40KM 80: 80KM 100: 100KM 120: 120KM		 D: with DDM None: Business Type (0~70°C) I: Industrial Type (-40~85°C)
