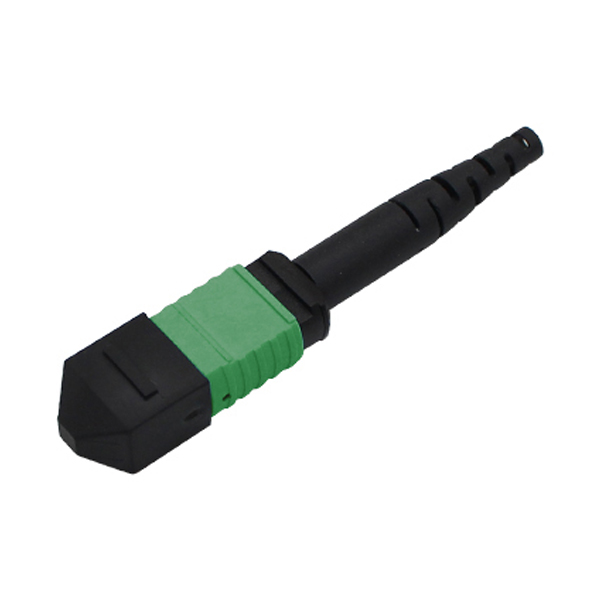

3.0mm SM MPO/APC Connector

3.0mm MPO APC SM Connector

SM MPO/APC 3.0mm

MPO Connector Flat Boot and Round Boot

 Round Boot and Flat Boot

3.0mm MPO Connector Parts

3.0mm MPO Connector Parts

3.0mm MPO Connector Length

3.0mm MPO Connector Length

3.0mm MPO Connector Twelve Colors

   Twelve Colors

Description:
MPO connector produced specially for multi-fiber ribbon cable, it use precision molded MT ferrules, together with metal guide pins and precise housing dimensions ensure fiber alignment when mating, realize high density interconnection. Compact design available to 12,16,24,32,48 fiber ribbons, cable types include bare fiber ribbon and PVC jacket ruggedized ribbon. MPO pre-termination save time and reduce the risk of damage fragile optical connectors, the plug and play system is the perfect solution for today’s optical fiber installations.

Features:

  • High precision guide pins for exact alignment
  • Reduced Insertion Loss
  • Compact design, up to 48fiber ribbons
  • Male and female available
  • High density interconnection
  • Available for single-mode(angled) and multi-mode(flat) performance
  • Operating Temperature: -40 to + 85°C

Applications:

  • CATV
  • LAN & WAN
  • Telecommunication networks
  • PON (Passive Optical Network)
  • FTTX, FTTH (Fiber to the Home)
Specifications:
Mode SM MM
Polishing APC UPC
Standard Insertion Loss ≤0.7dB ≤0.7dB
Standard Return Loss ≥55 ≥20
Low Insertion Loss ≤0.35dB ≤0.35dB
Low Return Loss ≥60 ≥30
Operating Wavelength 1310nm, 1550nm 850nm, 1300nm
Ferrule Concentricity ≤1um ≤4um
Interchangeability ≤0.2dB
Salt Spray ≤0.2dB
Repeatability ≤0.1dB (1,000 times)
High Temperature ≤0.2dB (+85°C 168 hours)
Low Temperature ≤0.2dB (-40°C 168 hours)
Temperature Cycle ≤0.2dB (-40°C~85°C 21 cycles 168 hours)
Humidity ≤0.2dB (95% 75°C 168 hours)
Durability ≥1,000 Times
Vibration ≤0.1dB (10-55Hz 1.5mm)
Falling ≤0.2dB (1.5m high, 8 times)
Operating Temp. -40°C~+85°C
Ordering Information:
Name Connector
Type Male MPO (with pin); Female MPO (no pin)
Polishing Endface UPC; APC
Fiber count 12/16/24/32/48 Cores
Mode SM; MM (OM2; OM3; OM4; OM5)
Color Blue; Orange; Green; Brown; Gray; White; Red; Black; Yellow; Fuchsia; Pink; Aqua Green
Cable Diameter 0.9mm; 3.0mm
Insertion Loss Standard Insertion Loss; Low Insertion Loss
Boot Type Flat Boot; Round Boot

For Example:
Connector male MPO/APC, 12 cores, SM, green color, 3.0mm cable, standard insertion loss; round boot.
