FC-90S One Step High Precision Fiber Cleaver
- Automatic Rotary Blade
Top View
Bottom View
With Fiber Collector
Five-in-one Fiber Holder for 250um/900um/2mm/3mm/2*1.6mm/2*3mm flat drop cable
Left Side View
Fiber Scrap Collector Side
Blade: 20 positions
Back View
Safety Lock Side View

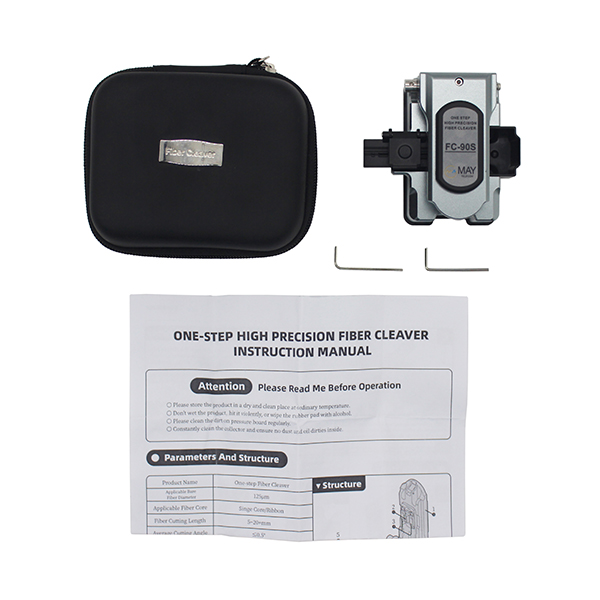

Standard Accessories
Cleaver in Cloth Box
Cloth Box
Replacement Blade – 20 Positions – 22 (Blade Diameter) *4 (Hole Diameter) *2 (Width)mm (Optional)
Plastic Packing Box for Blade (Optional)
FC-90S One Step High Precision Fiber Cleaver is a high precision single fiber cleaver. It is a reliable cleaver for fiber optic network and FTTx FTTH applications. It contains 20-position blade and performs 60,000 times single fiber cleaves. A hexagonal wrench allows you to adjust the cleaver blade flexibly.
Features:
- One step operation, when the cover is closed, the fiber is cleaved.
- Safety Lock/stopper design, lock keeps the cutting lever of the cleaver closed when not in use.
- Automatic rotary blade, the cleaving blade position changes automatically after each cleaving.
- Compact design
- High reliability
- Good cleaving performance
- 60,000 times cleave per blade
- High stability and precision
Applications:
- FTTx construction
- Optical network construction
- LAN, WAN, and Metro networks
- CATV networks
Specifications:
| Fiber Type | single fiber |
| Cladding Diameter | 125um |
| Fiber Diameter | 250um/900um/2mm/3mm/2*1.6mm/2*3mm flat drop cable |
| Cleave Angle Capability | averagely ≤0.5˚ |
| Cleave Length | 5~20mm |
| Blade Lifetime | 60,000 fiber cleaves (1,000 times*20 positions*3 blade heights) |
| Dimension | 92W*88D*53H (mm) |
| Net Weight | 293g |
| Cloth Box Size | 133W*108D*79H (mm) |
| Gross Weight | 390g |
Standard Accessories:
| Item | Name | Quantity |
| 1 | FC-90S One Step High Precision Fiber Cleaver with 1pc of Blade | 1pc |
| 2 | Fiber Collector | 1pc |
| 3 | Hexagonal Wrench | 1pc |
| 4 | User Manual | 1pc |
| 5 | Cloth Box | 1pc |
Ordering Information:
| Model | Name | Description |
| FC-90S | One Step High Precision Fiber Cleaver | with fiber collector |
| MAY-CB-20 | Replacement Blade | 20 positions |
