FC-93S One Step High Precision Fiber Cleaver

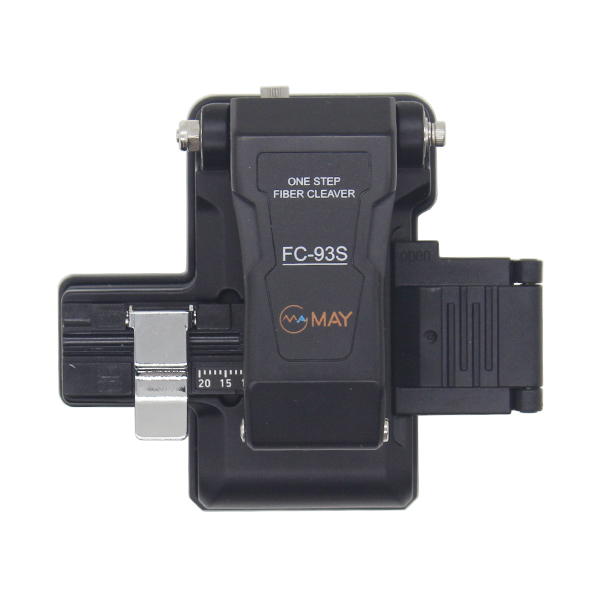

Top View

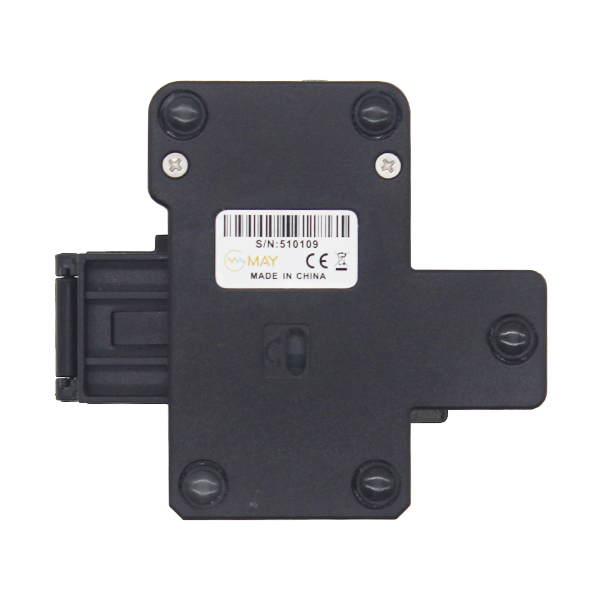

Bottom View

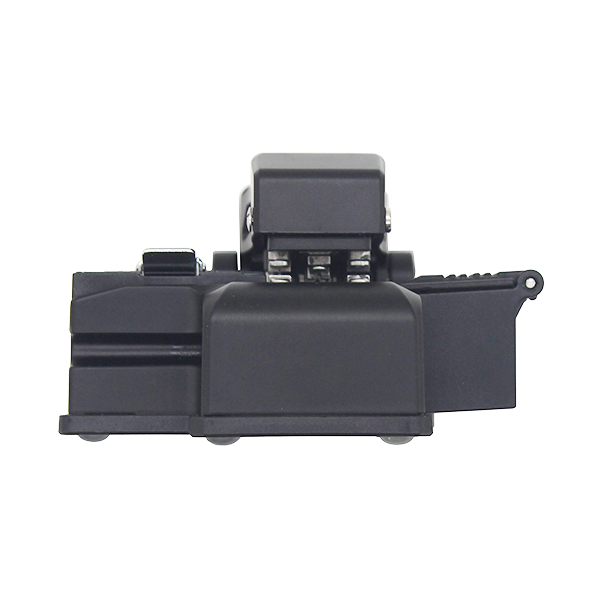

Front View

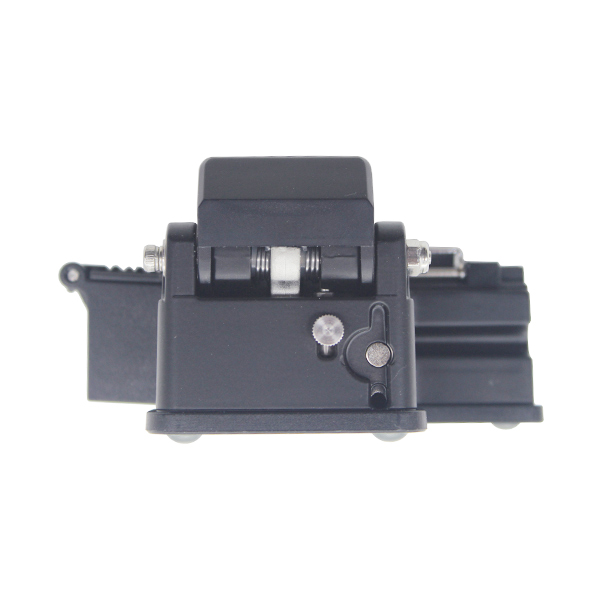

Back View

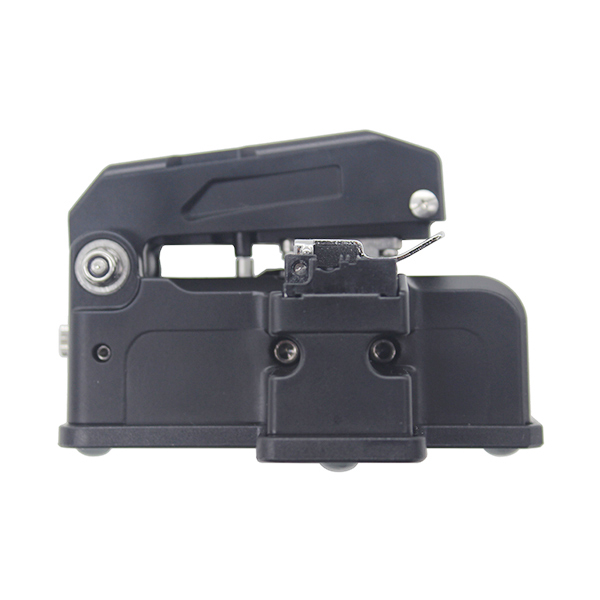

Left Side View

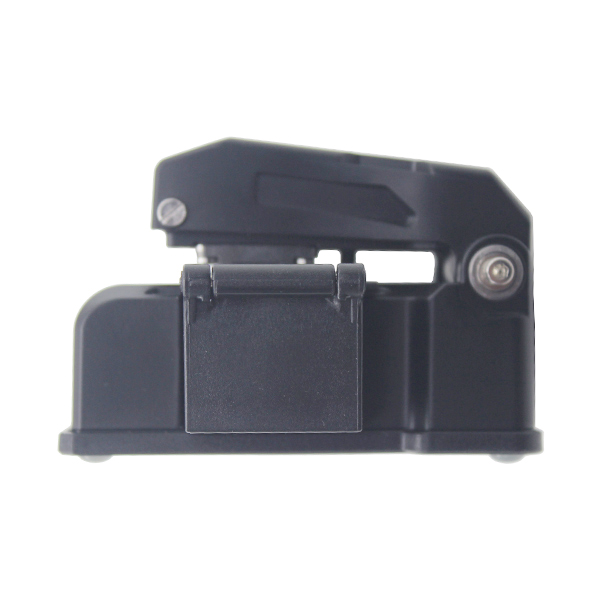

Right Side View
16-position blade
Four-in-one Fiber Holder
Cleaver in Plastic Box

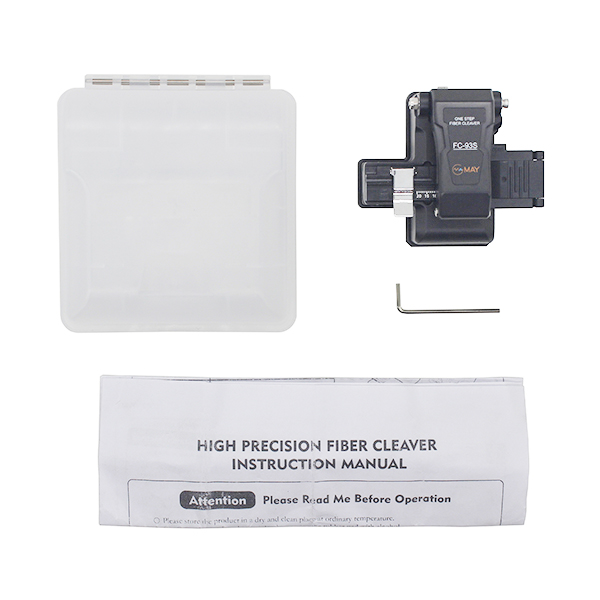

Standard Accessories
Description:
FC-93S One Step High Precision Fiber Cleaver is a high precision single fiber cleaver. It is a reliable cleaver for fiber optic network and FTTx FTTH applications. It contains 16-position blade and performs 48000 times single fiber cleaves. A hexagonal wrench allows you to adjust the cleaver blade flexibly.
Features:
- One step operation, when the cover is closed, the fiber is cleaved.
- Safety Lock/stopper design, lock keeps the cutting lever of the cleaver closed when not in use.
- Compact design
- High reliability
- Good cleaving performance
- 48,000 times cleave per blade
- High stability and precision
Applications:
- FTTx construction
- Optical network construction
- LAN, WAN, and Metro networks
- CATV networks
Specifications:
| Fiber Type | single fiber |
| Cladding Diameter | 125um |
| Fiber Diameter | 250um/900um/2mm/3mm/2*3mm flat drop cable |
| Cleave Angle Capability | averagely ≤0.8˚ |
| Cleave Length | 10~20mm (Visible scale), 5~20mm (Estimable) |
| Blade Life | ≥48,000 times (1000 times*16 positions*3 adjustable height) |
| Dimension | 77W*85D*52H (mm) |
| Net Weight | about 200g |
| Plastic Box Size | 110W*120D*62H (mm) |
| Gross Weight | 320g |
Standard Accessories:
| Item | Name | Quantity |
| 1 | FC-93S One Step High Precision Fiber Cleaver with 1pc of Blade | 1pc |
| 2 | Fiber Collector | 1pc |
| 3 | Hexagonal Wrench | 1pc |
| 4 | User Manual | 1pc |
| 5 | Plastic Box | 1pc |
