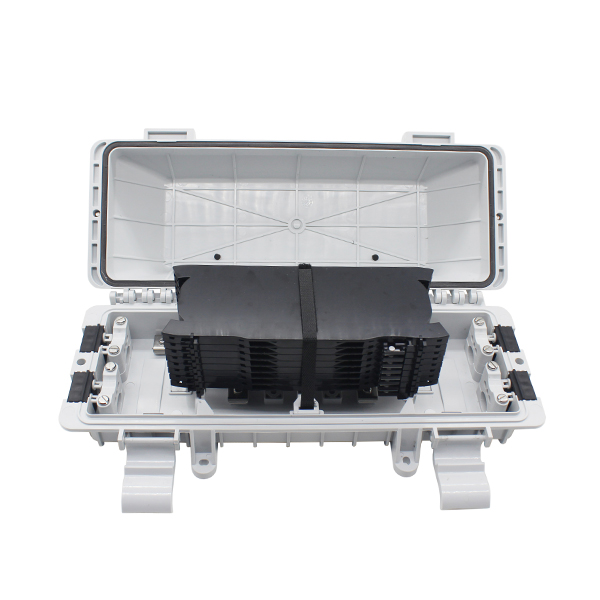

FOSC-3017 Inline Type 4 Port Wall-mounted 128 Fibers Fiber Optic Splice Closure

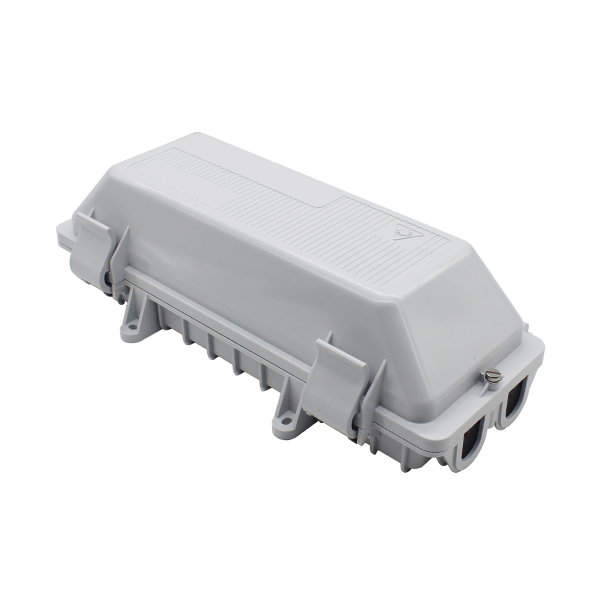

FOSC-3017 Inline Type 4 Port Wall-mounted 128 Fibers Fiber Optic Joint Closure
FOSC-3017 Inline Type 4 Port Wall-mounted 128 Fibers Fiber Optic Splice Closure

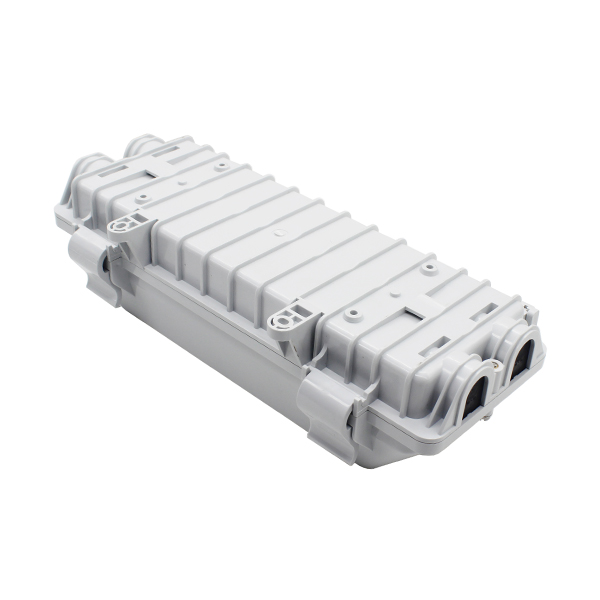

FOSC-3017 Inline Type 4 Port Wall-mounted 128 Fibers Fiber Optic Splice Closure FOSC

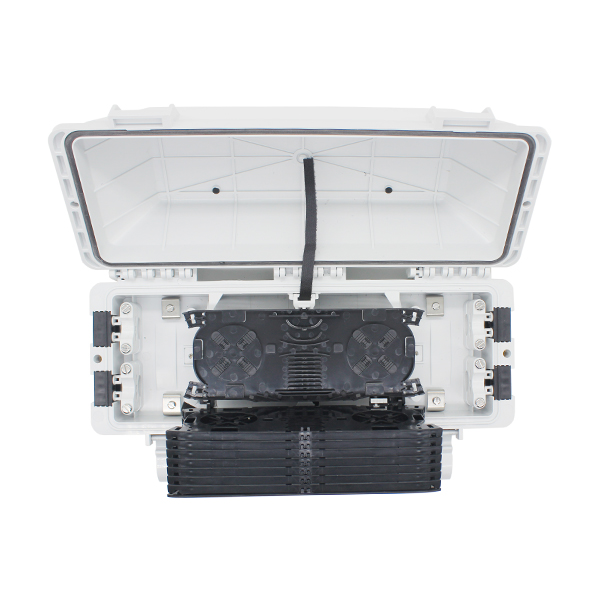

FOSC-3017 Inline Type 4 Port Wall-mounted Fiber Optic Splice Closure

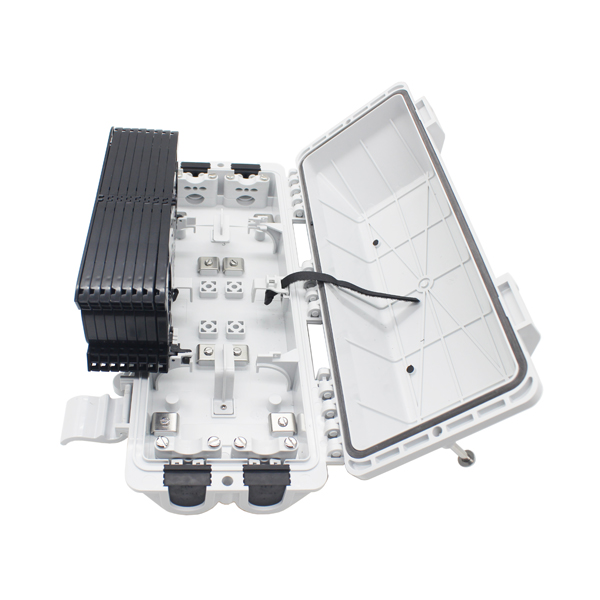

FOSC-3017 Inline Type 4 Port 128 Fibers Fiber Optic Splice Closure

Description
FOSC-3017 Inline Type 4 Port Wall-mounted 128 Fibers Fiber Optic Splice Closure is an inline splice closure with the compact dimension for small and medium capacity optical cables used in the deployment of optical distribution networks. The closure allows hosting up to 8 in-line optical cables with different diameters. It is with the fully removable splice tray system.

Feature
  • IP30 protection level for indoor installation
  • Compact, versatile and highly reliable design
  • Each splice tray accommodates 16pcs of sleeves
  • Integrated with 8 splice trays, maximum 128 fibers
  • Fiber bend radius control more than 40mm
  • The closing cover can be opened and closed without special tools
Specifications:
Model FOSC-3017
Type inline type
Number of Inlet/Outlet Ports 4 ports (2 in, 2 out)
Cable Diameter A Grommets: 14.3~16mm (2 input cables & 2 output cables), 7mm (4 input cables & 4 output cables) and 4.5×8 mm (2 input cables & 2 output cables);
B Grommet: 19mm (1 input cable & 1 output cable)
Max. Splice Capacity 128 fibers (8 trays, 16 fibers/tray)
Material PC+ABS
Color light grey
Installation Method wall mounting
Size (H*W*D) 390*175*115mm
Net Weight 1.51kg
Individual Packing Box Quantity: 1pc/box, Size: 400*200*140mm, Gross Weight: 1.8kg
