FOSC-3018 4 Port Wall-mounted 256 Fibers Fiber Optic Splice Closure

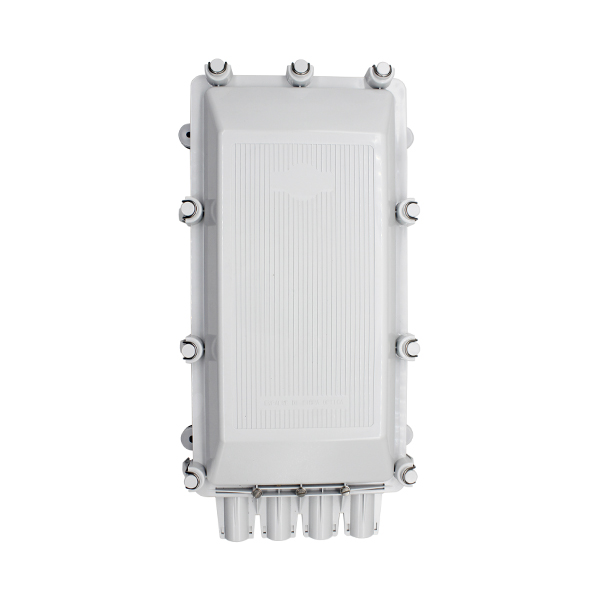

FOSC-3018 4 Port Wall-mounted 256 Fibers Fiber Optic Splice Closure Joint Enclosure

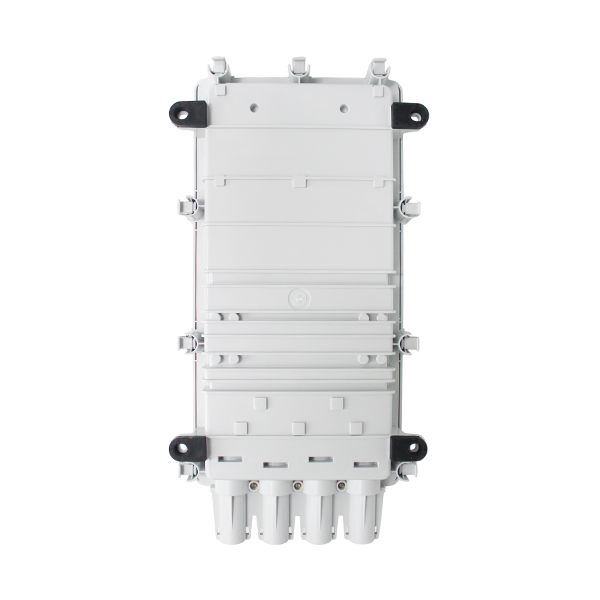

FOSC-3018 4 Port Wall-mounted 256 Fibers Fiber Optic Splice Closure - Back View
FOSC-3018 4 Port 256 Fibers Wall-mounted Fiber Optic Splice Closure

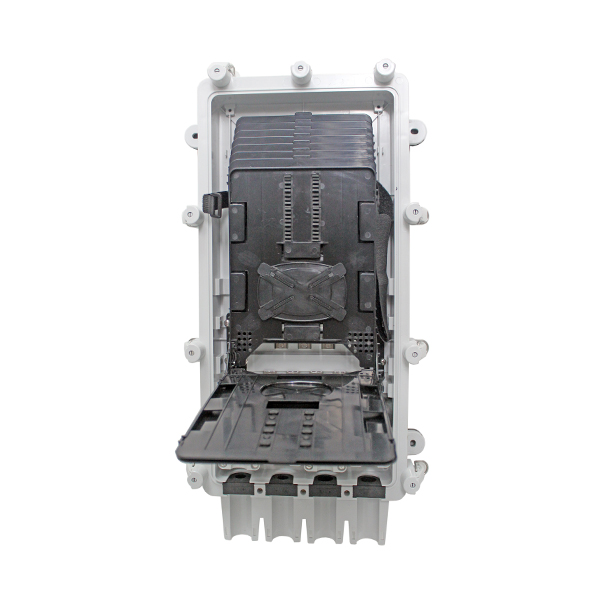

FOSC-3018 4 Port Wall-mounted 256 Fibers Fiber Optic Splice Closure - Splice Trays

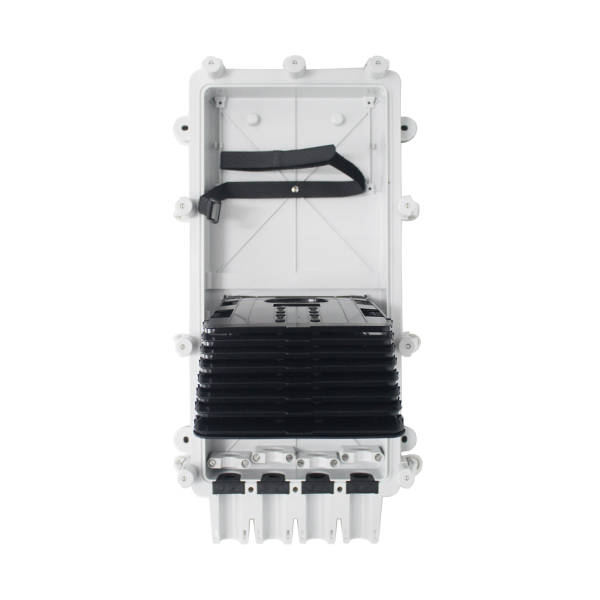

FOSC-3018 4 Port Wall-mounted 256 Fibers Fiber Optic Joint Closure

Description
FOSC-3018 4 Port Wall-mounted 256 Fibers Fiber Optic Splice Closure is a fiber optic splice box for FTTH application with a capacity of 256 fiber splices. The design of the box allows the mechanical continuity of the cable pulling elements and protects the fibers, the junctions and optical devices facilitating the organization of splices and fiber surplus storage. The box is airtight and resistant to outdoor conditions so it can be installed both outside and inside buildings in log houses, manholes, walls, poles or cable galleries.

Feature
  • Water-proof design with IP65 protection level for outdoor
  • Fiber bend radius control more than 40mm
  • 4 cable ports for cable diameter from 6.5mm~19mm
  • Each splice tray accommodates 32pcs of sleeves
  • The closing cover can be opened and closed without special tools because of the clip-type design
  • The closure can be opened, closed and manipulated without interrupting the spliced fibers. It allows jointing and segregating cables without having to cut all the fibers as well as the proper storage of the tubes and leftover fibers of the cables.
Specifications:
Model FOSC-3018
Number of Inlet/Outlet Ports 4 ports
Cable Diameter Two grommets: 19mm max.
Two grommets: 16mm max.
Two grommets: 14mm max.
Two grommets: 7.4mm max. (1 grommet is with 4 cable ports) Additional grommets: 6.5mm max. (1 grommet is with 4 cable ports) Additional grommets: 8.5mm max. (1 grommet is with 4 cable ports)
Max. Splice Capacity 256 Fibers (8 trays, 32 fibers/tray)
Material PC+ABS
Color light grey
Installation Method wall mounting
Size (H*W*D) 565*175*115mm
Net Weight 2.75kg
Individual Packing Box Quantity: 1pc/box, Size: 570*310*125mm, Gross Weight: 3.46kg
