K8 High Precision Fiber Cleaver
Description:
K8 High Precision Fiber Cleaver is a new upgraded fiber cleaver. It uses aviation aluminum alloy material with anodizing processing. More than 20 precision processes, CNC precision machining, compact and precise, average cleave angle < 0.5°. The imported tungsten blade contains 24 positions and performs 48,000 times single fiber cleaves. The hexagonal wrench allows you to adjust the cleaver blade flexibly. It is a reliable cleaver for fiber optic networks and FTTx FTTH applications.
Features:
- Excellent quality, small but accurate.
- Anti fiber broken, stable & reliable.
- Two-step operation, when the cover opens, the slider returns to the cleaving position.
- 24 positions, 48,000 times cleave per blade.

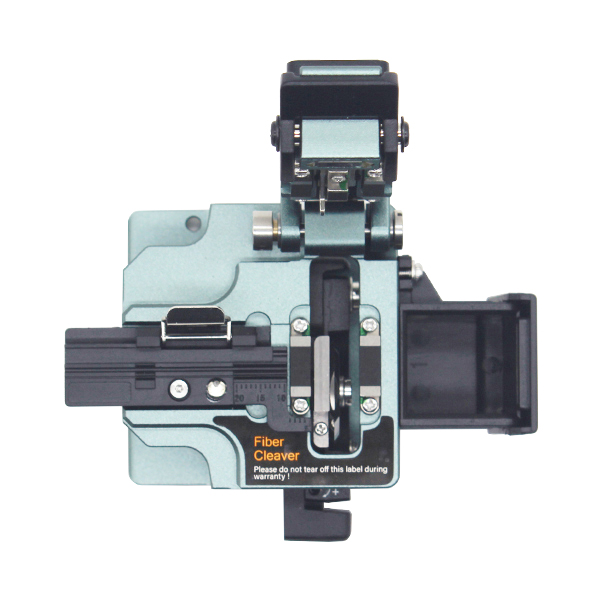

- With a trash bin, collect fiber trash in time.
Applications:
- FTTx construction
- Optical network construction
- LAN, WAN, and Metro networks
- CATV networks
Specifications:
| Fiber Type | single fiber |
| Cladding Diameter | 125um |
| Fiber Diameter | 250um/900um/2mm/3mm/2*3mm flat drop cable |
| Cleave Angle Capability | averagely <0.5˚ |
| Cleave Length | 5~20mm |
| Blade Lifetime | 48,000 fiber cleaves (1,000 times*24 positions*2 blade heights) |
| Dimension | 68W*68D*54H (mm) |
| Net Weight | 255g |
| Plastic Box Size | 114*102*62mm |
| Gross Weight | 334g |

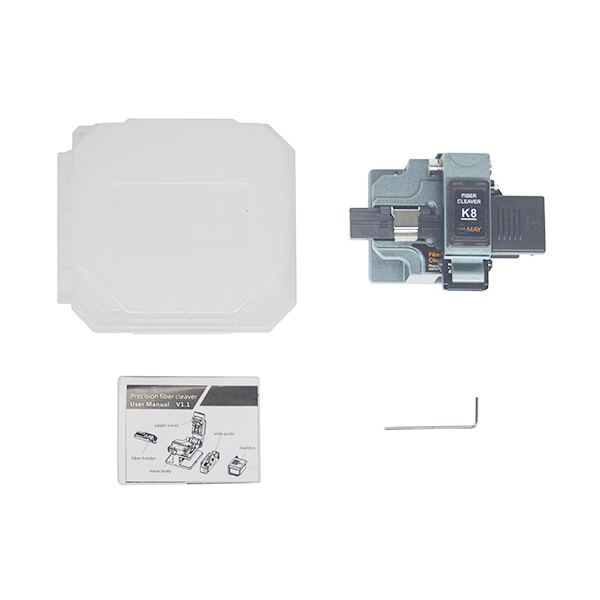

Standard Accessories:
| Item | Name | Quantity |
| 1 | K8 High Precision Fiber Cleaver with 1pc of Blade | 1pc |
| 2 | Fiber Collector | 1pc |
| 3 | Hexagonal Wrench | 1pc |
| 4 | User Manual | 1pc |
| 5 | Packing Box | 1pc |
Optional Accessories:
| Item | Name | Quantity |
| 1 | Fiber Collector | 1pc |
| 2 | Blade (ϕ22*2mm) | 1pc |

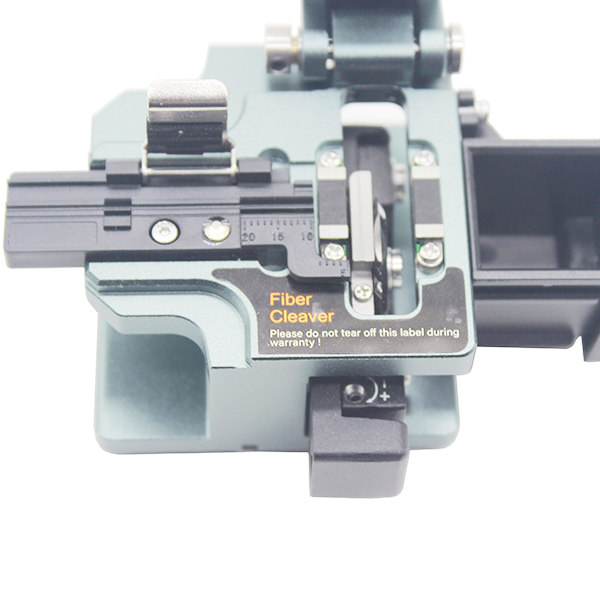

| 3 | Three-in-one Fiber Holder | 1pc |
Ordering Information:
| Model | Name | Description |
| K8 | High Precision Fiber Cleaver | with fiber collector |
| K8-CB | Replacement Blade | 24 positions |
