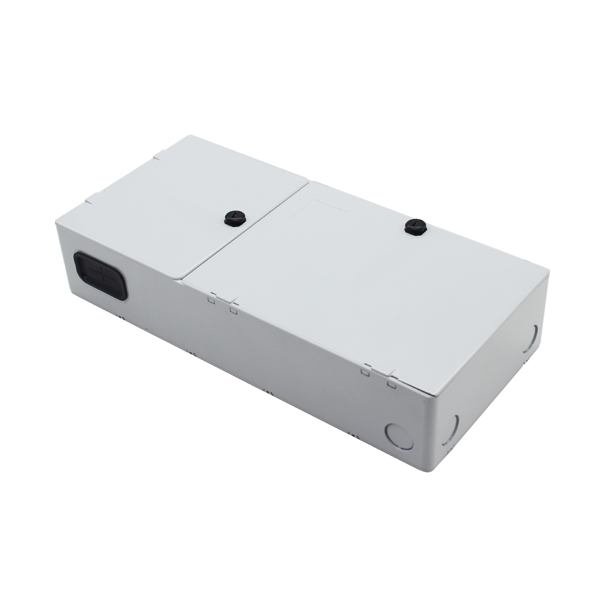

MAY-FSB-3202 32 Fibers Indoor Fiber Splitter Box

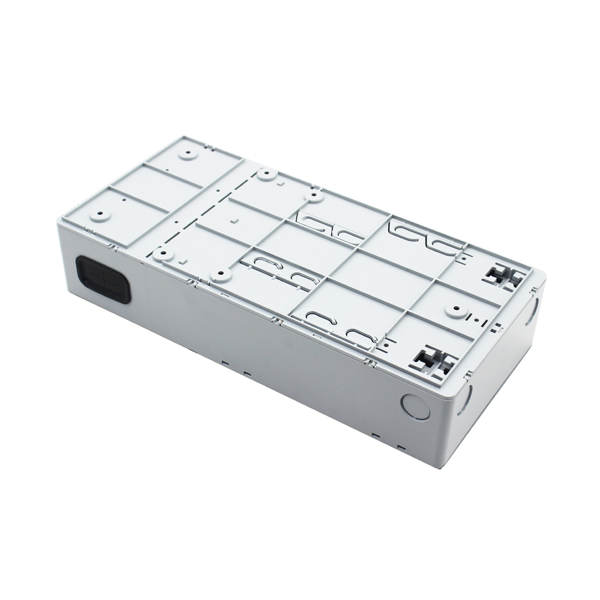

MAY-FSB-3202 32 Fibers Indoor MDU Fiber Distribution Box - Back Side

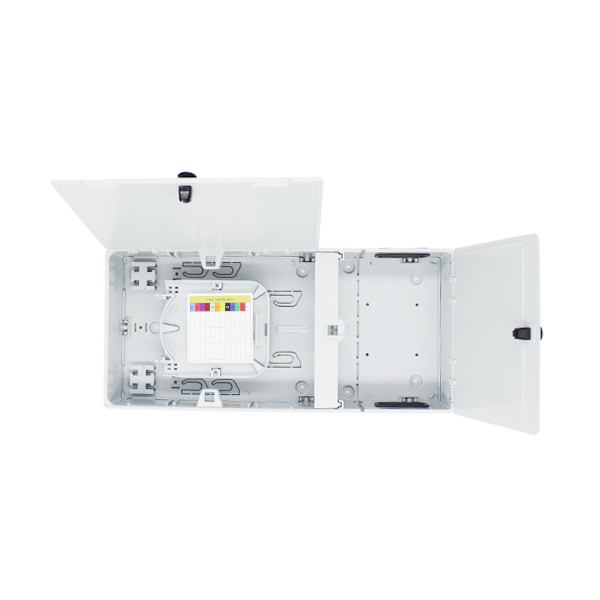

MAY-FSB-3202 32 Fibers Indoor MDU Fiber Optic Distribution Box

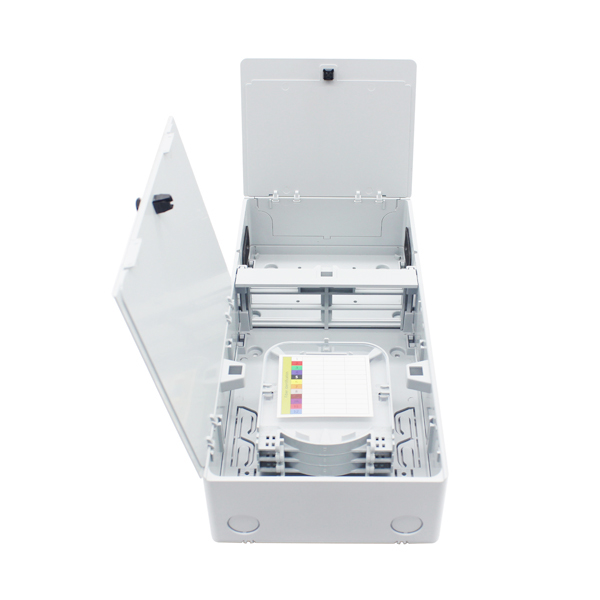

MAY-FSB-3202 32 Fibers Indoor MDU Optical Fiber Distribution Box

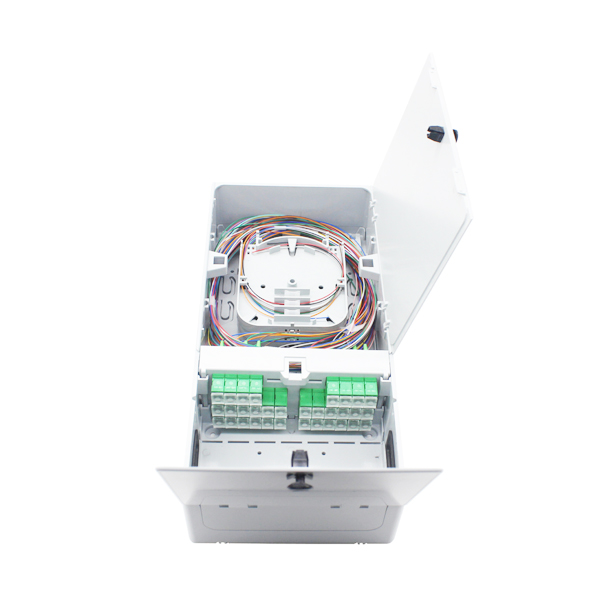

MAY-FSB-3202 32 Fibers Indoor MDU Fiber Distribution Box

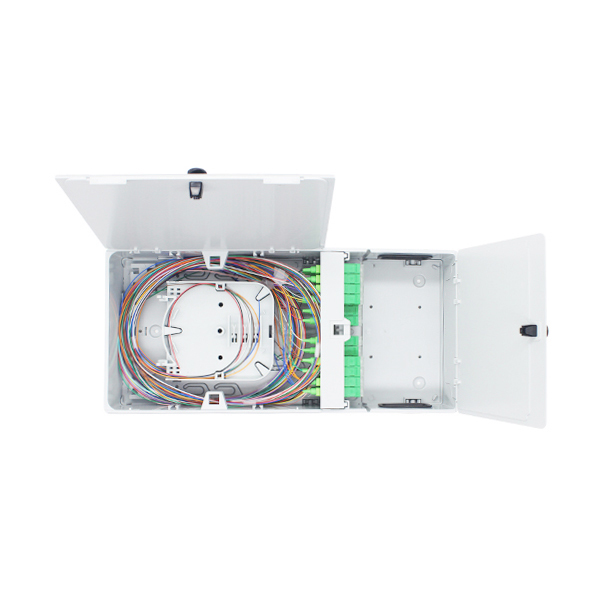

MAY-FSB-3202 32 Fibers Indoor MDU Fiber Distribution Box - 32pcs of SC Adapters and Pigtails

                                                                                                         Box with 32pcs of SC/APC Adapters and Pigtails

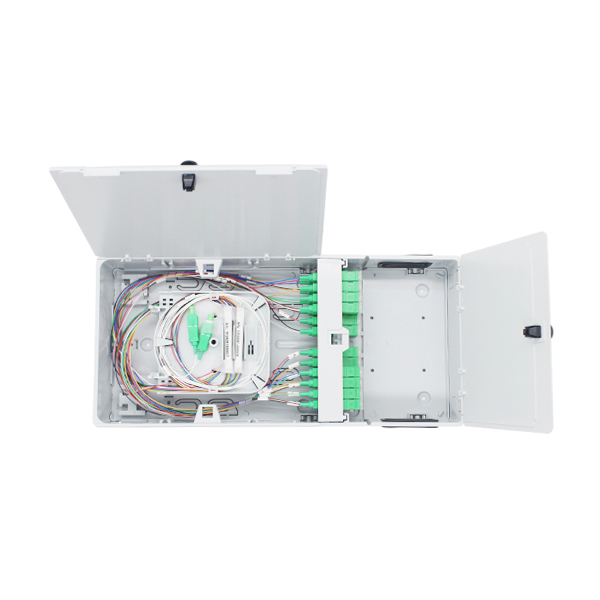

MAY-FSB-3202 32 Fibers Indoor MDU Fiber Distribution Box with Blockless PLC Splitter

Box with Blockless PLC Splitter

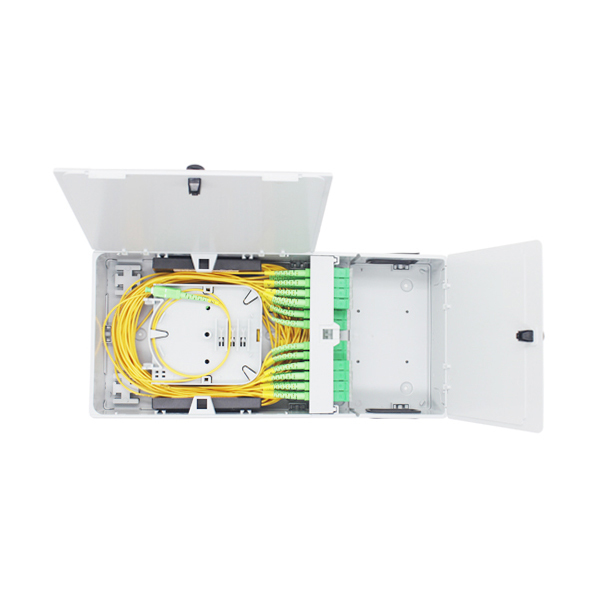

MAY-FSB-3202 32 Fibers Indoor MDU Fiber Splitter Box with Plastic Box PLC Splitters

 Box with 2pcs of Huawei Plastic Box PLC Splitters

Description:
MDU Optical Splitter Box is used for indoor plant MDU (multi-dwelling) buildings in FTTH networks.
It carries out optimized fiber management for 32 fibers distribution in P2P network or 32 fibers splitting in P2MP PON network, and serves 32 subscribers.
MDU Optical Splitter Box integrates fiber cable fixation, storage, uncut, splicing, distribution, splitting in an indoor wall mounting box.

Features:
  • Water-proof design with IP55 Protection level
  • Impact test: IK08, Pull Force: 1000N, Full rugged design
  • Independent fiber optic cable fusion area, independent fiber optic wiring area, without mutual interference during operation
  • Can install and accommodate up to 2pcs of 1*16/1*8/1*4/1*2 Plastic Box PLC Splitters with box size 100x45x10mm Alternatively 9pcs of 1*8/1*4/1*2 Blockless PLC splitter with package size 60x4x7mm can be installed as an option in 3 splicing trays in total (3pcs of PLC Splitter in each splicing tray)
  • Fiber bend radius control more than 40mm
  • 4 inlet cable ports and 2 cable glands for inlet cables (13mm)
  • 32 adapters for drop cable patching
  • Multiple boxes can be stacked and installed to increase wiring usage
Applications:
  • FTTH, FTTB, FTTC
  • Telecommunication Network
  • CATV
  • Local Area Network
Specification:
Material PC+ABS
Size (W*H*D) 325*150*68mm
Net Weight 0.71kg
Applicable Adapter SC (duplex LC is optional)
Adapter Quantity 32 pieces max.
Splice Tray Capacity 36 fibers (3 trays, 12 fibers/tray)
Inlet Cable Ports 4 * Round ports (Ø 13mm)
PLC Splitter Capacity Max. 2pcs of 1*16/1*8/1*4/1*2 Plastic Box PLC Splitters with box size 100x45x10mm; Max. 9pcs of 1*8/1*4/1*2 Blockless PLC splitter with package size 60x4x7mm
Color grey
Installation Method wall mounting
Individual Packing Box Quantity: 1pc/box, Size: 350*170*90mm, Gross Weight: 0.89kg
Outer Carton Packing Quantity: 20pcs/carton, Size: 690*370*440mm, Gross Weight: 19.5kg
