MAY-FSB-4801 48 Fibers Indoor MDU Fiber Splitter Box

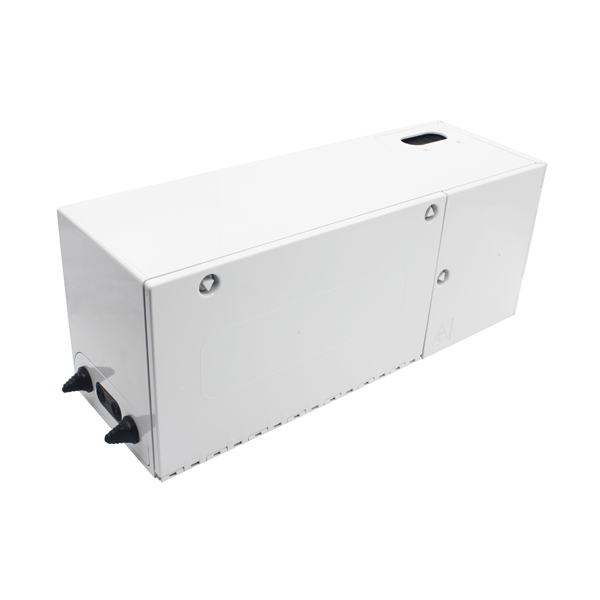

MAY-FSB-4801 48 Fibers Indoor Fiber Splitter Box

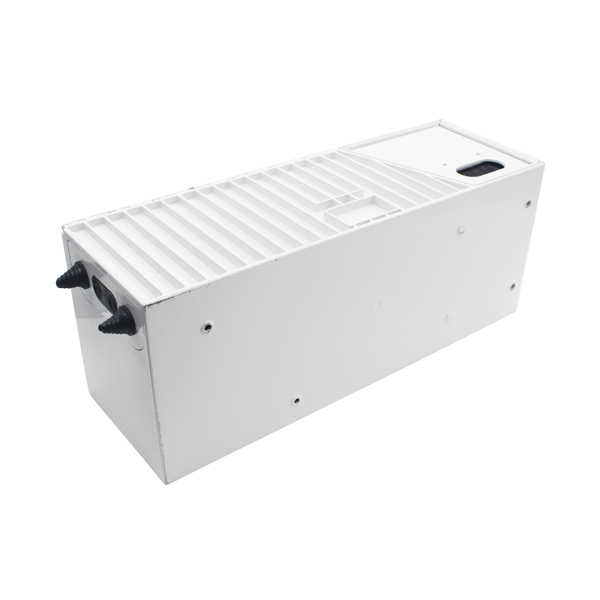

MAY-FSB-4801 48 Fibers Indoor MDU Fiber Splitter Box - Back Side

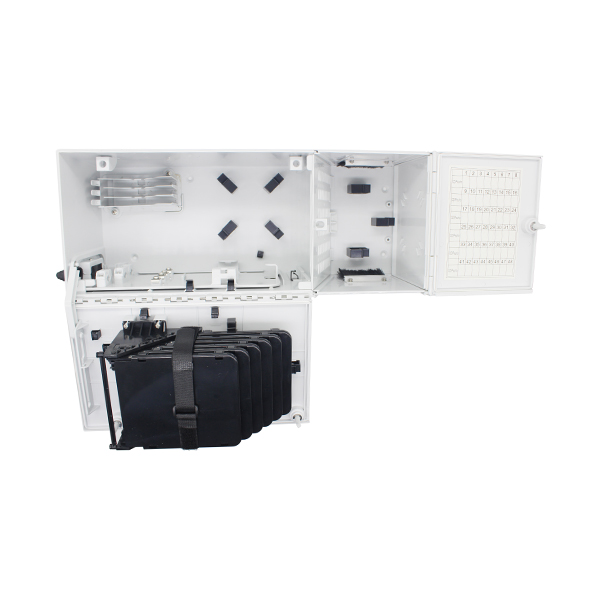

MAY-FSB-4801 48 Fibers Indoor MDU Fiber Optic Distribution Box

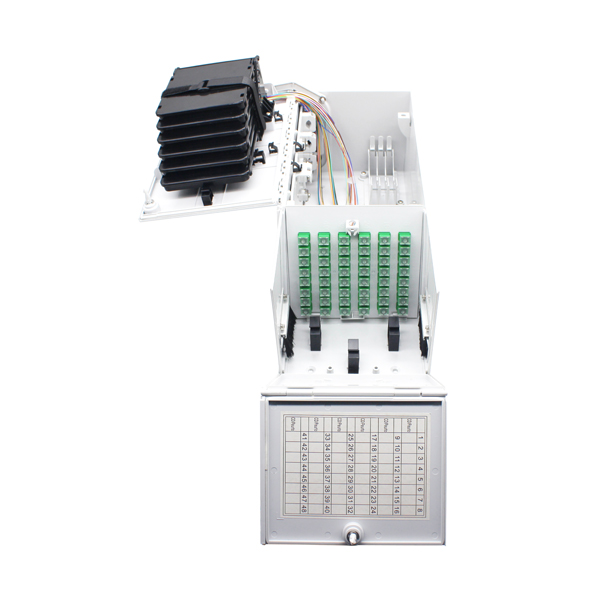

MAY-FSB-4801 48 Fibers Indoor MDU Fiber Splitter Box - Adapter Side

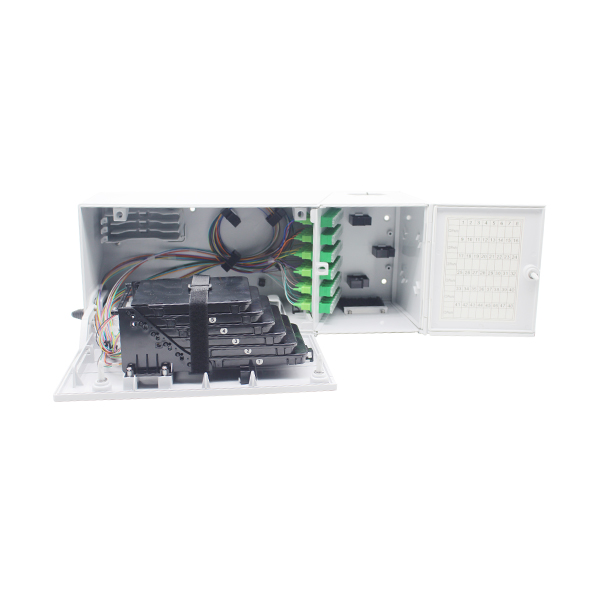

MAY-FSB-4801 48 Fibers Indoor MDU Fiber Splitter Box - 6 Trays

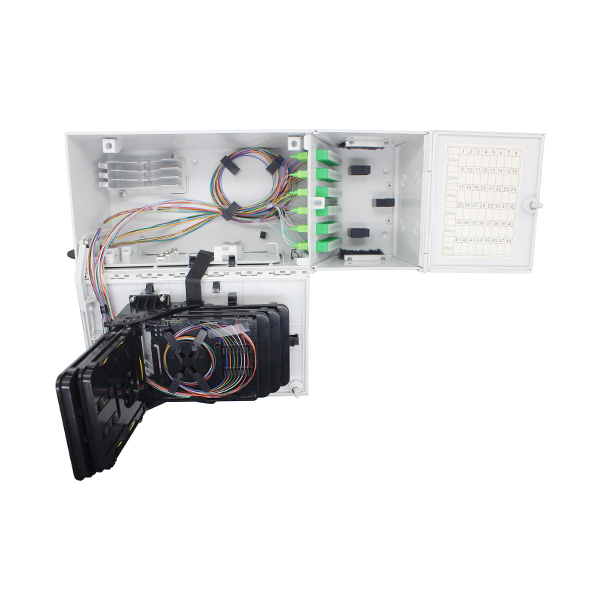

MAY-FSB-4801 48 Fibers MDU Fiber Splitter Box

                                                                                                              Box with 48pcs of SC/APC Adapters and Pigtails

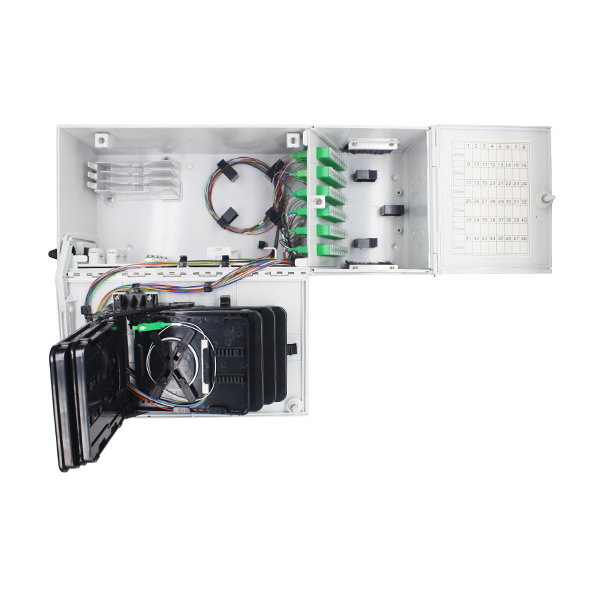

MAY-FSB-4801 48 Fibers Indoor MDU Fiber Splitter Box with Blockless PLC Splitter

Box with Blockless PLC Splitter

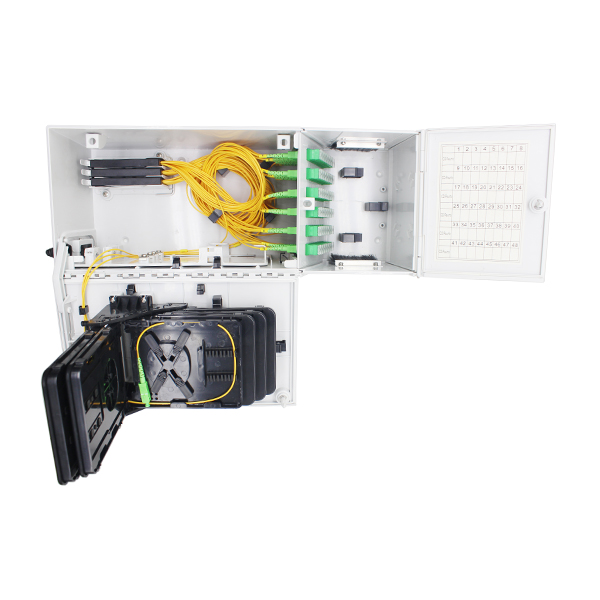

MAY-FSB-4801 48 Fibers Indoor MDU Fiber Splitter Box with Plastic Box PLC Splitter

Box with 3pcs of Huawei Plastic Box PLC Splitters

Description:
MDU Optical Splitter Box is used for indoor plant MDU (multi-dwelling) buildings in FTTH networks.
It carries out optimized fiber management for 48 fibers distribution in P2P network or 48 fibers splitting in P2MP PON network, and serves 48 subscribers.
MDU Optical Splitter Box integrates fiber cable fixation, storage, uncut, splicing, distribution, splitting in an indoor wall mounting box.

Features:
  • Water-proof design with IP55 protection level
  • Impact test: IK08, Pull Force: 1000N, Full rugged design
  • Independent fiber optic cable fusion area, independent fiber optic wiring area, without mutual interference during operation
  • Fiber bend radius control more than 40mm
  • Can install and accommodate up to 3pcs of 1*16/1*8/1*4/1*2 Plastic Box PLC Splitters with box size 100x45x10mm, Alternatively 12pcs of 1*8/1*4/1*2 Blockless PLC splitter with package size 60x4x7mm can be installed as an option in 6 splicing trays in total (2pcs of PLC Splitter in each splicing tray)
  • 1 mid-span cable entrance(10-16.5mm) for uncut cable and 2 cable entrances for distribution cables (8-16.5mm)
  • 48 adapters for drop cable patching
  • Multiple boxes can be stacked and installed to increase wiring usage
Applications:
  • FTTH, FTTB, FTTC
  • Telecommunication Network
  • CATV
  • Local Area Network
Specification:
Material PC+ABS
Size (W*H*D) 450*180*150mm
Net Weight 2.47kg
Applicable Adapter SC (duplex LC is optional)
Adapter Quantity 48 pieces max.
Splice Tray Capacity 96 fibers (6 trays, 16 fibers/tray)
Inlet Cable Ports 1 * Oval uncut port (Ø 8-16mm); 2 * Round ports (Ø 8-18mm)
PLC Splitter Capacity Max. 3pcs of 1*16/1*8/1*4/1*2 Plastic Box PLC Splitters with box size 100x45x10mm; Max. 12pcs of 1*8/1*4/1*2 Blockless PLC splitter with package size 60x4x7mm
Color grey
Installation Method wall mounting
Individual Packing Box Quantity: 1pc/box, Size: 480*210*190mm, Gross Weight: 2.7kg
Outer Carton Packing Quantity: 6pcs/carton, Size: 560*495*450mm, Gross Weight: 18kg

Plastic Box PLC Splitter Specification:
1. Click Here

Blockless PLC Splitter Specification:
1. Click Here
