MAY-ODB-2409 24 Fibers Optical Distribution Box

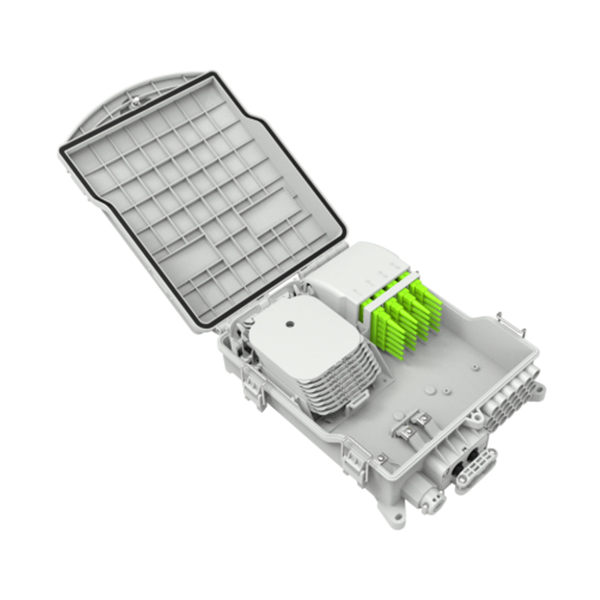

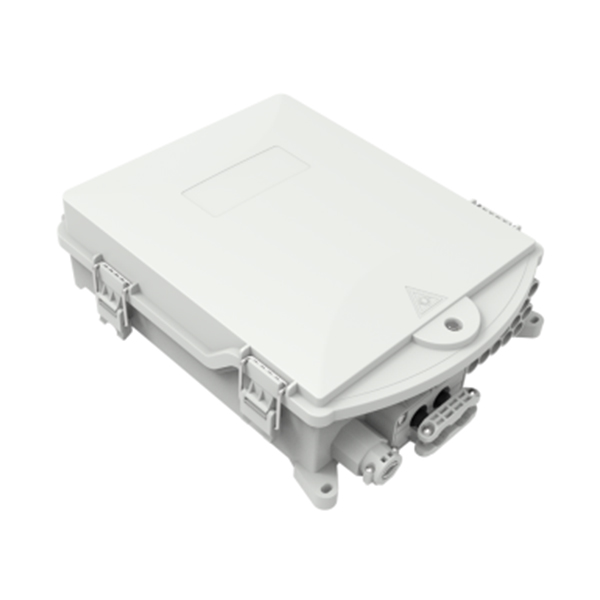

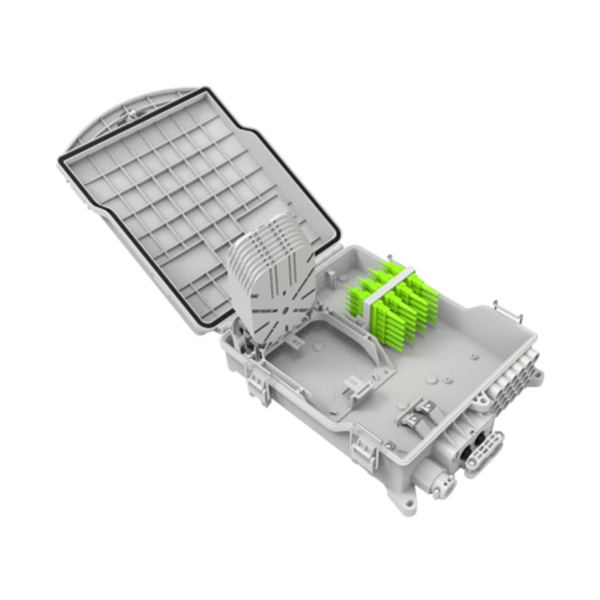

MAY-ODB-2409A product picture

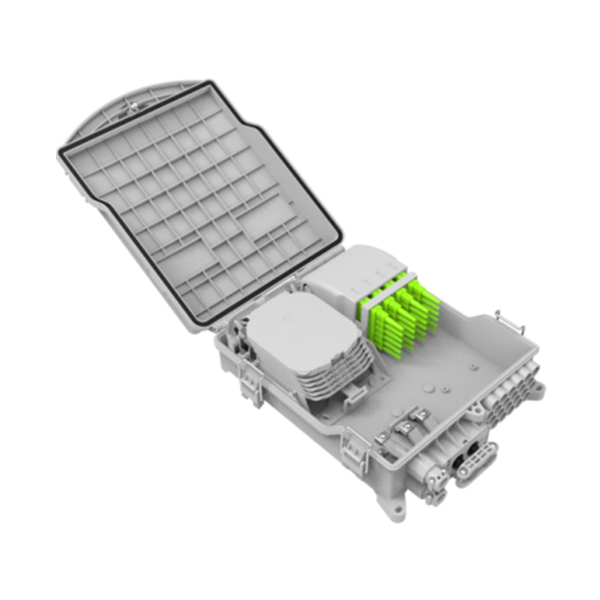

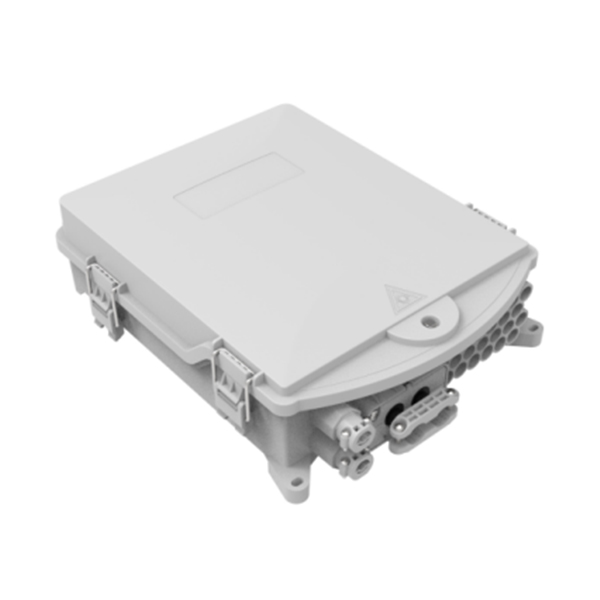

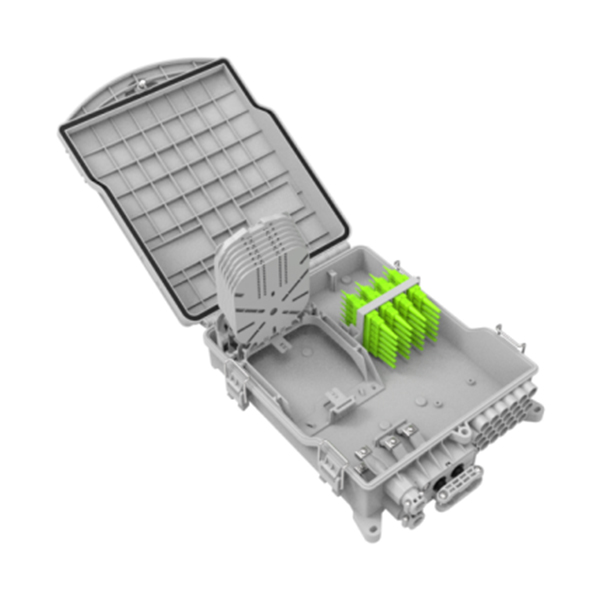

MAY-ODB-2409B product picture

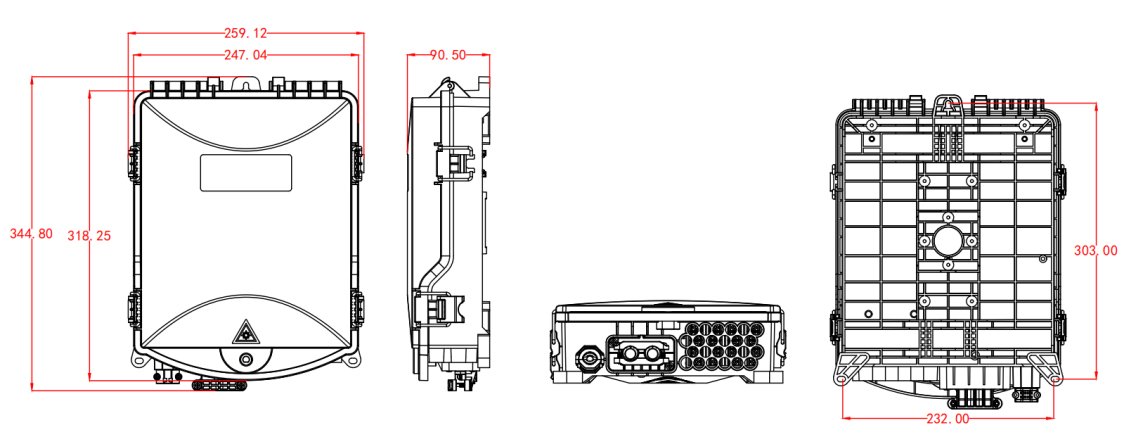

Dimension
Description:
The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
Features:
- Total enclosed structure
- Material: PC+ABS, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP65
- Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution…etc all in one
- Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adapter installation, easy maintenance
- Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation
- Installation method: pole-mounted, aerial-mounted, wall-mounted
Specification:
| Item | Specifications | Remark |
| External Dimension | 318*247*90.5mm | |
| Installation Hole Position | 303*232mm | |
| Color | PANTONE 428C | Customizable |
| Size and Quantity of Optical Cable Ports | 1 oval optical cable entry, 1 branch optical cable entries and 24pcs of household | MAY-ODB-2409A |
| 1 oval optical cable entry, 2 branch optical cable entries and 24pcs of household | MAY-ODB-2409B | |
| Input Type/Output Type | SC adapter | |
| Capacity(Max) | 96 (Tray A, 12×8=96, 1 layer of heat-shrinkable splice protection sleeve.) | 1. The trays can be mixed according to requirements. 2. Configuration rules: 2A=1B |
| 64 (Tray B, 16×4=64, 2 layers of heat-shrinkable splice protection sleeve.) | ||
| Into the Largest Cable Diameter | Ф18mm | |
| Cable outlet Size | 2*3/Ф5mm | |
| IP Protection Level | IP65 | |
| Flammability | HB(Conventional) | can be customized according to requirements |
| Neutral Salt Spray Test (NSS) | 48h | |
| Operation Temperature | -40 ºC～+65 ºC | |
| Installation Temperature | -5 ºC～+40 ºC | |
| Storage Temperature | -40 ºC～+65 ºC | |
| Atmospheric Pressure | 70～106Kpa | |
| Relative Humidity | ≤93％(+40℃) | |
| Package | 1PC in a bubble bag, 420*350mm
1PC in a small carton, 355*270*100mm, gross weight is 1.74kg. 10PCS in a big corrugated carton, 560*370*535mm, gross weight is 18.5kg. |
|
Splicing tray:

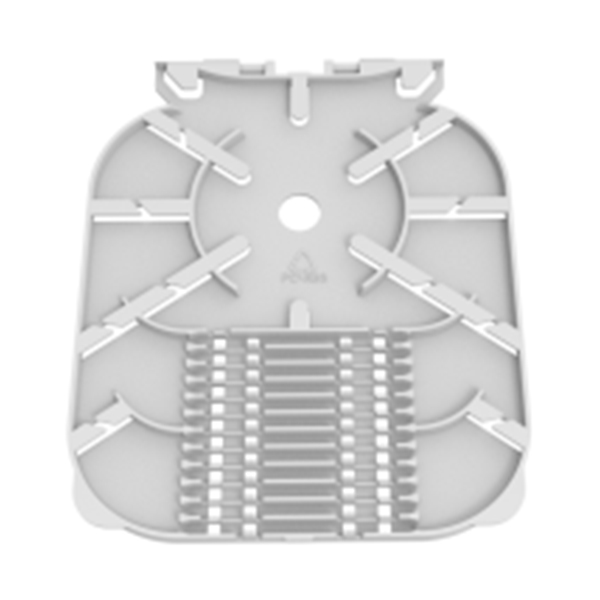

Splice tray A

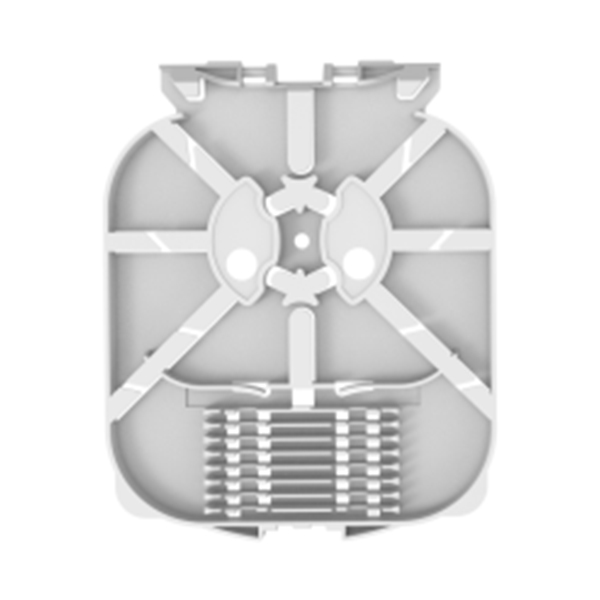

Splice tray B
| Item | Splice tray A | Splice tray B |
| Dimensions(H*W*D) | 121*101*4mm | 125*101*8mm |
| Net Weight | 0.017kg | 0.026kg |
| Color | PANTONE 428C | PANTONE 428C |
| Material | PC+ABS/ABS | PC+ABS/ABS |
| Splicing Capacity of A Tray | 12 cores (1 layer of heat shrinkable protective sleeve) | 16 cores (2 layers of heat shrinkable protective sleeve) |
| Splitter capacity of a tray | / | 1PCS(PLC: 1X2, 1X4, 1X8; 0.9mm fiber; 60x7x4mm) |
| Maximum | 8PCS | 4PCS |
| Default | 8PCS | / |
Ordering Information: MAY-ODB-2409-XX-XX-XX-XX-XX:
| Model | MAY-ODB-2409 |
| XX: Optical Cable Ports | A: 1 branch optical cable entries
B: 2 branch optical cable entries |
| XX: Adapter | None: without adapter
SU: SC/UPC SA: SC/APC |
| XX: Pigtail | None: without pigtail
SU: SC/UPC SA: SC/APC |
| XX: Splitter | None: without splitter
B12: 1×2 B14: 1×4 B18: 1×8 |
| XX: Mounting Method | W: Wall mounting
P: Pole mounting A: Aerial mounting |
| XX: Splice Tray | A: Splice tray A
B: Splice tray B |
