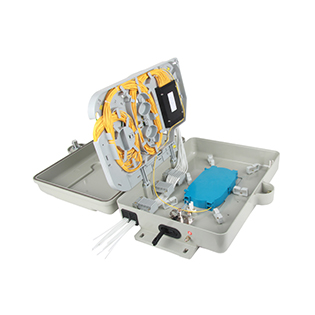

MAY-ODB-S-4801 48 Fibers Optical Distribution Box
Description:
Optical Distribution Box provides fiber optic cable management for the connection of distribution cables and drop cables at the user access point in fiber optic network. We provide Optical Distribution Box made of high quality SMC material from 2 fibers to 48 fibers.
MAY-ODB-S-4801 Optical Distribution Box integrates fiber cable fixation, storage, splicing and distribution in an outdoor and indoor wall mounting and outdoor pole mounting box.
Features:
- Water-proof design with IP65 Protection level
- Integrated with splice tray and cable management system
- Fiber bending radius control more than 40mm
- Suitable for the fusion splice or mechanical splice
Specification:
| Max. Capacity | SC: 48 fibers |
| Max. Inlet Cable Diameter | 15mm |
| Inlet Cable Number | 1 uncut cable port |
| Max. Outlet Cable Diameter | 2×3mm |
| Outlet Cable Number | 48pcs |
| Protection Grade | IP65 |
| Installation Method | Wall mounting and pole mounting (back plate and pole ring are optional) |
| Working Environment | Outdoor and indoor |
| Dimension | 448(H)*358(W)*129(D)mm |
| Working Temperature | -20°C~+60°C |
| Storage Temperature | -40°C~+70°C |
| Relative Humidity | 0%~95% |
| Air Pressure | 70~106KPa |
Ordering Information: MAY-ODB-S-4801-XX-XX-XX-XX:
| Model | MAY-ODB-S-4801 |
| XX: Adapter | None: without adapter SU: SC/UPC SA: SC/APC LU: LC/UPC LA: LC/APC |
| XX: Pigtail | None: without pigtail SU: SC/UPC SA: SC/APC LU: LC/UPC LA: LC/APC |

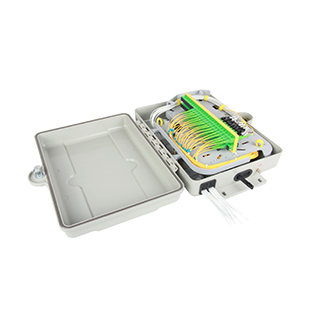

| XX: Splitter | None: without splitter P12: 1×2 P14: 1×4 P18: 1×8 P116: 1×16 P132: 1×32 |
| XX: Mounting Method | W: wall mounting P: pole mounting |
