MAY-OTB-W02 8 Fibers Indoor Wall Mount Optical Termination Box

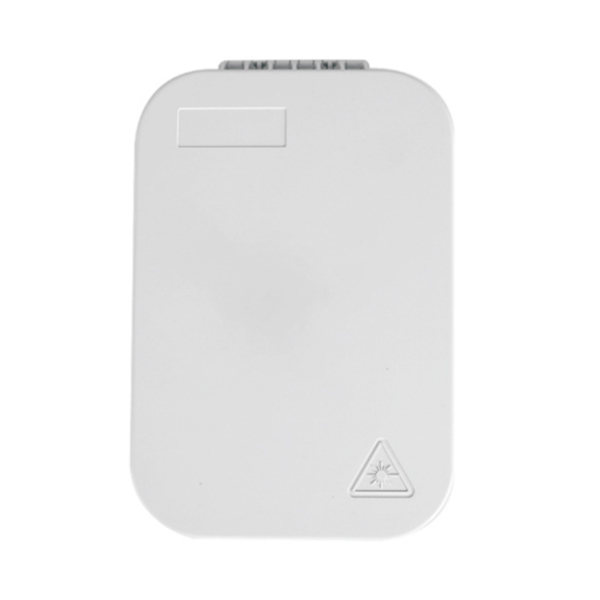

MAY-OTB-W02 Indoor Wall Mount Optical Termination Box

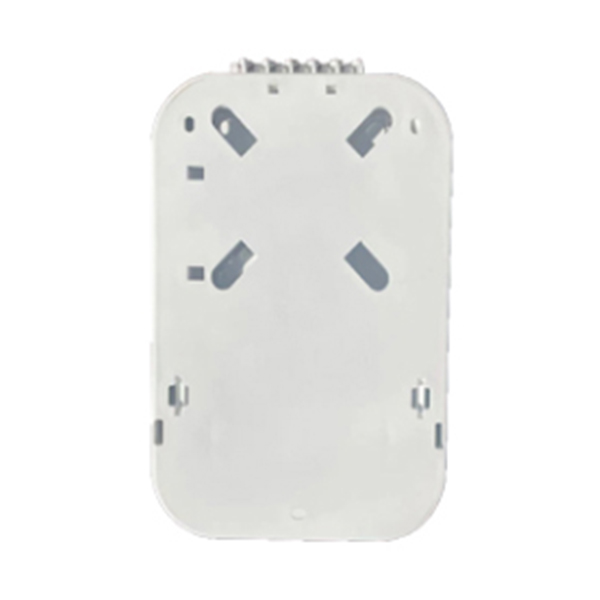

MAY-OTB-W02 Indoor Wall Mount Optical Termination Box Back View

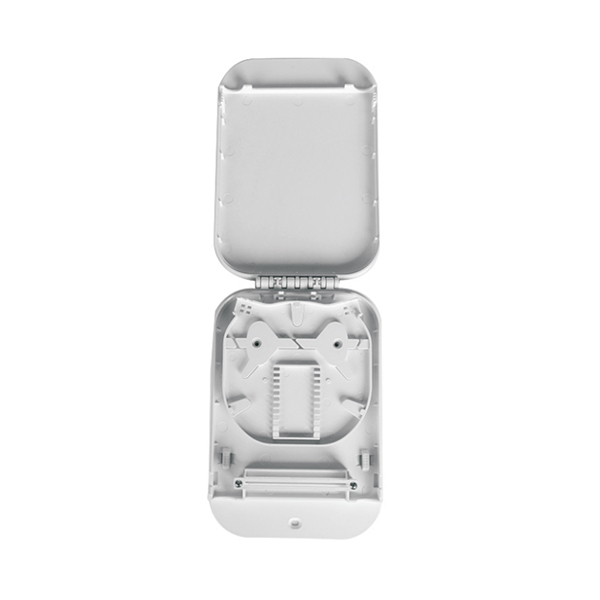

MAY-OTB-W02 8 Fibers Indoor Wall Mount Optical Termination Box

Description:
Indoor Wall Mount Optical Termination Box is used as a terminal box for fiber optic cable termination and distribution at customer premises in a fiber optic system. The Wall Mount Optical Termination Box is designed for fixing, splicing, and patching optical fibers on the wall for indoor applications.
This termination box can hold up to 8 subscribers. It is used as a termination point for the feeder cable to connect with the drop cable in an FTTx network system. It integrates fiber splicing, splitting, distribution, storage, and cable connection in one solid protection box.

Features:

  • Water-proof design with IP-45 protection level
  • Integrated with splice cassette and cable management
  • Manage fibers in a reasonable fiber radius condition
  • Easy to maintain and extend the capacity
  • Fiber bend radius control more than 40mm
  • Suitable for the fusion splice or mechanical splice
  • Efficient cable management
  • 8 ports cable entrance for drop cable
Specifications:
Material PC+ABS
Color White
Installation Method Wall mounting
Max Capacity 8pcs of SC adapters /8pcs of LC adapters/1pc of 1*8 PLC Splitter
Dimension 198(H)*130(W)*29(D)mm
Net Weight 0.8kg
Ordering Information: MAY-OTB-W02-XX-XX:
Model MAY-OTB-W02
XX: Adapter None: without adapter
SU: SC/UPC
SA: SC/APC
LU: LC/UPC
LA: LC/APC
XX: Pigtail None: without adapter
SU: SC/UPC
SA: SC/APC
LU: LC/UPC
LA: LC/APC
