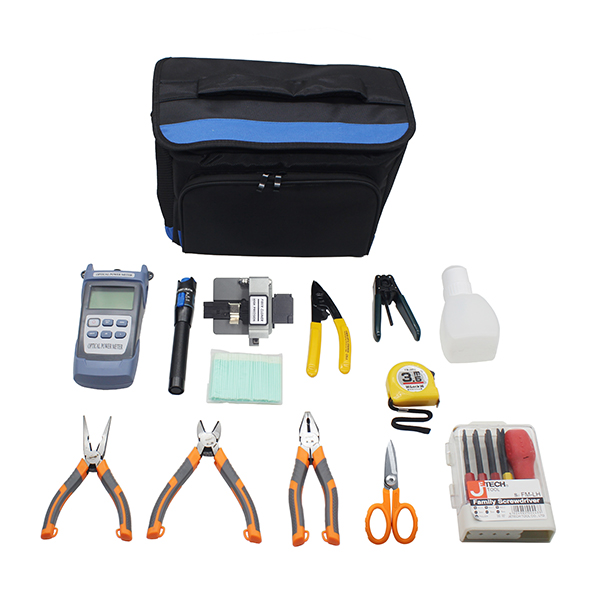

MAY-TK-ST5400 Fiber Optic Splicing and Testing Tool Kit
| No. | Name | Quantity |
| 1 | Carrying Bag (343*230*210mm) | 1pc |
| 2 | 6-inch Combination Pliers | 1pc |
| 3 | 6-inch Needle Nose Pliers | 1pc |
| 4 | 6-inch Diagonal Pliers | 1pc |
| 5 | FM-LH Screwdriver Set (Straight Screwdriver: 3mm, 5mm, 6mm; Cross Screwdriver: NO.0, NO.1, NO.2; Special: PULLER, AWLSQ) | 1 set |
| 6 | MAY60 10mW Visual Fault Locator (15km, 2.5mm universal adapter) | 1pc |
| 7 | MAY-17 (KS-1) Kevlar Scissors | 1pc |
| 8 | Leakproof Alcohol Dispenser Bottle 250ml | 1pc |
| 9 | MAY10A-D Optical Power Meter, -70 to +10dBm, FC/SC adapters | 1pc |
| 10 | CFS-3 Tri-hole Fiber Optic Stripper | 1pc |
| 11 | 2.5mm Foam Tipped Fiber Optic Swab, 100pcs/bag | 1 bag |
| 12 | FTTH Drop Cable Stripper for 3.1×2.0mm FTTH Drop Cable | 1pc |
| 13 | 915CL High Performance Fiber Cleaver | 1pc |
| 14 | 3.5M Measuring Tape, Length: 3.5 meters, Width: 16mm | 1pc |

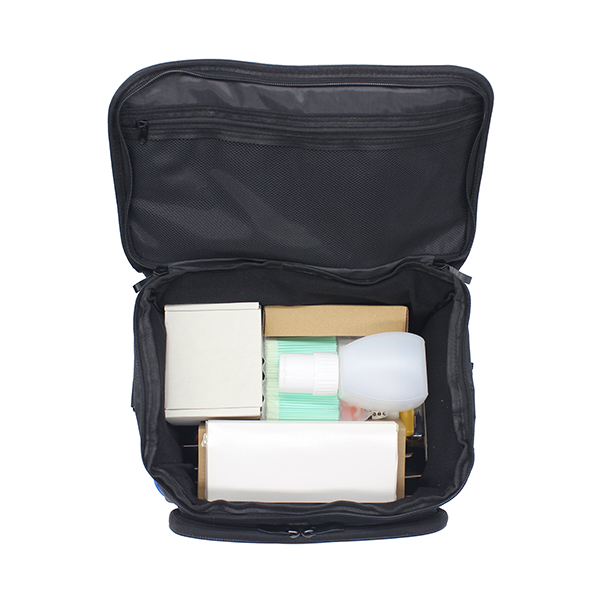

MAY-CB-FS1 Carrying Bag for Fiber Optic Fusion Splicer and Tools
Fiber Optic Fusion Splicer and Tools Inside for example
Description:
MAY-CB-FS1 Carrying Bag is a tool bag for storing Fiber Optic Fusion Splicer and Fiber Optic Tools. It is made of tear-resistant nylon fabric, which is strong and thick. It is not easy to deform. It is waterproof, wear-resistant, durable, thickened and shock-proof.
It has a large capacity and two detachable partitions inside the bag to form three compartments. It also has a comfortable and durable handle and a detachable hook shoulder strap for easy carrying.
It’s designed specifically for fiber optic technicians and communications equipment repair personnel. It provides convenience and efficiency, allowing them to quickly access and use the tools they need.
- Waterproof and wear-resistant, strong and durable, thickened and shockproof
- Large capacity, suitable for storing various tools
- High load bearing, anti falling and anti dropping
- Comfortable handle, reinforced and durable
| Model | MAY-CB-FS1 |
| Material | nylon |
| Color | black and blue |
| Outer Size | 343*230*210mm |
| Net Weight | approx. 720g |

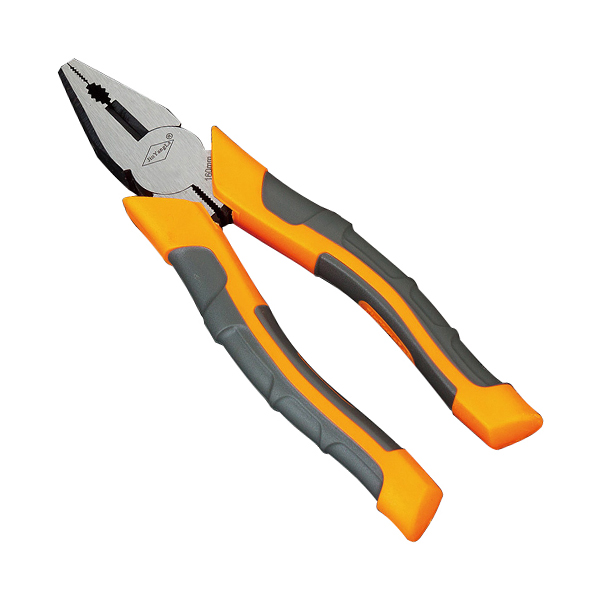

6-inch Combination Pliers
Description:
Combination Pliers (also called wire cutters) are a versatile hand tool primarily used for gripping, bending, twisting metal parts, and cutting wires/cables. They are widely used in electrical, construction, and repair industries, and are particularly suitable for electricians for cutting wires, removing nails, stripping insulation, and straightening metal wires.
The Combination Pliers are made from alloy steel to provide improved strength and durability. The professional steel handle is designed for ergonomic comfort during continuous use. It’s suitable for professionals and DIY users.
- Made of high-quality Chromium-vanadium steel material, ensuring durability and strength.
- Induction-hardened jaws help the tool stay sharp.
- Ergonomic handle for comfort and control.
- Precision grinding technology provides stronger clamping performance.
- Length: 160mm
- Net weight: 252g
- Package size: 225*85mm
- Gross weight: 275g

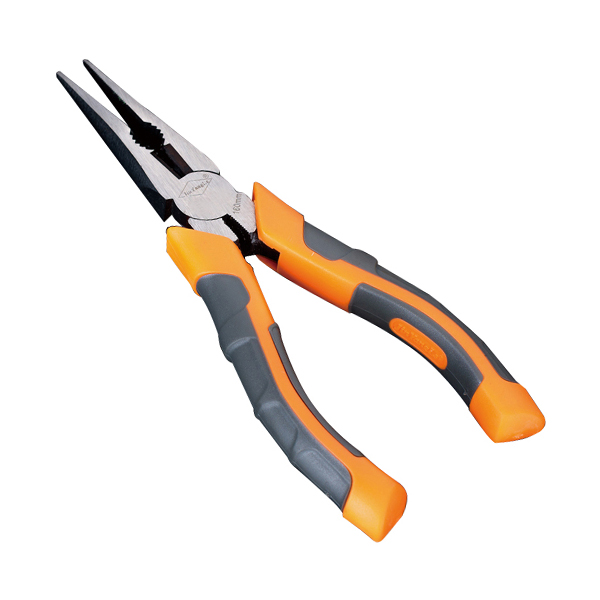

6-inch Needle Nose Pliers
Description:
Needle Nose Pliers are a common type of multi-functional pliers. Their long and slender jaws can reach into narrow spaces and are primarily used for gripping, bending, twisting, and securing small objects (such as wires and electronic components). They often have cutting edges for snipping thin cables, making them an indispensable precision tool for electricians, jewelers, electronics repair technicians, model makers, and for general household repairs.
The Needle Nose Pliers are made from alloy steel to provide improved strength and durability. The professional steel handle is designed for ergonomic comfort during continuous use. It’s suitable for professionals and DIY users.
- Made of high-quality Chromium-vanadium steel material, ensuring durability and strength.
- Induction-hardened jaws help the tool stay sharp.
- Ergonomic handle for comfort and control.
- The reset spring design makes it convenient and effortless to use.
- Length: 160mm
- Net weight: 167g
- Package size: 225*85mm
- Gross weight: 188g

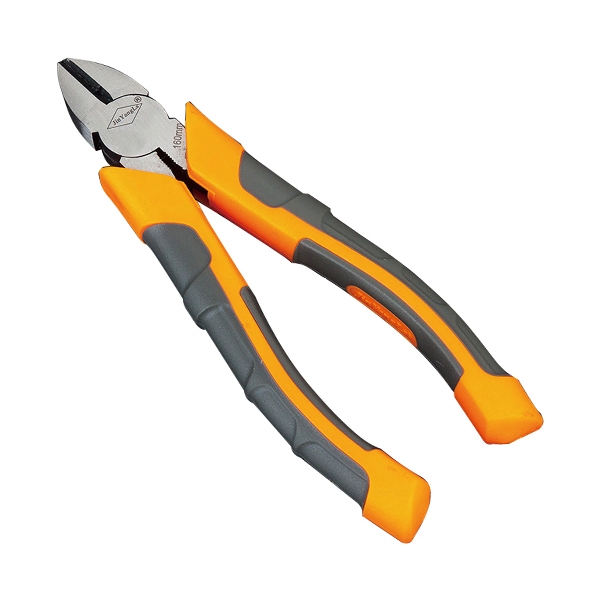

6-inch Diagonal Pliers
Description:
Diagonal Pliers, also called wire cutters, side cutters, or nippers, are hand tools with angled jaws designed specifically for cutting wire, cables, zip ties, and other small and tough materials.
The Diagonal Pliers are made from alloy steel to provide improved strength and durability. The professional steel handle is designed for ergonomic comfort during continuous use. It’s suitable for professionals and DIY users.
- Made of high-quality Chromium-vanadium steel material, ensuring durability and strength.
- Induction-hardened jaws help the tool stay sharp.
- Ergonomic handle for comfort and control.
- The reset spring design makes it convenient and effortless to use.
- Length: 160mm
- Net weight: 189g
- Package size: 225*85mm
- Gross weight: 210g

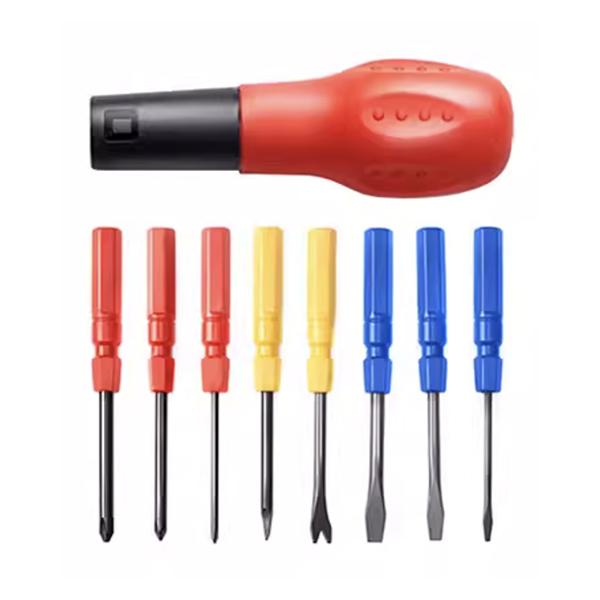

FM-LH Screwdriver Set
Model: FM-LH
Origin: China
Manufacturer: JETECH TOOL CO., LTD
- This set includes 8pcs commonly used screwdriver head types, offering complete functionality; the iron handle is made of chrome vanadium alloy steel for strong torque.
- Stored in a transparent plastic box, preventing loss.
- Features a convenient quick-release knob.
- The tip is blackened and hardened, and is magnetic.
- Gross Weight: 302.5g; Paper box packing dimension: 15.5*10.9*3.9cm
| Straight Screwdriver | 3mm |
| 5mm | |
| 6mm | |
| Cross Screwdriver | NO.0 |
| NO.1 | |
| NO.2 | |
| Special | PULLER |
| AWLSQ |
| Quantity per Carton | 60 sets/carton |
| Net Weight per Carton | 18.15kg |
| Gross Weight per Carton | 21.7kg |
| Dimension | 61*48.5*19cm |
MAY60 Visual Fault Locator
- Red laser at 650nm
- Pulsed and CW operation
- Standard AA alkaline batteries
- Rugged and waterproof design
| Model | MAY60-10 |
| Laser Launcher Level | CLASS IIIB |
| Output Power | >10mW |
| Distance① | 15km |
| Wavelength | 650nm ± 20nm |
| Operation Mode | Pulsed (2Hz) and CW |
| Connector | 2.5mm universal adapter (SC/FC/ST/E2000, etc.) |
| Power supply | 2*AA alkaline batteries |
| Size (H*W*D) | 175*26*26mm |
| Weight | 80g |
| Standard Accessories: User manual, soft bag, wrist belt, spare sleeve (2*AA alkaline batteries not included) | |
MAY-17 (KS-1) Kevlar Scissors
Description:
Kevlar is widely used as a strength member in the patchcord and pigtail to improve the tensility. Kevlar is a high tensile material, and normal tools can hardly cut it. So, a special tool is very essential. MAY-17 Kevlar Scissors are specially designed for cutting this Kevlar strength member.
- Ergonomic design, comfortable for handling
- One micro-serrated blade reduces slippage for more positive cutting action
| Dimension (mm) | 142*75*18 |
| Weight (kg) | 0.08 |
MAY-ADB-250-B Leakproof Alcohol Dispenser Bottle
Description:
MAY-ADB-250-B Leakproof Alcohol Dispenser Bottle with a lock is designed to dispense alcohol and applied with a swab or wipe to clean the stripped and cleaved optical fibers.
- High volume and good sealing, suitable for field application
- Used to dispense alcohol to clean optical fibers
- Ideal for use in EPA and cleanroom environments
| Model | MAY-ADB-250-B |
| Volume | 250ml |
| Color | white |
| Material of Bottle & Bottle Mouth | HDPE |
| Fiber Mode | single mode & multi-mode |
| Fiber Type | G.652, G.657, OM1, OM2, etc |
| Operating Temperature | -40~+85°C |
| Storage Temperature | -40~+85°C |
MAY10 Series Optical Power Meter
FC Adapter (Standard)
SC Adapter (Standard)
- Both linnear (mW) and non-linear (dBm)
- User calibration
- Wavelength memory function
| Model | MAY10A-D |
| Measuring Range | -70 to +10dBm |
| Calibrated Wavelength | 850/980/1300/1310/1490/1550/1625/1650nm |
| Detector Type | InGaAs |
| Resolution | Linear display: 0.1%, logarithmic display:0.01dBm |
| Linearity | ±5% |
| Automatic Shutoff Time | 10min |
| Continuous Working Time | 12h |
| Connector | Interchangeable FC, SC |
| Tone Detection | 270, 330, 1k, 2kHz |
| Power supply | 3*AA dry batteries |
| Backlight | Yes |
| Dimension | 186*100*50mm |
| Net Weight | 140g |
| Operating Temperature | -10 to +50℃ |
| Storage Temperature | -40 to +70℃ |
| Relative Humidity | 0~95% (non-condensing) |
| Item | Name | Quantity |
| 1 | Optical Power Meter with FC Adapter | 1pc |
| 2 | User Manual | 1pc |
| 3 | SC Adapter | 1pc |
CFS-3 Tri-hole Fiber Optic Stripper
- The biggest hole for stripping 2~3mm jacket to expose 600~900um buffer
- The second hole for stripping 600~900um buffer to expose 250um coating
- The smallest hole for stripping 250um coating to expose 125um cladding
- Pre-set at the factory – no adjustments needed
- Will not scratch or nick glass fiber
- All stripping surfaces are manufactured to precise tolerances to assure clean, smooth strips
- Comfort-grip, ergonomic handles
- Lock to hold tool closed when it is not in use
- Length: 165mm; weight: 113g

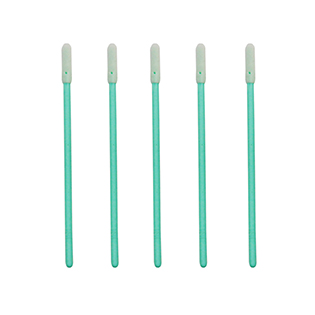

CLS-2.5F 2.5mm Foam Tipped Fiber Optic Swab
Application:
To clean 2.5mm ferrule end-faces inside the plug-in fiber-optic connectors and various adaptors
| Model | CLS-2.5F |
| Applied Ferrule Diameter | 2.5mm |
| Applied Connectors | SC/FC/ST/D4/DIN/E2000, etc. |
| Length | 2.7” |
| Packing | 100pcs/bag |
MAY-11 FTTH Drop Cable Stripper for 3.1×2.0mm FTTH Drop Cable
Description:
FTTH Drop Cable Stripper is used for stripping the outer jacket of FTTH Drop Cable in FTTH (fiber to the home) before FTTH Fast Field Assembly Fiber Optic Connectors are assembled.
- Soft handle
- With length scale
- Improve installation efficiency
- Lightweight, durable and compact
- Simple jacket removing without fiber damaging
- Universal stripper for 1×2.0mmFTTH Drop Cable
| Color | black |
| Applicable Cable | 3.1×2.0mm FTTH Drop Cable |
| Fiber Diameter | 125um |
| Coating Diameter | 250um |
| Blade Lifetime | 5,000 times for metal strength member; 10,000 times for non-metal strength member |
915CL High Performance Fiber Cleaver
Blade: 24 positions
With Fiber Collector
Three-in-one Fiber Holder for 250um/900um/2mm/3mm/2*3mm flat drop cable
Top View
Front View
Back View
Bottom View
Plastic Packing Box
Standard Accessories
Description:
915CL Fiber Cleaver is a high precision single fiber cleaver. It is a reliable cleaver for fiber optic network and FTTx FTTH applications. It contains 24-position blade and performs 48,000 times single fiber cleaves. A hexagonal wrench allows you to adjust the cleaver blade height flexibly.
915CL Fiber Cleaver is designed for high performance and high cost efficiency.
- Two steps operation, when the cover is opened, the slider returns to cleaving position automatically.
- Compact design
- High reliability
- Good cleaving performance
- 48,000 times cleave per blade
- High stability and precision
- FTTx construction
- Optical network construction
- LAN, WAN, and Metro networks
- CATV networks
| Fiber Type | single fiber |
| Cladding Diameter | 125um |
| Fiber Diameter | 250um/900um/2mm/3mm/2*3mm flat drop cable |
| Cleave Angle Capability | typically <0.5˚, max. <1˚ |
| Cleave Length | 5~15mm |
| Blade Lifetime | 48,000 fiber cleaves (1,000 times*24 positions*2 blade heights) |
| Dimension | 58W*55D*54H (mm) |
| Weight | 210g |
| Plastic Box Size | 112W*73.6D*62H (mm) |
| Gross Weight | 322g |
| Item | Name | Quantity |
| 1 | 915CL High Performance Fiber Cleaver with 1pc of Blade | 1pc |
| 2 | Fiber Collector | 1pc |
| 3 | Hexagonal Wrench | 1pc |
| 4 | User Manual | 1pc |
| 5 | Plastic Box | 1pc |
L16-35 3.5M Pocket Ruler
- The Hyper-Acry-Coat protective blade coating is non-reflective and provides superior scale readability
- Compact, ergonomic ABS case
- With locker
- Double-sided ruler
| Model | L16-35 |
| Length | 3.5 meters |
| Width | 16mm |
| Ruler Size | 62*59*25mm |
| Net Weight | 113g |
| Packing | Blister box |
| Packing Dimension | 131*105*37mm |
| Gross Weight | 130g |
