MAY17 Series Optical Power Meter

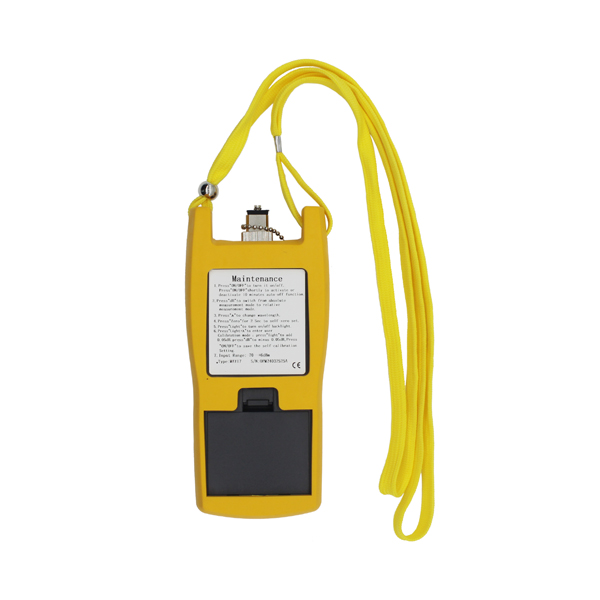

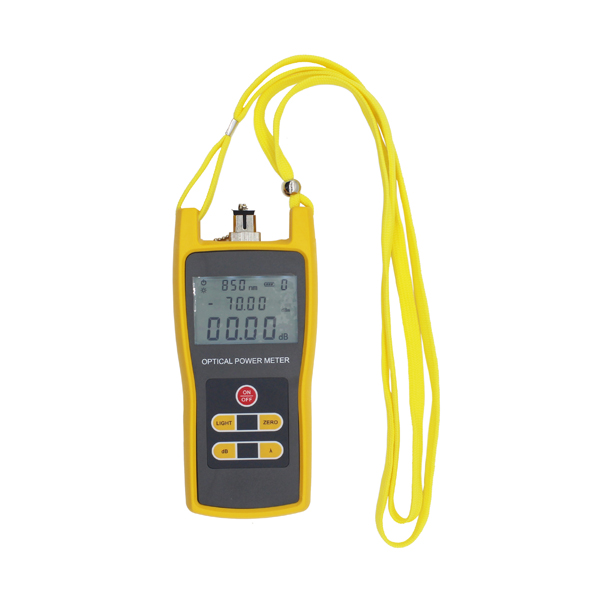

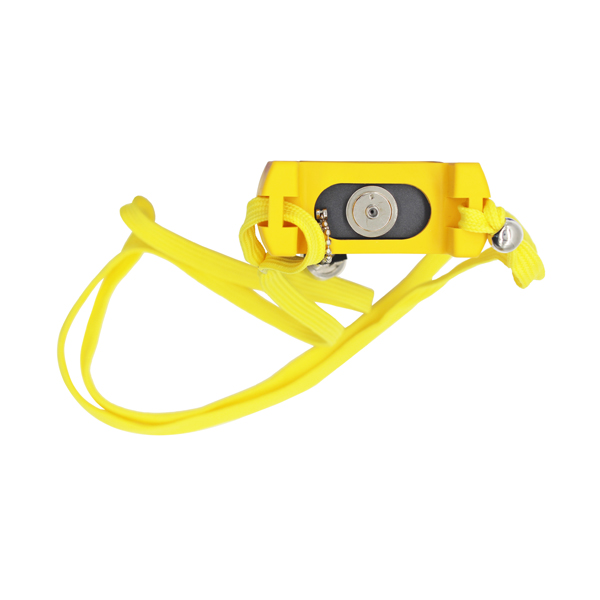

MAY17-3 Series – Interchangeable FC, SC, ST Adapters (Universal 2.5mm):

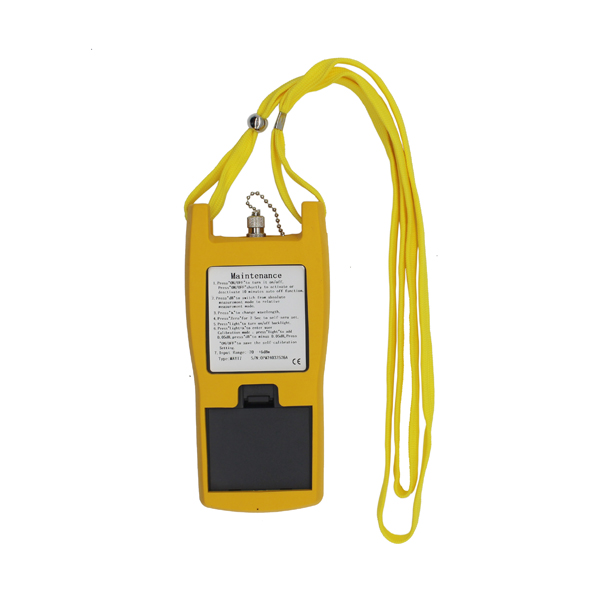

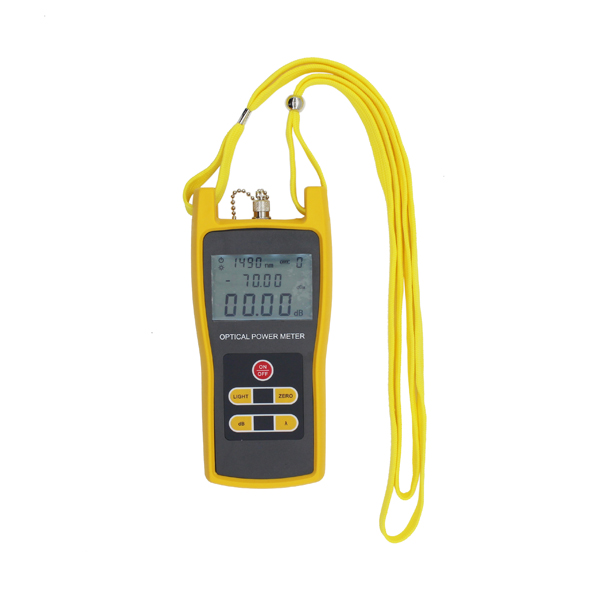

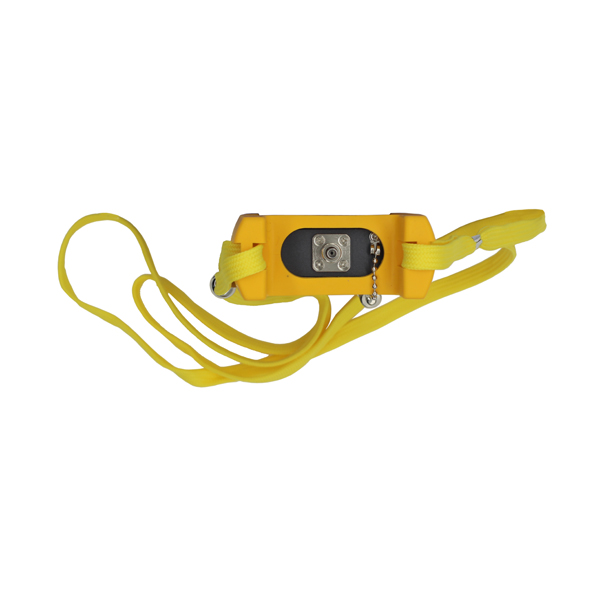

MAY17-1 Series – FC Adapter (Universal 2.5mm):
MAY17 Series Optical Power Meter is a compact and an easy-to-use testing instrument for optical fiber networks, which can be used for absolute optical power measurements as well as for relative loss measurements in optical fibers. It features ingenious appearance, wide range of power measurement, high accuracy and user self-calibration function with high performance-to-price ratio.
Features:
- User self calibration function
- Comfortable LCD display and optional backlight LCD display supports night operation
- Power measurements in dBm or mw and insertion loss in dB
- Low battery consumption, more than 240 hours continuous operation time for three 1.5V alkaline batteries
- 10 minutes Auto-off function can be activated or deactivated.
Applications:
- Maintenance in Telecom
- Maintenance CATV
- Fiber Optic Lab Testing
- Other Fiber Optic Measurements
Specification:
| Model | MAY17A-3 / MAY17A-1 | MAY17B-3 / MAY17B-1 | ||
| Measuring Range | -70 to +6dBm | -50 to +26dBm | ||
| Calibrated Wavelength | 850/980/1300/1310/1490/1550/1625/1650nm | |||
| Wavelength | 800~1700nm | |||
| Detector Type | InGaAs | |||
| Resolution | 0.01dB | |||
| Linearity | ±5% | |||
| Automatic Shutoff Time | 10min | |||
| Continuous Working Time | 240h | |||
| Connector | MAY17A-3 / MAY17B-3: Interchangeable FC, SC, ST (Universal 2.5mm);
MAY17A-1 / MAY17B-1: FC (Universal 2.5mm) |
|||
| Power supply | 3*AA 1.5V dry alkaline batteries | |||
| Backlight | Yes | |||
| Dimension | 175*82*33mm | |||
| Weight | 310g | |||
| Operating Temperature | -10 to +60℃ | |||
| Storage Temperature | -25 to +70℃ | |||
| Relative Humidity | 0~95% (non-condensing) | |||
Standard Accessory:

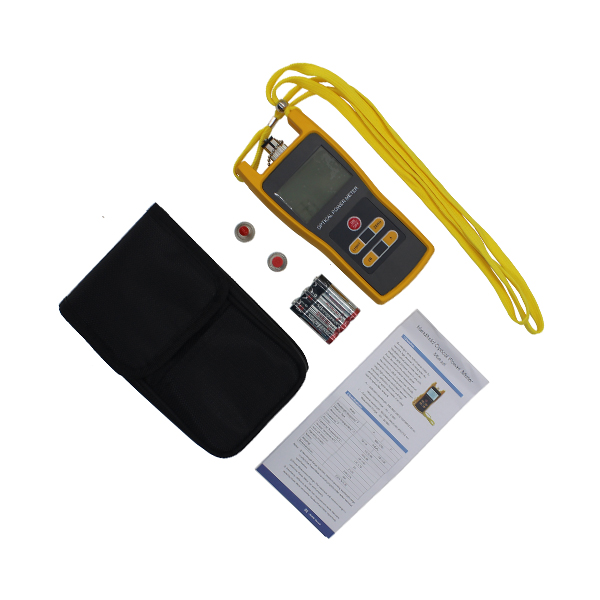

1.MAY17A-3 / MAY17B-3 Optical Power Meter with SC Adapter Attached:
1.MAY17A-3 / MAY17B-3 Optical Power Meter with SC Adapter Attached:
| Item | Name | Quantity |
| 1 | Optical Power Meter with SC Adapter and Belt | 1pc |
| 2 | User Manual | 1pc |
| 3 | AA Dry Batteries | 3pcs |
| 4 | FC Adapter | 1pc |
| 5 | ST Adapter | 1pc |
| 6 | Soft Bag | 1pc |
2. MAY17A-3 / MAY17B-3 Optical Power Meter with FC Adapter Attached:
| Item | Name | Quantity |
| 1 | Optical Power Meter with FC Adapter and Belt | 1pc |
| 2 | User Manual | 1pc |
| 3 | AA Dry Batteries | 3pcs |
| 4 | SC Adapter | 1pc |
| 5 | ST Adapter | 1pc |
| 6 | Soft Bag | 1pc |

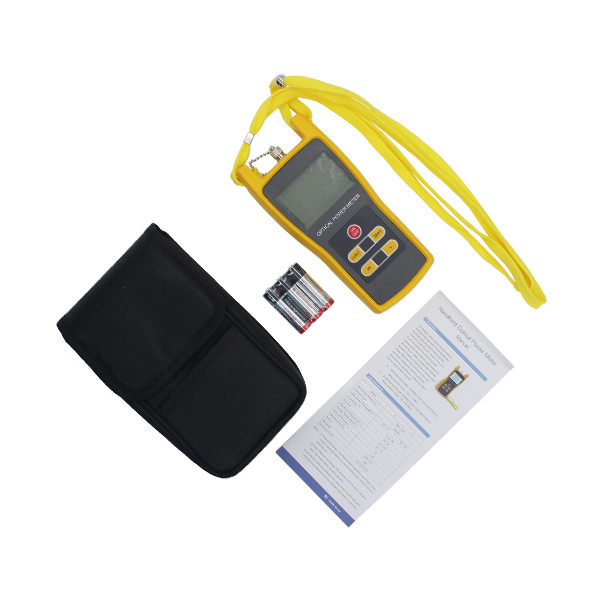

3. MAY17A-1 / MAY17B-1 Optical Power Meter with FC Adapter Attached:
| Item | Name | Quantity |
| 1 | Optical Power Meter with SC Adapter and Belt | 1pc |
| 2 | User Manual | 1pc |
| 3 | AA Dry Batteries | 3pcs |
| 4 | Soft Bag | 1pc |
Optional Accessory:
| Item | Name | Quantity |
| 1 | Male FC to female LC adapter for LC connector | 1pc |
Ordering Information:
Model: MAY17X-X
Model: MAY17X-X
| Model | X: OPM Range | X: Optical Port |
| MAY17 | A: -70~+6dBm | 3: Interchangeable FC, SC, ST Adapters (Universal 2.5mm) |
| B: -50~+26dBm | 1: FC Adapter (Universal 2.5mm) |
