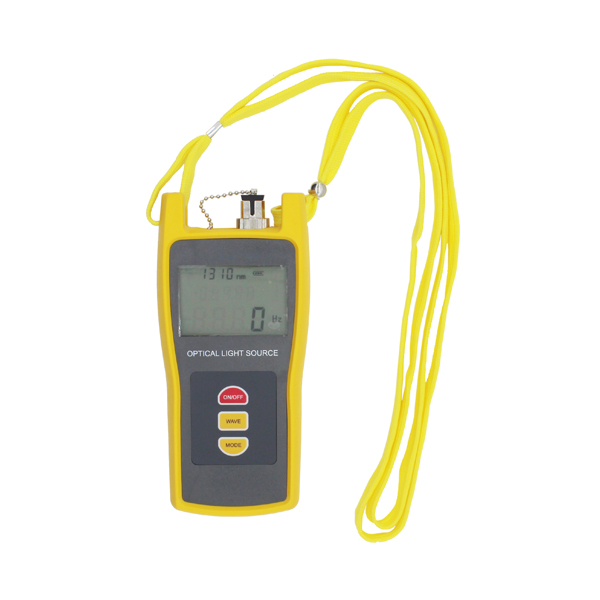

MAY37-LC Series Optical Light Source with Specialized LC Adapter





SC Adapter

FC Adapter

LC Adapter
MAY37-LC Series Optical Light Source can provide 1 to 4 wavelengths output according to the specific requirements including 1310/1550nm wavelengths for the single mode fiber and 850/1300nm wavelengths for the multimode fiber or other wavelengths according to customer needs. Together with MAY17-LC Series Optical Power Meter, it acts as a perfect solution for the fiber optic network.
Features:
- Support backlight
- High stability of the output power
- Stable output wavelength
- Compact size and decent appearance
- Large LCD, easy operation
Applications:
- Telecommunication networks
- CATV networks
- Cabling systems engineering
- Research and education
Specification:
Output Wavelength | 1310/1550nm | 850/1300nm | 1310/1490/1550nm | 850/1300/1310/1550nm |
Fiber Type | SM | MM | SM | SM & MM |
Emitter Type | FP-LD | |||
Output Power | ≥-7dBm | |||
Spectral Width | ≤10nm | |||
Output Stability | Short term (15 min): ±0.05dB@1310/1550nm, ±0.1dB@850/1300nm, ±0.1dB@1490nm
Long term (8 hours): ±0.1dB@1310/1550nm, ±0.2dB@850/1300nm, ±0.2dB@1490nm |
|||
Output Frequency(Hz) | CW, 270Hz, 1kHz, 2kHz | |||
Continuous Working Time | 45h | |||

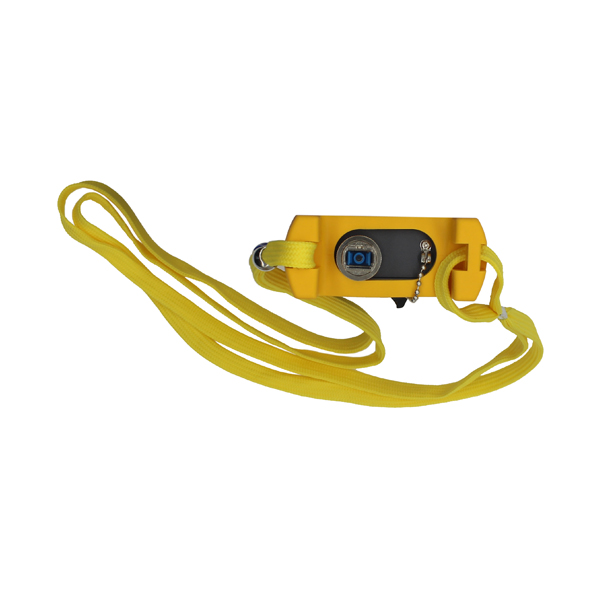

Connector | Interchangeable FC, SC, LC | |||
Power supply | 3*AA 1.5V dry alkaline batteries | |||
Dimension | 175*82*33mm | |||
Net Weight | 245g | |||
Operating Temperature | -10 to +60°C | |||
Storage Temperature | -25 to +70°C | |||
Relative Humidity | 0~95% (non-condensing) |

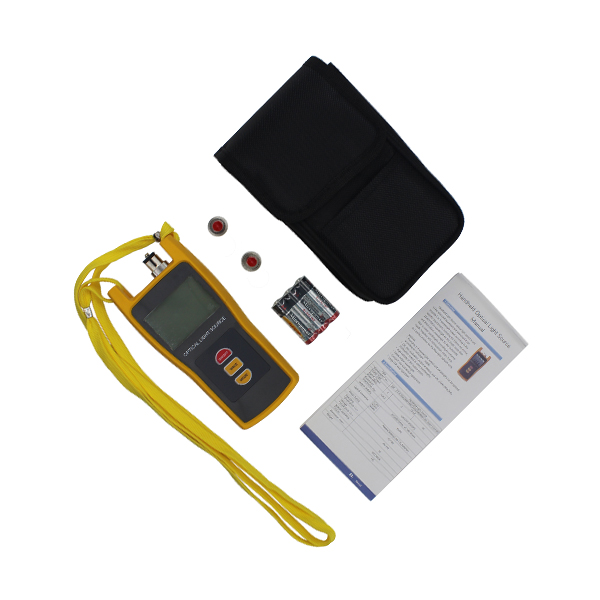

Standard Accessory:
1. MAY37-LC for 1310/1550nm or 850/1300nmwith SC Adapter Attached:
1. MAY37-LC for 1310/1550nm or 850/1300nmwith SC Adapter Attached:
Item | Name | Quantity |
1 | Optical Light Source with SC Adapter and Belt | 1pc |
2 | User Manual | 1pc |
3 | FC Adapter | 1pc |
4 | Specialized LC Adapter | 1pc |
5 | AA Dry Battery | 3pcs |
6 | Soft Bag | 1pc |
2. MAY37-LC for 1310/1550nm or 850/1300nmwith FC Adapter Attached:
Item | Name | Quantity |
1 | Optical Light Source with FC Adapter and Belt | 1pc |
2 | User Manual | 1pc |
3 | SC Adapter | 1pc |
4 | Specialized LC Adapter | 1pc |
5 | AA Dry Battery | 3pcs |
6 | Soft Bag | 1pc |
Ordering Information:
Model: MAY37-LC-X-X
Note: Optical port for 850/1300nm is UPC interface.
Model: MAY37-LC-X-X
Model | X: Output Wavelength | X: Interface |
MAY37-LC | S: 1310/1550nm | None: UPC (default) |
M: 850/1300nm | A: APC | |
T: 1310/1490/1550nm | ||
Q: 850/1300/1310/1550nm |
