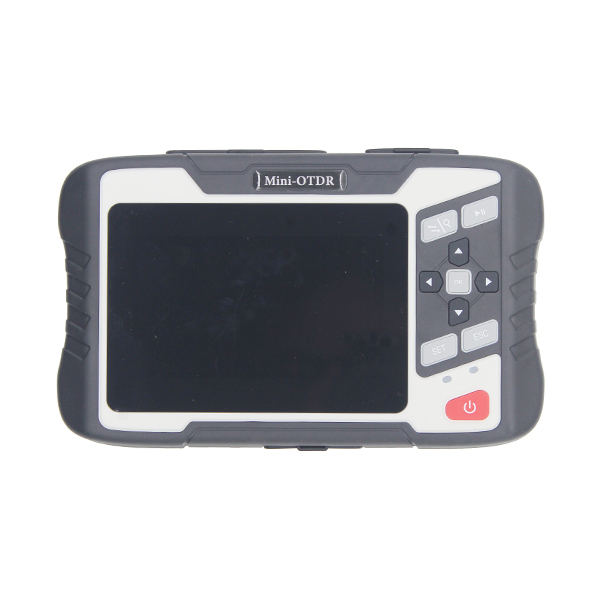

MAY450 Mini OTDR
FC Adapter for OTDR Port (Standard)
SC Adapter for OTDR Port (Standard)
Network Cable Tracker (Standard)
UK Power Adapter (For Selection)
EU Power Adapter (For Selection)
US Power Adapter (For Selection)
LC Adapter for OTDR Port (Optional)
ST Adapter for OTDR Port (Optional)
Description:
MAY450 series Mini OTDR adopts a 4.3-inch capacitive touch screen. It is integrated with OTDR, Event map, OPM, and RJ45 cable tracker. MAY450 series Mini OTDR has a maximum dynamic range of 30dB, and 8G memory, which can store more than 200,000 curves. It is equipped with a high-density polymer lithium battery, intelligent power saving management, measuring time of up to 11 hours, and supports power supply and charging of the power bank. MAY450 series Mini OTDR is matched with powerful internal analysis software, which can provide accurate data services for terminal testers.
MAY450 series Mini OTDR is used to measure the length, loss, connection quality, and other parameters of optical fiber. It is widely used in FTTX, secondary backbone network engineering, construction, maintenance, and emergency repair, test, and production measurement of optical fiber and cable.
Features:
- Buttons and 4.3-inch full-touch screen control, with 800×480 resolution
- Multi-touch, Support gesture zoom in and out curve
- Event blind area ≤5m, maximum dynamic range ≥ 30dB
- Support launch fiber, receive fiber, pass/fail settings, and judgments
- Support XGPON OPM, 1490/1577nm power is accurately measured simultaneously (optional)
- Computer level file management
- Strong backlight mode, the screen display is clearer under sunlight.

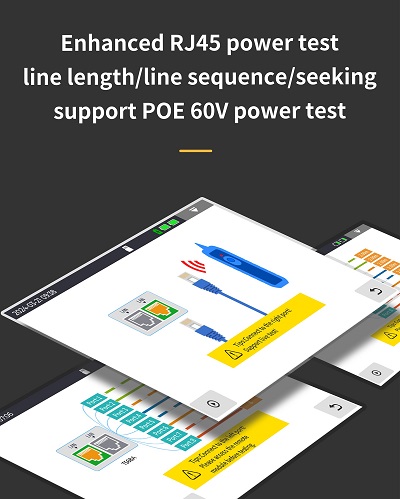

- Enhanced RJ45 with power live test, RJ45 cable length/sequence/tracking, Support PoE 60V power live test.
- Automatic judgement of fiber connector status when coupling with OTDR port, currently for UPC polish
- Support mobile phone Bluetooth, APP control, Reports can be generated on site and shared.

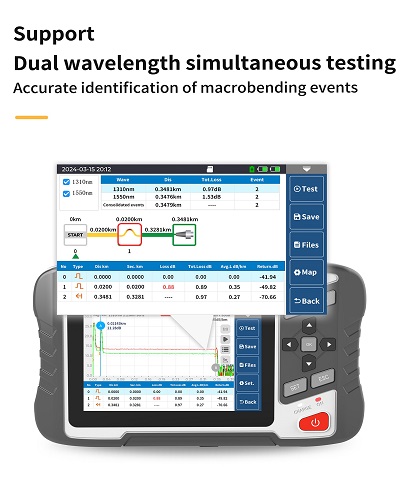

- Support dual wavelength simultaneous testing, support macrobend/low light testing, and accurate identification of macrobending events.

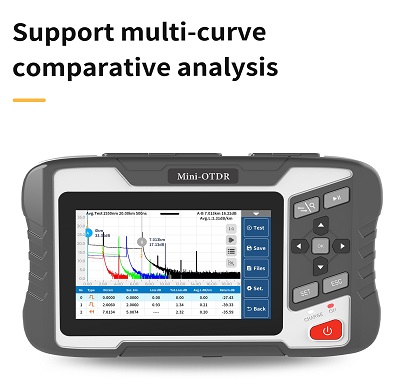

- Support multi-curve comparative analysis.
- Up to 11h of operation and 6h of charging for dual batteries.
- Ergonomic design, Easy to hold.

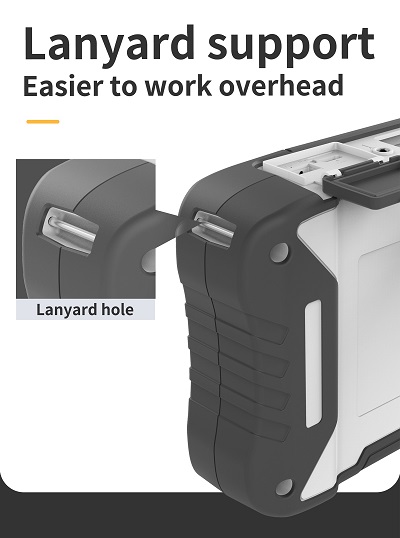

- Lanyard support, easier for over head work
- Up to 4x processor performance, 200M upgraded to 900M.

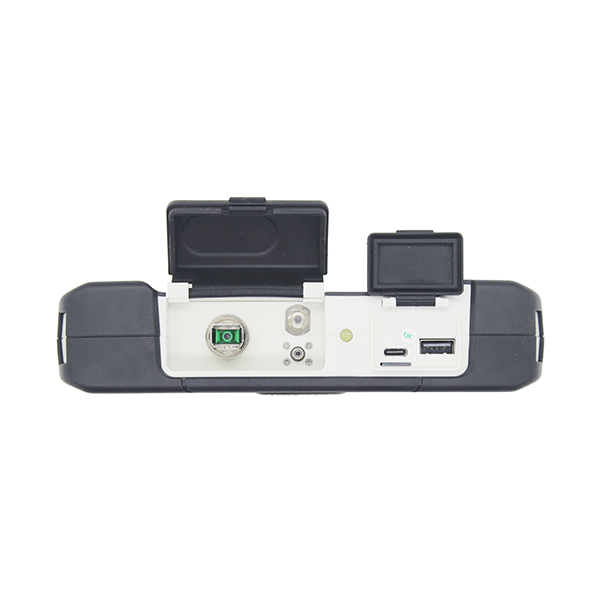

- L-shaped dust cover, easier for the replacement of optical interfaces.
Applications:
- CATV network testing
- Access network testing
- LAN network testing
- Laband Factory testing
- FTTA troubleshooting
Multi-functions:
- OTDR
- AI Event (Event Map)
Event Map can display events in user-friendly icons. - VFL (Visual Fault Locator)
Visual Fault Locator uses red laser of 650nm to locate broken fiber point and test fiber continuity. - Multimeter
Laser Source, and Insertion Loss (OPM and OLS can be opened at the same time to test insertion loss.) - Network cable
It can check wire map, measure the length of RJ45 cable, and trace and locate the RJ45 network cable. - OPM (Optical Power Meter)
- Flashlight
- Microscope
Microscope is used to check fiber optic connector endface. The microscope probe is sold separately.
Specification:
1. OTDR
1. OTDR
| Model | MAY450-S24F1 (live test) | MAY450-S24F2 (live test) | MAY450-S24F3 (live test) | MAY450-S24F4 (live test) | MAY450-D26 | MAY450-D30 | MAY450-T26 |
| Fiber Type | G.652 SM | ||||||
| Wavelength | 1550 ±20nm with filter | 1610 ±20nm with filter | 1625 ±20nm with filter | 1650 ±20nm with filter | 1310/1550±20nm (no filter) | 1310/1550±20nm (no filter) | 1310/1550/1625±20nm (1625nm with filter) |
| Dynamic Range | 24dB | 24dB | 24dB | 24dB | 26/24dB | 30/28dB | 26/24/24dB |
| Event Dead Zone | 1.5m | ||||||
| Attenuation Dead Zone | 8m | ||||||
| Measurement Range | 0.1km, 0.5km, 1.25km, 2.5km, 5km, 10km, 20km, 40km, 80km, 125km, 260km | ||||||
| Measurement Pulse Width | 3ns, 5ns, 10ns, 20ns, 30ns, 50ns, 80ns, 100ns, 200ns, 300ns, 500ns, 800ns, 1us, 2us, 3us, 5us, 8us, 10us, 20us | ||||||
| Ranging Accuracy | ±(1m+Sampling interval+0.005%×Test distance) | ||||||
| Linearity | ≤0.05dB/dB | ||||||
| Max Sample Points | ≥160k | ||||||
| Sample Resolution | 0.03m~16m | ||||||
| Loss Threshold | 0.2dB | ||||||
| Loss Resolution | 0.001dB | ||||||
| Range Resolution | 0.001m | ||||||
| Refractive Index | 1.00000~2.00000 | ||||||
| File Format | SOR Standard file format | ||||||
| Loss Analysis | 4-point method/5-point method | ||||||
| Refresh Rate | 3Hz (Typ.) | ||||||
| Connector | FC (Interchangeable SC) | ||||||
| Multi-Languages | English, Spanish, Vietnamese, German, French, Portuguese | ||||||
2. Optical Power Meter
| Wavelength Range | 800~1700nm |
| Calibration Wave | 850/980/1270/1300/1310/1342/1490/1550/1577/1625/1650nm |
| Test Range | Type A: -70~+6dBm (optional); Type B: -50~+26dBm (standard); -40~+26dBm (XGPON OPM) |
| Resolution | 0.01dB |
| Uncertainty | ±5% |
| Frequency Identification | CW/270/330/1k/2kHz |
| Connector | Universal 2.5mm (FC/SC/ST) |
3. Optical Light Source
Note:
3.1. The wavelength of Optical Light Source is the same as OTDR wavelength.
3.2. Optical Light Source shares the same fiber port as OTDR port.
| Working Wavelength | Same as OTDR |
| Power | ≥-5dBm |
| Mode | CW/270Hz/330Hz/1kHz/2kHz |
| Stability | CW, ±0.5dB/15min (After 15min of preheating) |
| Connector | Consistent with the OTDR interface |
3.1. The wavelength of Optical Light Source is the same as OTDR wavelength.
3.2. Optical Light Source shares the same fiber port as OTDR port.
4. Visual Fault Locator
| Wavelength | 650nm±20nm |
| Power | ≥10mW |
| Mode | CW/1Hz/2Hz |
| Connector | Universal 2.5mm (FC/SC/ST) |
5. RJ45 Cable Length
| Test Range | ≤300m |
6. RJ45 Cable Tracking
| Mode | Digital tracking |
| Distance | ≤300m |
| Online/Line Pair Tracking | Support |
Other Specification:
| Display | 4.3 inches 800×480 IPS TFT-LCD Multi-touch capacitive touch screen |
| Power Supply | AC/DC adapter: input: 100~240V, 50/60Hz, 0.6A, output: 5V, 2A, Lithium battery: 3.7V, ≥5,000mAh*2 |
| Data Storage | 8GB, ≥200,000 curves |
| Data Interface | USB Type-C |
| Weight | ≤0.6kg (including battery) |
| Size | 189*115*43mm |
| Operating Temperature | -10 ~ +50°C |
| Storage Temperature | -40 ~ +70°C |
| Relative Humidity | 0~95% Non-condensing |

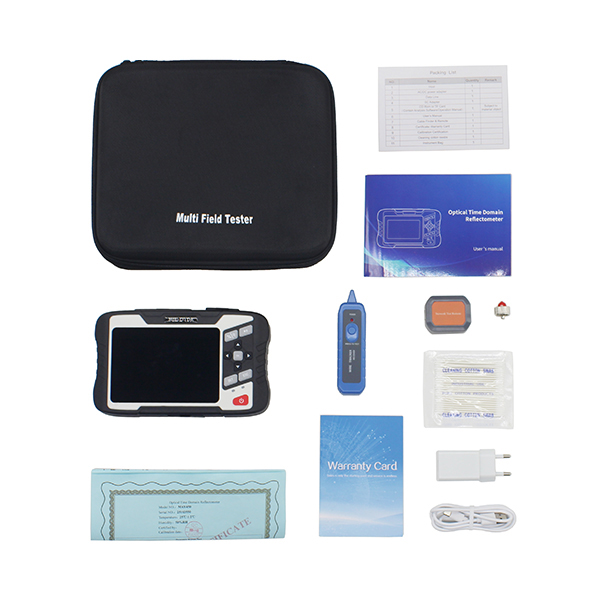

Standard Accessories:
| Item | Name | Quantity |
| 1 | OTDR with FC Adapter | 1pc |
| 2 | AC/DC Power Adapter | 1pc |
| 3 | Data Line | 1pc |
| 4 | 8G TF Card (built-in User Manual) | 1pc |
| 5 | User Manual | 1pc |
| 6 | SC adapter for OTDR port | 1pc |
| 7 | Network Cable Tracker | 1pc |
| 8 | Network Test Remote | 1pc |
| 9 | Warranty Card | 1pc |
| 10 | Calibration Certificate | 1pc |
| 11 | Cleaning Cotton Swabs (15pcs/bag) | 1 bag |
| 12 | Carrying Bag | 1pc |
Optional Accessories:
| Item | Name | Quantity |
| 1 | LC Adapter for OTDR Port | 1pc |
| 2 | ST Adapter for OTDR Port | 1pc |
Ordering Information:
Note:
MAY450-S24F1: 1550nm test capability with live can test fiber with 1310/1490/1577nm signal (power ≤+5dBm);
MAY450-S24F2: 1610nm test capability with live can test fiber with 1310/1490/1550nm signal (power ≤0dBm);
MAY450-S24F3: 1625nm test capability with live can test fiber with 1310/1490/1550/1577nm signal (power ≤0dBm);
MAY450-S24F4: 1650nm test capability with live can test fiber with 1310/1490/1550/1577nm signal (power ≤+5dBm)
MAY450-T26: 1625nm test capability with live can test fiber with 1310/1490/1550/1577nm signal (power ≤0dBm)
| Model | MAY450 |
| Wavelength and Dynamic Range | S24F1: 1550nm with filter, 24dB
S24F2: 1610nm with filter, 24dB S24F3: 1625nm with filter, 24dB S24F4: 1650nm with filter, 24dB D26: 1310/1550nm, 26/24dB D30: 1310/1550nm, 30/28dB T26: 1310/1550/1625nm (1625nm with filter), 26/24/24dB |
| Power Meter | A: -70~+6dBm (optional)
B: -50~+26dBm (default) |
| Connector | None: FC/UPC and SC/UPC (default)
A: FC/APC and SC/APC |
| Splitting Optical Power Meter | None: without XGPON 1490/1577nm simultaneously
X: with XGPON 1490/1577nm simultaneously |
MAY450-S24F1: 1550nm test capability with live can test fiber with 1310/1490/1577nm signal (power ≤+5dBm);
MAY450-S24F2: 1610nm test capability with live can test fiber with 1310/1490/1550nm signal (power ≤0dBm);
MAY450-S24F3: 1625nm test capability with live can test fiber with 1310/1490/1550/1577nm signal (power ≤0dBm);
MAY450-S24F4: 1650nm test capability with live can test fiber with 1310/1490/1550/1577nm signal (power ≤+5dBm)
MAY450-T26: 1625nm test capability with live can test fiber with 1310/1490/1550/1577nm signal (power ≤0dBm)
