MAY93 WiFi Fiber Microscope
Standard Accessories
Standard Tips:
SC-PC-F Tip (For SC/PC adaptor)
FC-PC-F Tip (For FC/PC adaptor)
LC-PC-F Tip (For LC/PC adaptor)
2.5PC-M Tip (For 2.5mm connectors, SC/PC, FC/PC, ST/PC)
Features:
- WiFi connection to Smartphone and USB connection to Smartphone and PC
- Android App and iOS (Apple) App both
- Pass/Fail Analysis to IEC 61300-3-35
- Several tips available (Both female and male tips)
- External Interface: micro USB
- Save inspected images and reports
- Real-time report in field through smartphone
- Built-in rechargeable battery
- No need exterior Wireless AP or Module
- Ergonomics design and Easy Focus
- Emergency lamp and power indicator light available
| Items | Value |
| Magnification | 400X |
| Resolution | <1.0μm |
| Field of View | X: 0.3487mm Y: 0.2632mm |
| Laser Source | Blue LED |
| Focus Method | Unidirectional manual |
| Focus Time | 1~5 seconds |
| Snapshot Button | yes |
| WiFi and USB Switch Button | yes |
| Communication Port | Micro USB |
| Connection Standard | WiFi 802.11 and USB2.0 |
| Wireless Frequency | 2.4GHz |
| Wireless Transmission Distance | 20m |
| Smartphone Compatibility | Android 4.4 and above; IOS 8.0 and above |
| Voltage | 5V |
| Battery | 3100mHA Lithium battery |
| Charging Time | ≤5h |
| Testing Time | ≥5h |
| Dimension | 19*5*3cm |
| Weight | 0.175kg |
| Working Temperature | -10℃~50℃ |
| Storage Temperature | -20℃~60℃ |
| Humidity | <90% (non-condensing) |
| Name | Quantity |
| MAY93 Fiber Microscope | 1pc |
| SC-PC-F Tip (For SC/PC adaptor) | 1pc |
| FC-PC-F Tip (For FC/PC adaptor) | 1pc |
| LC-PC-F Tip (For LC/PC adaptor) | 1pc |
| 2.5PC-M Tip (For 2.5mm connectors, SC/PC, FC/PC, ST/PC, E2000/PC) | 1pc |
| USB Cable | 1pc |
| User Manual | 1pc |
| Pass/Fail Analysis Software in Android App and iOS (Apple) App | 1pc |
| Soft Bag | 1pc |
| Name | Quantity |
| Pass/Fail Analysis Software in PC | 1pc |
| ST-PC-F Tip (For ST/PC adaptor) | 1pc |
| MU-PC-F Tip (For MU/PC adaptor) | 1pc |
| E2000-PC-F Tip (For E2000/PC adaptor) | 1pc |
| MTRJ-PC-F Tip (For MTRJ/PC adaptor) | 1pc |
| 1.25PC-M Tip (For 1.25mm connectors, LC/PC, MU/PC) | 1pc |
| SMA-PC-M Tip (For SMA/PC connector) | 1pc |
| FC-APC-F Tip (For FC/APC adaptor) | 1pc |
| SC-APC-F Tip (For SC/APC adaptor) | 1pc |
| LC-APC-F+ Tip (For LC/APC adaptor) | 1pc |
| E2000-APC-F Tip (For E2000/APC adaptor) | 1pc |
| 2.5APC-M Tip (For 2.5mm connectors, SC/APC, FC/APC, ST/APC, E2000/APC) | 1pc |
| 1.25APC-M Tip (For LC/APC connector) | 1pc |
| LC-APC-L Long Tip (For LC/APC adaptor) | 1pc |
| LEMO-PC-F&M Tip (For LEMO/PC male connector and female adaptor) | 1pc |
| ODC2.5-PC-F Tip (For 2.5mm PC connector in ODC connector) | 1pc |
| QSFP-LC-PC-F Tip (For LC/PC connector in SFP transceivers, like 40GBASE-LR4 QSFP+) | 1pc |
| MPO-PC-F Tip (For MPO/PC adaptor) | 1pc |
| MPO-APC-F Tip (For MPO/APC adaptor) | 1pc |
| MT-PC-F Tip (For MT/PC ferrule and MPO/PC adaptor) | 1pc |
| MT-APC-F Tip (For MT/APC ferrule and MPO/APC adaptor) | 1pc |
| MPO-PC Tip (For MPO/PC connector in SFP transceivers, like 40GBASE-SR4 QSFP+) | 1pc |
| MPO-APC Tip (For MPO/APC connector in SFP transceivers, like 40GBASE-SR4 QSFP+) | 1pc |
| Tip60 Base (60 degree base for special tips) | 1pc |
| FC-PC-60F Tip (For FC/PC adaptor at 60 degree testing) | 1pc |
| SC-PC-60F Tip (For SC/PC adaptor at 60 degree testing) | 1pc |
| LC-PC-60F Tip (For LC/PC adaptor at 60 degree testing) | 1pc |
| LC-APC-60F Tip (For LC/APC adaptor at 60 degree testing) | 1pc |
| SC-APC-60F Tip (For SC/APC adaptor at 60 degree testing) | 1pc |
| E2000-APC-60F Tip (For E2000/APC adaptor at 60 degree testing) | 1pc |
| FC-APC-60F Tip (For FC/APC adaptor at 60 degree testing) | 1pc |
| Tip-L Tip (Base for long tips) | 1pc |
| FC/SC-PC-L Long Tip (For FC/PC and SC/PC adaptor) | 1pc |
| LC-PC-L Long Tip (For LC/PC adaptor) | 1pc |
| LC-APC-L Long Tip (For LC/APC adaptor) | 1pc |
| SC-APC-L Long Tip (For SC/APC adaptor) | 1pc |
| E2000-APC-L Long Tip (For E2000/APC adaptor) | 1pc |
| FC-APC-L Long Tip (For FC/APC adaptor) | 1pc |
Optional Tips:
ST-PC-F Tip (For ST/PC adaptor)
MU-PC-F Tip (For MU/PC adaptor)
E2000-PC-F Tip (For E2000/PC adaptor)
MTRJ-PC-F Tip (For MTRJ/PC adaptor)
1.25PC-M Tip (For 1.25mm connectors, LC/PC, MU/PC)
SMA-PC-M Tip (For SMA/PC connector)
FC-APC-F Tip (For FC/APC adaptor)
SC-APC-F Tip (For SC/APC adaptor)
LC-APC-F+ Tip (For LC/APC adaptor)
E2000-APC-F Tip (For E2000/APC adaptor)
2.5APC-M Tip (For 2.5mm connectors, SC/APC, FC/APC, ST/APC, E2000/APC)
1.25APC-M Tip (For LC/APC connector)
LC-APC-L Long Tip (For LC/APC adaptor)
LEMO-PC-F&M Tip (For LEMO/PC male connector and female adaptor)
ODC2.5-PC-F Tip (For 2.5mm PC connector in ODC connector)
QSFP-LC-PC-F Tip (For LC/PC connector in SFP transceivers, like 40GBASE-LR4 QSFP+)
MPO-PC-F Tip (For MPO/PC adaptor)
MPO-APC-F Tip (For MPO/APC adaptor)
MT-PC-F Tip (For MT/PC ferrule and MPO/PC adaptor)
MT-APC-F Tip (For MT/APC ferrule and MPO/APC adaptor)
MPO-PC Tip (For MPO/PC connector in SFP transceivers, like 40GBASE-SR4 QSFP+)
MPO-APC Tip (For MPO/APC connector in SFP transceivers, like 40GBASE-SR4 QSFP+)
Tip60 Base (60 degree base for special tips)
FC-PC-60F Tip (For FC/PC adaptor at 60 degree testing)
SC-PC-60F Tip (For SC/PC adaptor at 60 degree testing)
LC-PC-60F Tip (For LC/PC adaptor at 60 degree testing)
LC-APC-60F Tip (For LC/APC adaptor at 60 degree testing)
SC-APC-60F Tip (For SC/APC adaptor at 60 degree testing)
Tip60 Base and SC-PC-60F Tip For SC/PC adaptor at 60 degree testing
Tip-L Tip (Base for long tips)
Tip-L Tip Base for long tips and LC-PC-L Long Tip For LC/PC adaptor
Tip-L Tip Base for long tips and LC-APC-L Long Tip For LC/APC adaptor
Tip-L Tip Base for long tips and SC-APC-L Long Tip For SC/APC adaptor
Tip-L Tip Base for long tips and E2000-APC-L Long Tip For E2000/APC adaptor

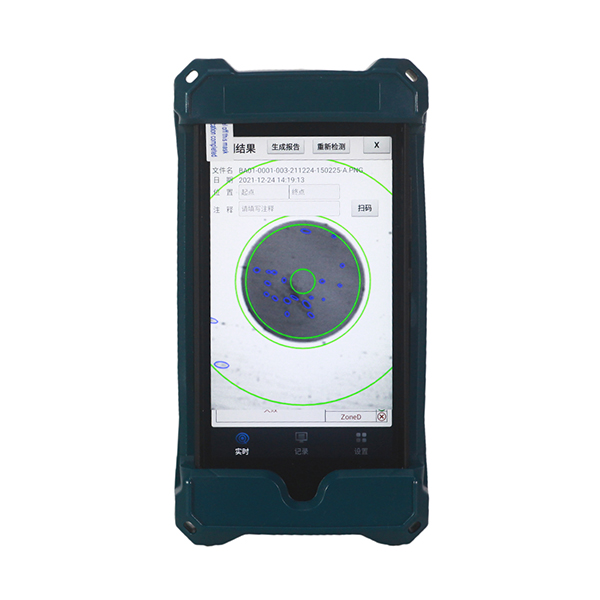

Optional Screen with Pass/Fail Analysis Function:
| Items | Value |
| Screen Size | 5 inch |
| Built-in Data Storage | 16GB |
| External Data Storage | Support TF card, maximum 128GB |
| Pass/Fail Analysis Feature | IEC standard Pass/Fail criteria |
| Screen Features | Touch/mechanical keys |
| Keyboards | Touch/mechanical keys |
| WiFi Feature | 2.4G Wireless connection |
| Dimension | 13.6(L)*7(W)*1(H)cm |
| Net Weight | 0.2kg |
| Working Temperature | -10℃~55℃ |
| Storage Temperature | -20℃~60℃ |
| Humidity | <90% (non-condensing) |
Applications:
Male tip for connectors application
Female tip for adaptors application
Tip60 at 60 degree testing application
Tip-L Tip with long tip application
Download:
1. IEC 61300-3-35 Standard
MAY93 WiFi Fiber Microscope – Pass and Fail APP in Android
MAY93 WiFi Fiber Microscope – Pass and Fail APP in iOS (Apple)
MAY93 WiFi Fiber Microscope – Pass and Fail Analysis Software in PC
MAY93 WiFi Fiber Microscope – Free Software in PC – No Pass and Fail Analysis
Change LC-APC-F-B Lens for LC-APC-F Female Tip for LC/APC Adapter
When testing female LC/APC adapter via Pass/Fail Software, LC-APC-F-B Lens are needed.
