MAY94-2 Fiber Microscope
Standard Accessories:
MAY94 probe
Interface
MAY94 probe and 3.5 inch display
Standard Package
Carrying Case
25-U-M Tip (For 2.5mm connectors, SC/PC, FC/PC, ST/PC, E2000/PC) (Standard)
125-U-M Tip (For 1.25mm connectors, LC/PC, MU/PC) (Standard)

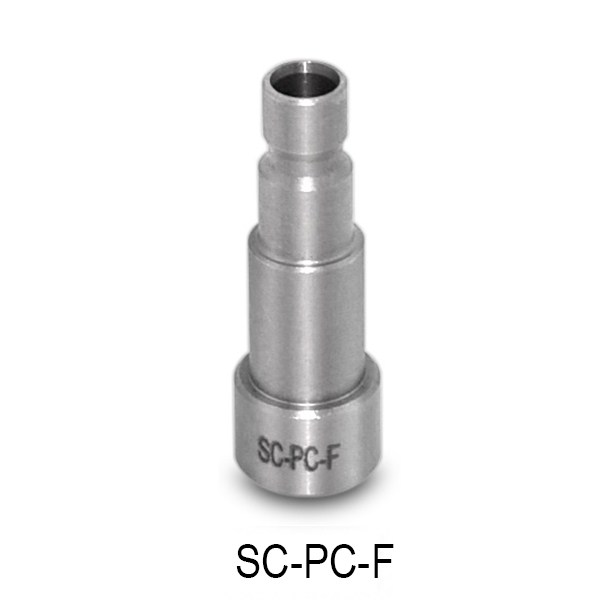

SC-PC-F Tip (For SC/PC adapter (Standard)

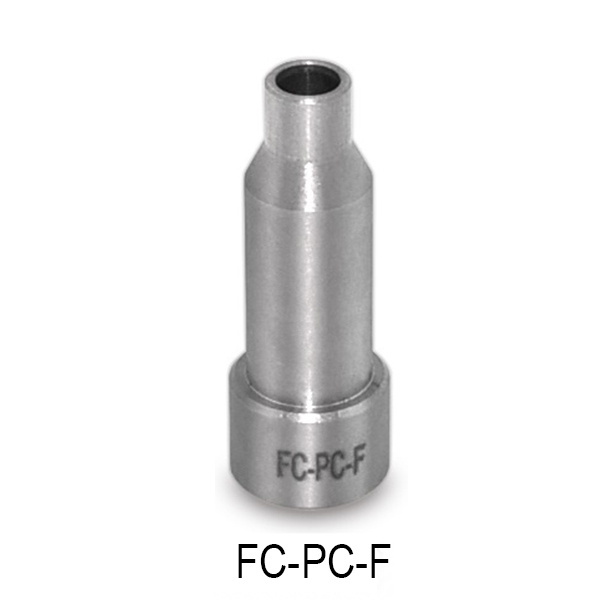

FC-PC-F Tip (For FC/PC adapter) (Standard)
LC-U-F Tip (For LC/PC adapter) (Standard)
Optional Accessories:

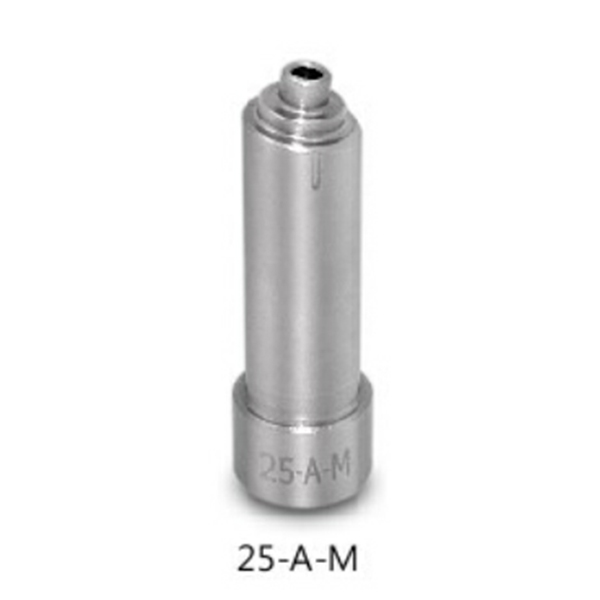

25-A-M Tip (For 2.5mm connectors, SC/APC, FC/APC, ST/APC, E2000/APC) (Optional)

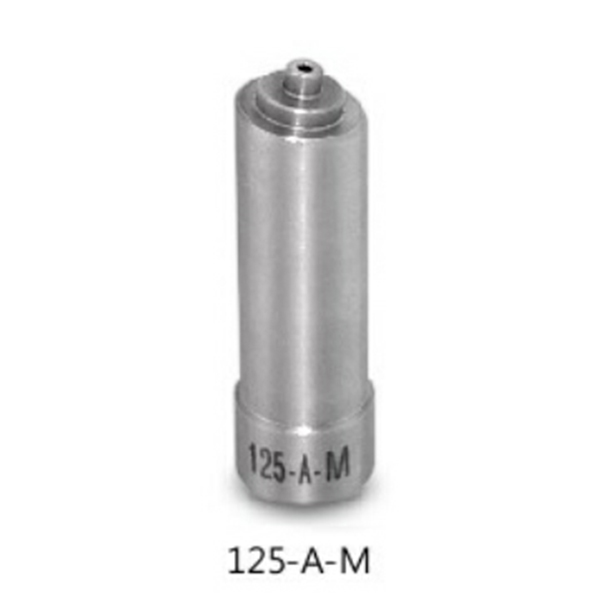

125-A-M Tip (For 1.25mm connectors, LC/APC, MU/APC) (Optional)

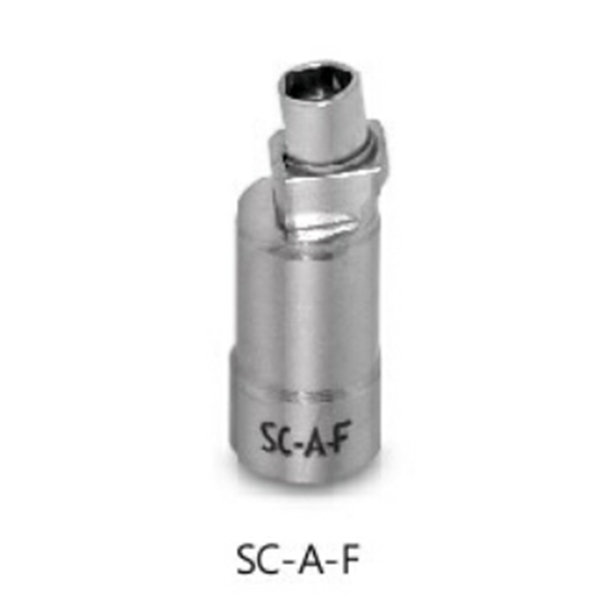

SC-A-F Tip (For SC/APC adapter) (Optional)

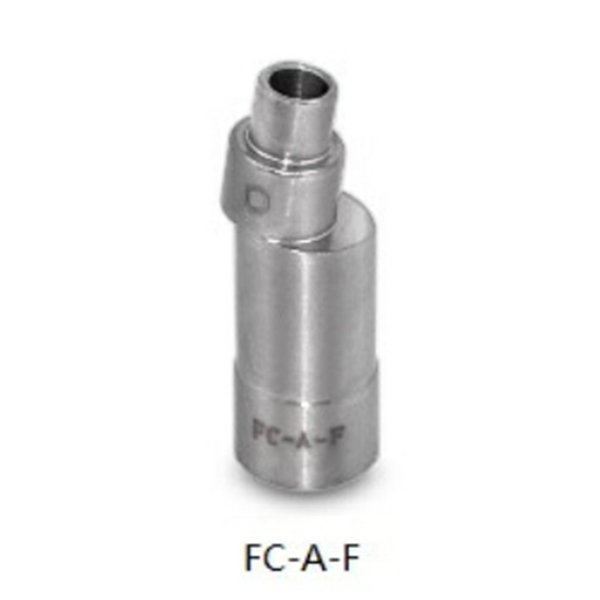

FC-A-F Tip (For FC/APC adapter) (Optional)

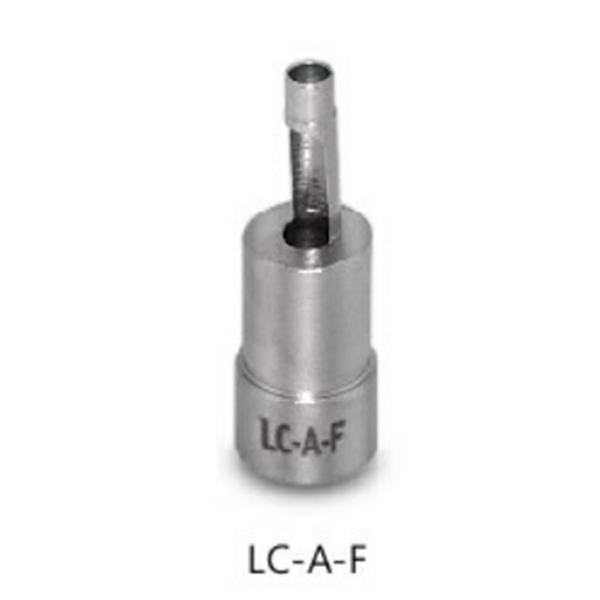

LC-A-F Tip (For LC/APC adapter) (Optional)

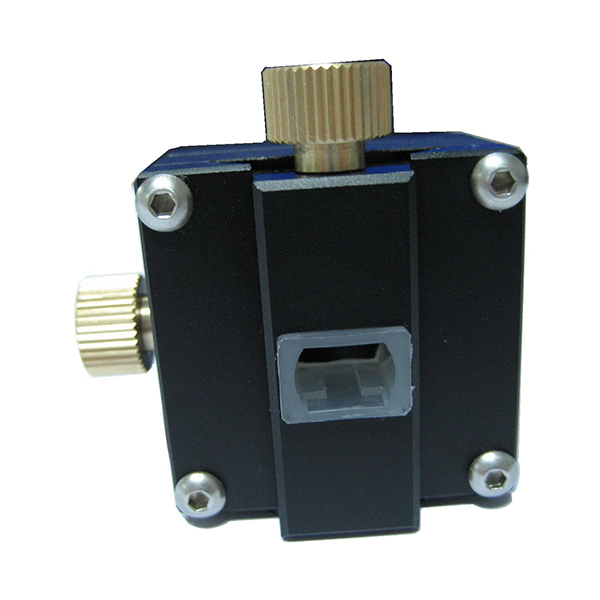

MPO-U-M Tip (For MPO/UPC MTP/UPC connector) (Optional)

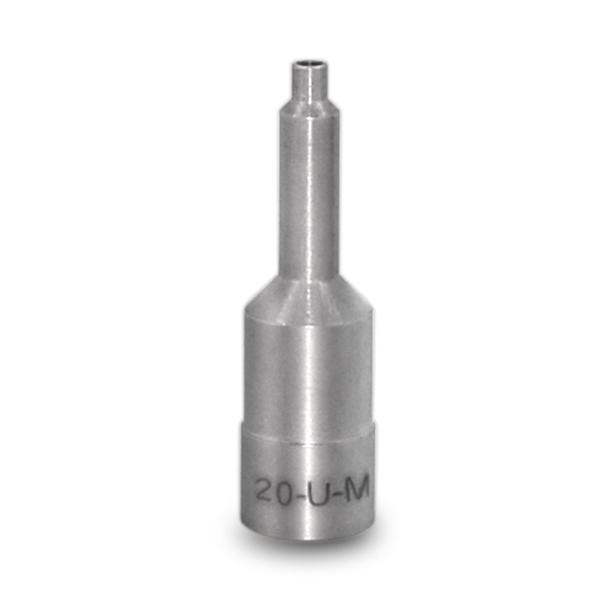

20-U-M Tip (For SMPTE/LEMO/UPC connector) (Optional)

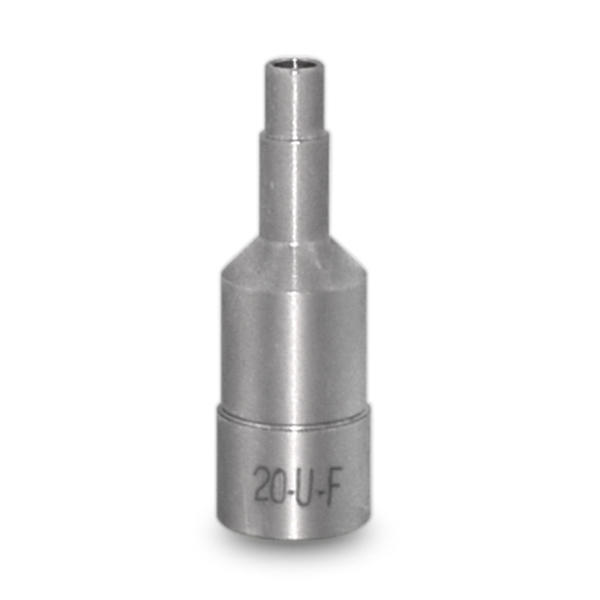

20-U-F Tip (For SMPTE/LEMO/UPC adapter) (Optional)
AV-USB 2.0 Converter for PC (Optional)
WiFi Converter for Android App and iOS (Apple) App in Smartphone (Optional)
Description:
MAY94-2 Fiber Microscope is used to inspect end-face of fiber optic connectors. It magnifies 125um fibers 250 times, enlarging picture through a video signal to the display where the status of fiber end-face is showed clearly.
Not only portable and easily in-hand, MAY94-2 Fiber Microscope is also multi-functional. It can detect fiber ends located in both male and female connectors. Also, working stably is it’s another feature. It eliminates the need to find solutions for hard-to-reach areas inspection, which can detect connectors even installed on the backside of patch panels or inside hardware devices, providing you a completely convenience for checking.
Features:
- Suitable for both male and female connectors
- USB 2.0 interface to connect PC for data saving (optional)
| Model | MAY94-2 |
| Image Zoom | 250X |
| Display Screen | 3.5” TFT-LCD, 960×240 pixels |
| AV Output | PAL/NTSC |
| Resolution | 1.0um |
| Power Supply | Li-ion battery 12.6V & AC/DC adapter |
| Working Temperature | -20°C~+50°C |
| Storage Temperature | -30°C~+60°C |
| Dimension | Probe: 180*40*35mm; Monitor: 145*75*40mm; Package 300*250*100mm |
| Weight | Probe: 0.16kg; Monitor: 0.28kg; Whole package: 1.5kg |
| Name | Quantity |
| MAY94 probe | 1pc |
| 3.5 inch display | 1pc |
| 25-U-M Tip (For 2.5mm connectors, SC/PC, FC/PC, ST/PC, E2000/PC) | 1pc |
| 125-U-M Tip (For 1.25mm connectors, LC/PC, MU/PC) | 1pc |
| SC-PC-F Tip (For SC/PC adapter) | 1pc |
| FC-PC-F Tip (For FC/PC adapter) | 1pc |
| LC-U-F Tip (For LC/PC adapter) | 1pc |
| Lithium battery | 1pc |
| AC/DC power adapter | 1pc |
| User manual | 1pc |
| Carrying Case | 1pc |
| Name | Quantity |
| 25-A-M Tip (For 2.5mm connectors, SC/APC, FC/APC, ST/APC, E2000/APC) | 1pc |
| 125-A-M Tip (For 1.25mm connectors, LC/APC, MU/APC) | 1pc |
| SC-A-F Tip (For SC/APC adapter) | 1pc |
| FC-A-F Tip (For FC/APC adapter) | 1pc |
| LC-A-F Tip (For LC/APC adapter) | 1pc |
| MPO-U-M Tip (For MPO/UPC MTP/UPC connector) | 1pc |
| MPO-A-M Tip (For MPO/APC MTP/APC connector) | 1pc |
| 20-U-M Tip (For SMPTE/LEMO/UPC connector) | 1pc |
| 20-U-F Tip (For SMPTE/LEMO/UPC adapter) | 1pc |
| AV-USB 2.0 Converter for PC | 1pc |
| WiFi Converter for Android App and iOS (Apple) App in Smartphone | 1pc |
Note: For MAY94 probe, there is no long tip, or angle tip.
MAY94-2 Fiber Microscope with Optional Cleaning Tools
| Item | Name | Quantity |
| 1 | Fiber Connector Cleaning Cassette | 1pc |
| 2 | Replacement Reel | 1pc |
| 3 | 1.25mm One-click Ferrule Mate Cleaner | 1pc |
| 4 | 2.5mm One-click Ferrule Mate Cleaner | 1pc |
Fiber Connector Cleaning Cassette
Replacement Reel
Description:
Fiber Optic Cleaning Cassette is essential to clean fiber optic connectors and guarantee good quality of fiber optic connection. It is simple and swift to use the best non-alcohol cleaning method for various fiber optic terminations.
It is suitable for connectors, like SC, FC, MU, LC, ST, D4, DIN, etc.
Replacement Reel is offered to make sure low cleaning cost.
Features:
- Special non-alcohol superfine fiber
- Friendly using, efficient cleaning
- Tape made of high density textile fibers
- Cleaning time 500+
- Easy to replace the tape
- Cleaning class 100
| Fiber Connector Cleaning Cassette: | |
| Cleans per Reel | 500 times |
| Applied Connectors | SC, FC, ST, LC, MU, E2000, DIN, D4, MTRJ, MPO, etc without pins |
| Tape Length | 10 meters |
| Weight | 200g |
| Size (W*H*D) | 115*79*32mm |
| Replacement Reel: | |
| Cleans per Reel | 500 times |
| Name | Description |
| Fiber Connector Cleaning Cassette | Suitable for SC, FC, ST, LC, MU, E2000, DIN, D4, MTRJ, MPO connectors, etc without pins |
| Replacement Reel | 500 times |
1.25mm One-click Ferrule Mate Cleaner
2.5mm One-click Ferrule Mate Cleaner
Description:
One-click Ferrule Mate Cleaner is specially designed to remove dust, oil and other contaminant from both male fiber optic connector ferrule end face directly and through adapters without scratching ferrule end face.
One-click Ferrule Mate Cleaner is composed of cleaning reel, extendable nuzzle and guide cap.
Features:
- Can handle any types of pollution
- Super long lifetime, over 800 times cleaning
- Clean over 95% surface of fiber ferrule with only one click
- Suitable for both male connectors and connectors though adapters
| Model | 1.25mm | 2.5mm | |
| Dimension | standard | 180*17*17mm | |
| nozzle extended | 215*17*17mm | ||
| Connector Type | 1.25mm ferrule, LC/MU | 2.5mm ferrule, SC/FC/ST/E2000 | |
| Cleaning Cycles | 800 cycles | ||
| Weight | 0.1kg | ||
