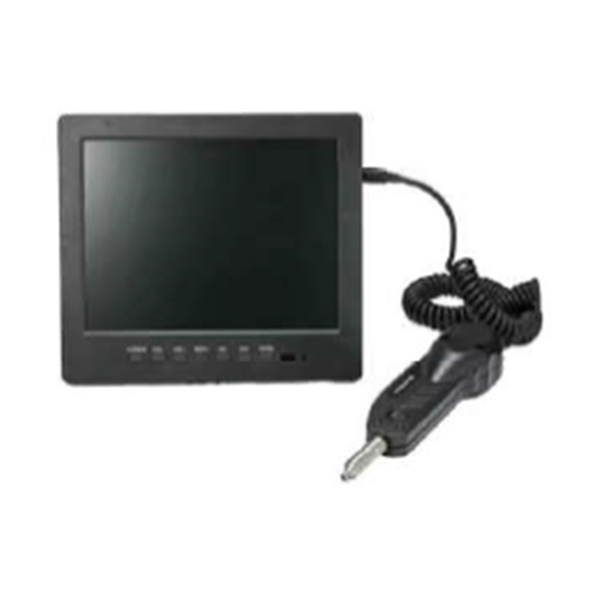

MAY95-2 High Definition Fiber Microscope

Standard Accessories:

MAY95-2 High Definition Fiber Microscope

MAY95 Probe and 8” Monitor

MAY95-1 Fiber Microscope - 25-U-M Tip for 2.5mm connectors SC/PC FC/PC ST/PC E2000/PC

25-U-M Tip (For 2.5mm connectors, SC/PC, FC/PC, ST/PC, E2000/PC)

MAY95-1 Fiber Microscope - 125-U-M Tip for 1.25mm connectors LC/PC MU/PC

125-U- M Tip (For 1.25mm connectors, LC/PC, MU/PC)

MAY95-1 Fiber Microscope - SC-PC-F Tip for SCUPC adapter

SC-PC-F Tip (For SC/PC adapter)

MAY95-1 Fiber Microscope - FC-PC-F Tip for FCUPC adapter

FC-PC-F Tip (For FC/PC adapter)

MAY95-1 Fiber Microscope - LC-U-F Tip for LC/PC adapter

LC-U-F Tip (For LC/PC, MU/PC adapter)

Optional Accessories:

MAY95-1 Fiber Microscope - 25-A-M Tip for 2.5mm connectors SC/APC FC/APC ST/APC E2000/APC

25-A-M Tip (For 2.5mm connectors, SC/APC, FC/APC, ST/APC, E2000/APC)

MAY95-1 Fiber Microscope - 125-A-M Tip for 1.25mm connectors LC/APC MU/APC

125-A-M Tip (For 1.25mm connectors, LC/APC, MU/APC)

MAY95-1 Fiber Microscope - FCSC-A-F Tip for FC/APC and SC/APC adapter

FC/SC-A-F Tip (For FC/APC and SC/APC adapters)

MAY95-1 Fiber Microscope - LC-A-F Tip for LC/APC adapter

LC-A-F Tip (For LC/APC adapter)

MAY94 and MAY95 Fiber Microscope - AV-USB 2.0 Converter for PC
MAY94 Fiber Microscope - AV-USB 2.0 Converter for PC Application

                                                                           USB Converter for PC

MAY94 and MAY95 Fiber Microscope - WiFi Converter for Android App and iOS (Apple) App in Smartphone
MAY94 Fiber Microscope - WiFi Converter for Android App and iOS (Apple) App in Smartphone Application

                                   BNC Converter for Android App and iOS (Apple) App in Smartphone

Description:
This product is a portable, video microscope used to inspect all kinds of fiber optic terminations, especially for the female ones. It eliminates the need to access the backside of patch panels or disassemble hardware devices before inspection. Fiber Optic Inspection Scope 200X or 400X.

Features:

  • Suitable for both male and female connectors
Specification:
Model MAY95-2
Image Zoom 200X or 400X
Display Screen 8 inch
Resolution 1024(H)*768(V) Pixel
Power Adapter 12V AC/DC Adapter
Resolution 0.75um
Probe Weight 160g
Working Temperature -20°C-50°C
Storage Temperature -30°C-60°C
Standard Accessories:
Name Quantity
MAY95 Probe 1pc
8 inch Display Screen 1pc
25-U-M Tip (For 2.5mm Connectors, SC/PC, FC/PC, ST/PC, E2000/PC) 1pc
125-U-M Tip (For 1.25mm Connectors, LC/PC, MU/PC) 1pc
SC-PC-F Tip (For SC/PC Adapter) 1pc
FC-PC-F Tip (For FC/PC Adapter) 1pc
LC-U-F Tip (For LC/PC Adapter) 1pc
12V AC/DC Power Adapter 1pc
User Manual 1pc
Soft Carrying Bag for MAY95 Probe 1pc
Optional Accessories:
25-A-M Tip (For 2.5mm connectors, SC/APC, FC/APC, ST/APC, E2000/APC) 1pc
125-A-M Tip (For 1.25mm connectors, LC/APC, MU/APC) 1pc
FC/SC-A-F Tip (For FC/APC and SC/APC adapters) 1pc
LC-A-F Tip (For LC/APC adapter) 1pc
SC-U-F-60 60 Degree Angle Tip (For SC/UPC adapter) 1pc
SC-A-F-60 60 Degree Angle Tip (For SC/APC adapter) 1pc
Long Tip (please specify the connector to be tested) 1pc
MPO-U Tip (For MPO/UPC MTP/UPC connector) 1pc
MPO-A Tip (For MPO/APC MTP/APC connector) 1pc
20-U-M Tip (For SMPTE/LEMO/UPC connector) 1pc
20-U-F Tip (For SMPTE/LEMO/UPC adapter) 1pc
AV-USB 2.0 Converter for PC 1pc
WiFi Converter for Android App and iOS (Apple) App in Smartphone 1pc
