Miller ACS Series Cable Slitter for Armored & Heavy-Duty Cable

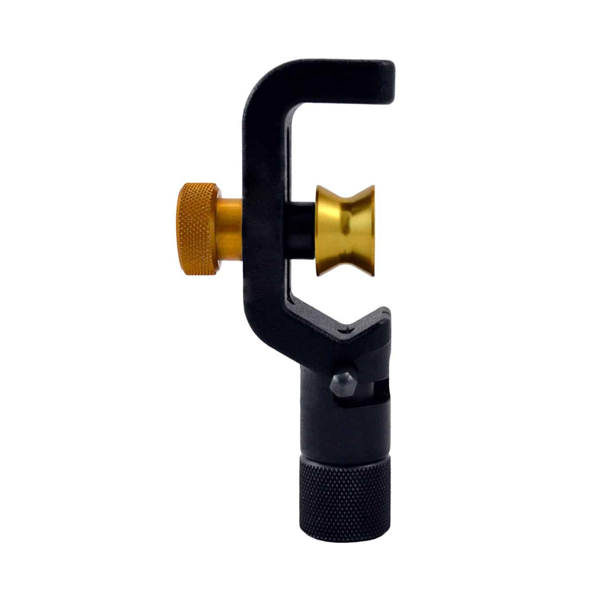

ACS Cable Slitter for Armored & Heavy-Duty Cable

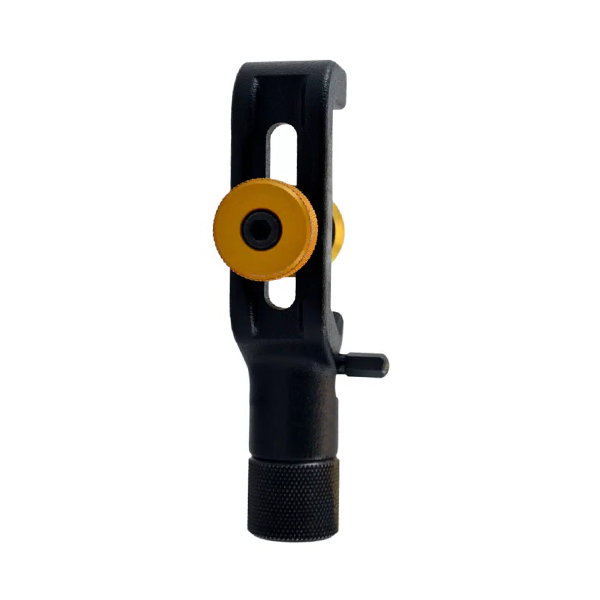

ACS Cable Slitter Side View

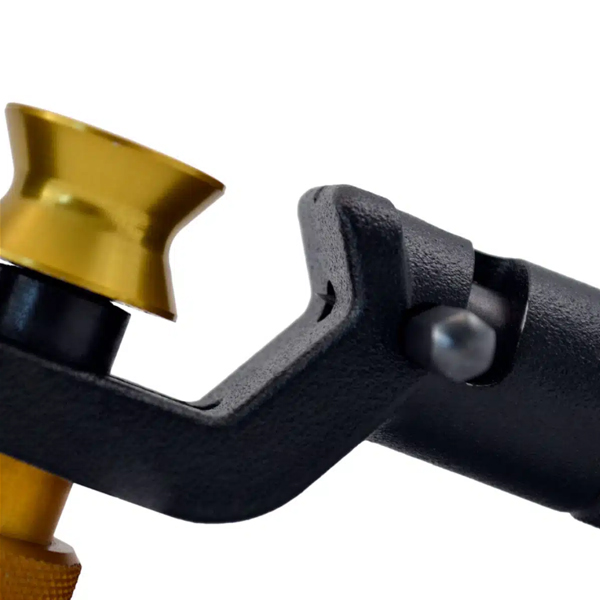

Detail image of ACS cable slitter

ACS Cable Slitter for Armored & Heavy-Duty Cable

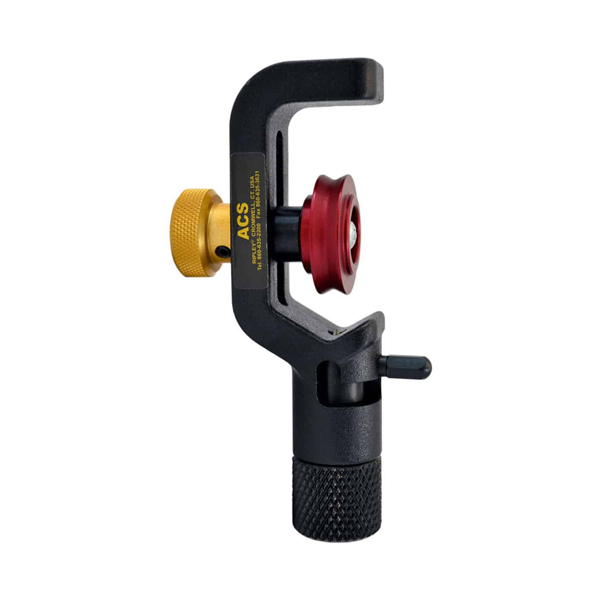

ACS-2 Cable Slitter for Armored & Heavy-Duty Cable

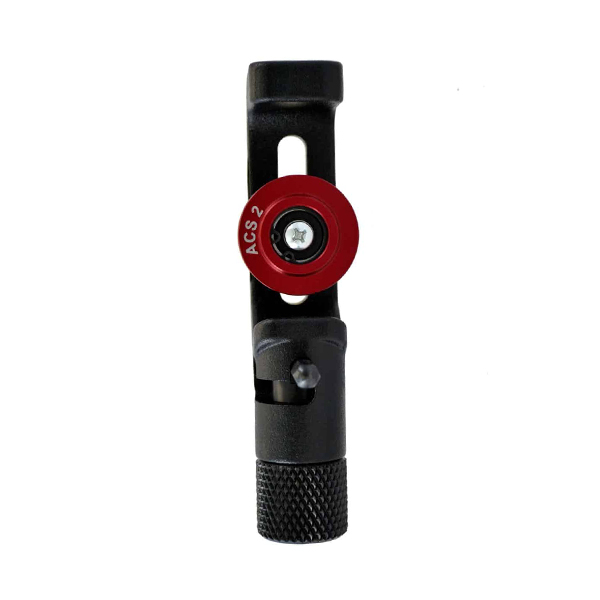

ACS-2 Cable Slitter Side View

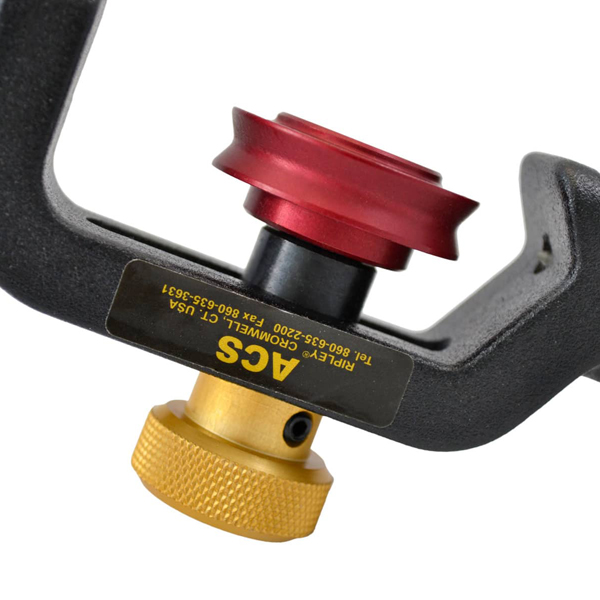

Detail image of ACS-2 cable slitter

ACS-2 Cable Slitter for Armored & Heavy-Duty Cable

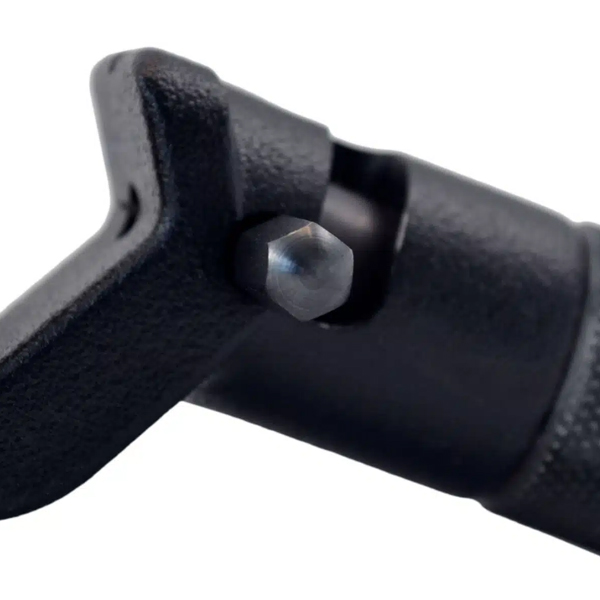

Radial and longitudinal blade setting of ACS series cable slitter

Description:
The ACS tools are designed to work on jacketed or jacketed and armored multi-fiber cable. Their main purpose is to gain mid-span access to fiber optic conductors by slitting the outer jacket or jacket and armor on the above cables. The tools are designed with a precision adjustable blade to avoid damage to the fibers.

Features:

  • Professional-grade tool ideal for slitting the armor layer on fiber feeder, central tube & stranded loose tube fiber optic cables, as well as various other non-fiber armored cables
  • Versatile design features a guide wheel for stability to accurately slit the outer polyethylene jacket & armor in one step
  • Performs longitudinal slitting & circumferential (ringing) stripping on cable ends
  • Optional red guide wheel allows the ACS model to accommodate smaller cable diameters
Specifications:
Model ACS ACS-2
Cable Access End Mid-Span, End
Min. Cable Outer Diameter 0.315” (8mm) 0.157” (4mm)
Max. Cable Outer Diameter 1.125” (28.6mm) 0.3937” (10mm)
Guide Wheel Color Gold Red
Adjustable Blade Depth Up to 0.22” (5.5mm)
Cable Material Armored Corrugated Copper, Armored Steel, Armored Aluminum
Length 127mm
Weight 284g

Warning! This tool should not be used on live electrical circuits. It is not protected against electrical shock! Always use OSHA/ANSI or other industry approved eye protection when using tools. This tool is not to be used for purposed other than intended.Read carefully and understand instructions before using this tool.
