Single Mode 1×2 and 2×2 Module FBT Coupler
Fiber optic accessories, such as adapters, connectors, patch cords, pigtails, attenuators and splitters, are vital to fiber optic network.
Fiber Optic FBT Couplers adopt FBT (Fused Biconical Tapered) technology, and are used for optical signal coupling of fiber transmission and optical power re-allocation. FBT coupler is the most cost-effective and easy connective device in optical transmission system.
FBT Couplers are available in a variety of port configurations, package sizes, coupling ratios, and wavelengths, etc., allowing high flexibility in tailoring the product to suit your precise requirements and application.
All FBT couplers are fully compliant with Telcordia GR-1209 and GR-1221 standards for network applications requiring superior performance and long-term reliability.
Module FBT Coupler without optical fiber connectors can be spliced with optical fibers to get low loss, while Module FBT Coupler terminated with connectors can connect with optical fiber adaptors and enables quicker connection and disconnection than splicing. Module FBT Couplers are widely used for fiber optic communication system in telecommunication, CATV, etc.
Features:
- Low PDL
- High Stability
- High Directivity
- Environmentally stable
- Small package dimension
- Low Polarization dependence
- Low Insertion Loss and High Return Loss
Applications:
- CATV
- LAN & WAN
- Telecommunication networks
Standards:
- Telcordia GR-1209and GR-1221
| Tension | 0.23kg, 1 minute |
| Impact | 1.8m height, 3 axes, 8 times per axis |
| Vibration | 10Hz~ 55Hz, amplitude 1.52mm, 3 axes, 4 hours per axis |
| Low Temperature | -40±5°C, 5,000 hours |
| High Temperature | 85±2°C, 5,000 hours |
| Water Immersion | 43±2°C /PH5.5±0.5, 168 hours |
| Warm and Humidity | 75±2°C/90±5%RH, 5,000 hours |
| Temperature Cycling | -40±2°C~85±2°C, 300 periods, 2,400 hours |
Specifications:
| Port Configuration | 1×2 | 2×2 |
| Operating Wavelength | 1310nm or 1550nm | |
| Bandwidth | ±20nm | |
| Coupling Ratio | 1~50 | |
| Excess Loss | ≤0.15dB | |
| PDL | ≤0.15dB | |
| Thermal Stability | ≤0.1dB/°C | |
| Directivity | ≥55dB | ≥60dB |
| Uniformity | ≤0.8dB | |
| Return Loss | ≥55dB | |
| Fiber Type | Corning SMF-28 | |
| Fiber Length | 1 meter or customized | |
| Cable Diameter | 900um loose tube, 2.0mm cable, 3.0mm cable | |
| Package Dimension | 90×20×10mm | |
| Operating Humidity | ≤93%RH | |
| Storage Humidity | ≤93%RH | |
| Operating Temperature | -40~+85°C | |
| Storage Temperature | -40~+85°C | |
Note: Wide bandwidth of ±40nm is available at customers’ request.
| Coupling Ratio (100%) | Insertion Loss | |
| Typical | Maximum | |
| 1/99 | 20.8/0.2 | 21.6/0.3 |
| 2/98 | 19.0/0.2 | 20.0/0.3 |
| 3/97 | 16.5/0.3 | 17.0/0.4 |
| 5/95 | 14.1/0.3 | 14.9/0.6 |
| 10/90 | 10.6/0.6 | 11.3/0.9 |
| 15/85 | 8.6/0.8 | 9.3/1.1 |
| 20/80 | 7.3/1.1 | 7.9/1.4 |
| 25/75 | 6.3/1.4 | 6.8/1.7 |
| 30/70 | 5.5/1.7 | 6.0/2.0 |
| 35/65 | 4.8/2.1 | 5.3/2.4 |
| 40/60 | 4.2/2.4 | 4.7/2.8 |
| 45/55 | 3.7/2.8 | 4.2/3.3 |
| 50/50 | 3.2/3.2 | 3.7/3.7 |
Specifications:
| Port Configuration | 1×2 | 2×2 |
| Operating Wavelength | 1310nm and 1550nm | |
| Bandwidth | ±40nm | |
| Coupling Ratio | 1~50 | |
| Excess Loss | ≤0.15dB | |
| PDL | ≤0.15dB | |
| Thermal Stability | ≤0.1dB/°C | |
| Directivity | ≥55dB | ≥60dB |
| Uniformity | ≤0.8dB | |
| Return Loss | ≥55dB | |
| Fiber Type | Corning SMF-28 | |
| Fiber Length | 1 meter or customized | |
| Cable Diameter | 900um loose tube, 2.0mm cable, 3.0mm cable | |
| Package Dimension | 90×20×10mm | |
| Operating Humidity | ≤93%RH | |
| Storage Humidity | ≤93%RH | |
| Operating Temperature | -40~+85°C | |
| Storage Temperature | -40~+85°C | |
| Coupling Ratio (100%) | Insertion Loss | |
| Typical | Maximum | |
| 1/99 | 21.5/0.2 | 22.0/0.3 |
| 2/98 | 18.5/0.24 | 19.1/0.35 |
| 3/97 | 16.5/0.31 | 17.0/0.41 |
| 5/95 | 14.1/0.39 | 14.9/0.52 |
| 10/90 | 10.9/0.64 | 11.5/0.8 |
| 15/85 | 8.6/1.0 | 9.0/1.1 |
| 20/80 | 7.6/1.2 | 8.1/1.3 |
| 25/75 | 6.3/1.4 | 6.8/1.7 |
| 30/70 | 5.6/1.9 | 6.0/2.0 |
| 35/65 | 4.892.1 | 5.3/2.4 |
| 40/60 | 4.2/2.4 | 4.7/2.8 |
| 45/55 | 3.7/2.8 | 4.0/3.1 |
| 50/50 | 3.4/3.4 | 3.6/3.6 |
Specifications:
| Port Configuration | 1×2 | 2×2 |
| Operating Wavelength | 1310nm, 1490nm and 1550nm | |
| Bandwidth | 1310/1550±40nm, 1490±10nm | |
| Coupling Ratio | 1~50 | |
| Excess Loss | ≤0.07dB | |
| PDL | ≤0.15dB | |
| Thermal Stability | ≤0.1dB/°C | |
| Directivity | ≥55dB | ≥60dB |
| Uniformity | ≤0.8dB | |
| Return Loss | ≥55dB | |
| Fiber Type | Corning SMF-28 | |
| Fiber Length | 1 meter or customized | |
| Cable Diameter | 900um loose tube, 2.0mm cable, 3.0mm cable | |
| Package Dimension | 90×20×10mm | |
| Operating Humidity | ≤93%RH | |
| Storage Humidity | ≤93%RH | |
| Operating Temperature | -40~+85°C | |
| Storage Temperature | -40~+85°C | |
| Coupling Ratio (100%) | Insertion Loss | |
| Typical | Maximum | |
| 1/99 | 21.5/0.2 | 22.5/0.25 |
| 2/98 | 18.5/0.24 | 18.8/0.3 |
| 3/97 | 16.5/0.31 | 17.0/0.41 |
| 5/95 | 14.1/0.39 | 14.6/0.44 |
| 10/90 | 10.9/0.64 | 11.3/0.66 |
| 15/85 | 8.6/1.0 | 9.0/1.1 |
| 20/80 | 7.6/1.2 | 8.0/1.2 |
| 25/75 | 6.3/1.4 | 6.8/1.7 |
| 30/70 | 5.6/1.9 | 6.0/1.9 |
| 35/65 | 4.892.1 | 5.3/2.4 |
| 40/60 | 4.2/2.4 | 4.7/2.7 |
| 45/55 | 3.7/2.8 | 4.0/3.1 |
| 50/50 | 3.4/3.4 | 3.6/3.6 |
| Brand | MAY |
| Name | FBT: FBT Coupler |
| Port | 12: 1×2 22: 2×2 |
| Package | M: Module |
| Fiber Mode | 2D: SM G.652.D 7A1: SM G.657.A1 |
| Wavelength | 3: 1310nm 5: 1550nm 35: 1310nm and 1550nm 345: 1310nm, 1490nm and 1550nm |
| Cable Diameter | 9: 900um 2: 2.0mm 3: 3.0mm |
| Cable Length | 0.5: 0.5m 1: 1m 1.5: 1.5m 2: 2m; etc |
| Connector | SU: SC/UPC SA: SC/APC FU: FC/UPC FA: FC/APC LU: LC/UPC LA: LC/APC; etc None: without connectors |
| Coupling Ratio | 1: 1/99 3: 3/97 50: 50/50, etc |

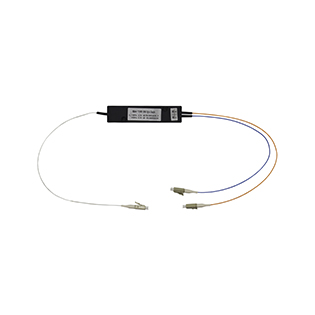

| Picture | Model | Description |
 |
MAY-FBT-12-M-2D-35-3-1-FU-50 | FBT coupler, 1×2, module package, single mode G.652.D, 1310nm and 1550nm, 3.0mm cable, 1m, with 3 pieces of FC/UPC connectors, coupling ratio: 50/50 |
