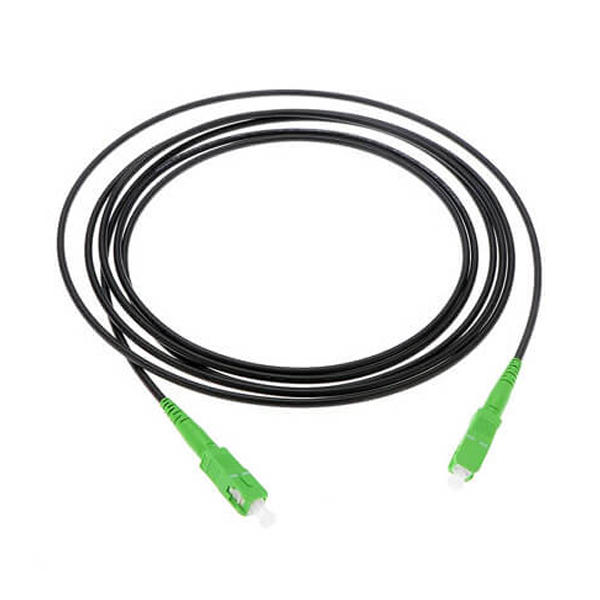

Outdoor Fiber Optic Patchcord and Pigtail
Description:
Outdoor Fiber Optic Patchcord uses a ф900um loose tube buffered optical fiber as the optical communication medium. The loose tube buffered optical fiber is wrapped with a layer of aramid yarn as a strength member, and is made of TPU jacket.
Features:
- OEM order available
- High temperature stability
- Excellent mechanical endurance
- Excellent polished and 100% tested
- Low insertion loss and high return loss
- Tight buffer fiber easy of stripping
- Tight buffer fiber have excellent flame-retardant performance
- Aramid yarn as strength member make cable have excellent tensile strength
- Corrosion resistance, waterproof, ultraviolet, flame retardant, environmental protection
Applications:
- Indoor integrated wiring
- Outdoor cabling
- Main wiring of the building
- Multicore optical fiber jumper
- Backbone Network
- Feeder and Distribution
- Access Network
Specifications:
Note: Insertion loss 0.2dB and 0.1dB (master cord/reference cable) is also available.
| Mode | SM | MM | ||
| Polishing | PC | UPC | APC | PC |
| Insertion Loss | ≤0.3dB | ≤0.3dB | ≤0.3dB | ≤0.3dB |
| Return Loss | ≥50dB | ≥50dB | ≥60dB | ≥35dB |
| Interchangeability | ≤0.2dB | |||
| Salt Spray | ≤0.2dB | |||
| Repeatability | ≤0.1dB (1,000 times) | |||
| High Temperature | ≤0.2dB (+85°C 168 hours) | |||
| Low Temperature | ≤0.2dB (-40°C 168 hours) | |||
| Temperature Cycle | ≤0.2dB (-40°C~85 °C 21 cycles 168 hours) | |||
| Humidity | ≤0.2dB (95% 75°C 168 hours) | |||
| Durability | ≥1,000 matings | |||
| Tensile Strength | 400N (3.0mm) | |||
| Vibration | ≤0.1dB (10-55Hz 1.5mm) | |||
| Falling | ≤0.2dB (1.5m high, 8 times) | |||
| Operating Temp. | -40°C~+80°C | |||
Ordering Information:
| Brand | MAY |
| Name | OPA: Outdoor Patchcord
OPI: Outdoor Pigtail |
| Connector 1 | SU: SC/UPC
SA: SC/APC LU: LC/UPC LA: LC/APC FU: FC/UPC FA: FC/APC TU: ST/UPC TA: ST/APC EU: E2000/UPC EA: E2000/APC, etc. |
| Connector 2 | SU: SC/UPC
SA: SC/APC LU: LC/UPC LA: LC/APC FU: FC/UPC FA: FC/APC TU: ST/UPC TA: ST/APC EU: E2000/UPC EA: E2000/APC, etc. None: Pigtail |
| Fiber Count | SI: Simplex |
| Fiber Type | 2D: SM G.652D
7A1: SM G.657A1 7A2: SM G.657A2 OM1: MM 62.5/125um OM2: MM 50/125um OM3: MM 50/125um OM4: MM 50/125um OM5: MM 50/125um |
| Cable Length | 0.5: 0.5m
1: 1m 1.5: 1.5m 2: 2m, etc |
| Cable Diameter | 3: 3.0mm |
| Jacket Material | T: TPU |
