Description:

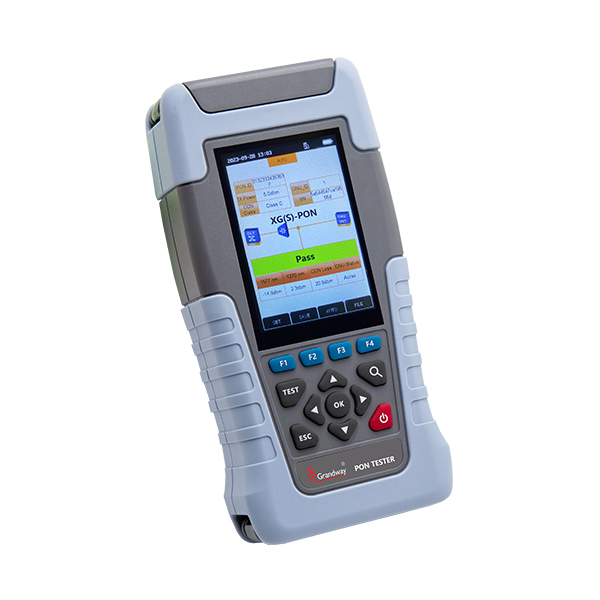

With the upgrade of GPON networks to XG(S)-PON, we have launched the new FOH-200XGS-PRO to apply for the installation and maintenance testing of the upgraded Combo PON network. By connecting FOH-200XGS-PRO in series to the PON network, we can quickly and accurately extract OLT and ONU information, support testing GPON and XG(S)-PON at the same time.
Features:
- Automatic PON-ID detection including OLT PON-ID, ODN class, Tx power, power level and ODN link pass/fail per ITU-T
- ONU/ONT ID and serial number, ONU status identification
- Downlink 1490nm/1577nm and uplink 1270nm/1310nm optical power measurement and judgement
- Test mode: two optical ports pass through mode, low insertion loss <1.5dB (typical)
- Compatible with GPON, XG(S)-PON and Combo network
- Bluetooth connection with phone app
PON Standard Compliance:
- GPON (ITU-T G.984.2)
- XG(S)-PON (ITU-T G.9807.1)
* The OLT information extraction needs to be activated in GPON OLT according to ITU-T G.984.3 Amd3
Specification:
| Test Mode | Series connect: Two ports pass through mode |
| Insertion loss | <1.5dB insertion loss |
| PON Data Parsing | OLT information: OLT PON ID, ODN class, Tx power ONU information: ONU ID, ONU SN |
| Power Measurement | Downlink: 1490mm and 1577nm
Uplink: 1270nm and 1310nm |

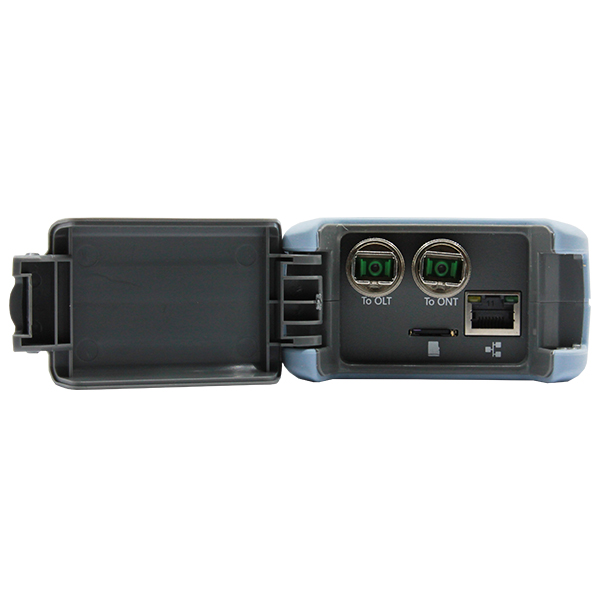

| Optical Interface | SC/APC*2 |

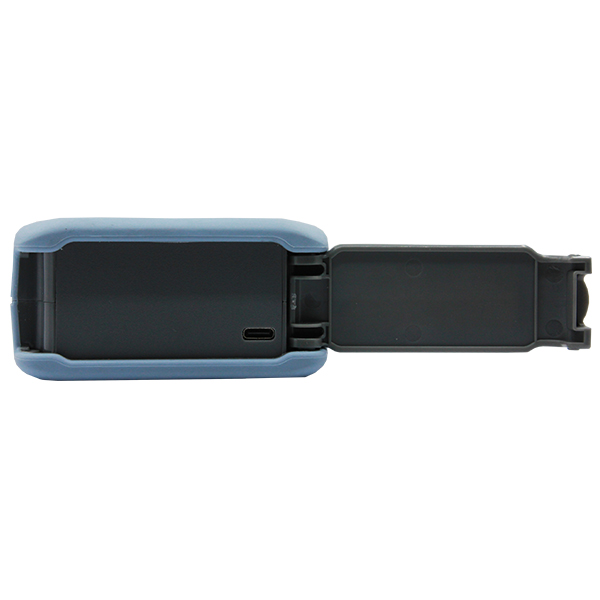

| Charging Port | USB Type-C charging port
20W quick charger |
| Power Supply | 8000mAh lithium battery; |
| Working Temp | -10℃~50℃ |
| Humidity | 5%~95% (no condensation) |
| Dimension | 193×94×47mm |
| Weight | 570g |
| Display | 3.5 inch color LCD |
| Wireless | Bluetooth connection with phone app |
Applications:
Automatic OLT information analysis for Combo G/XGS-PON

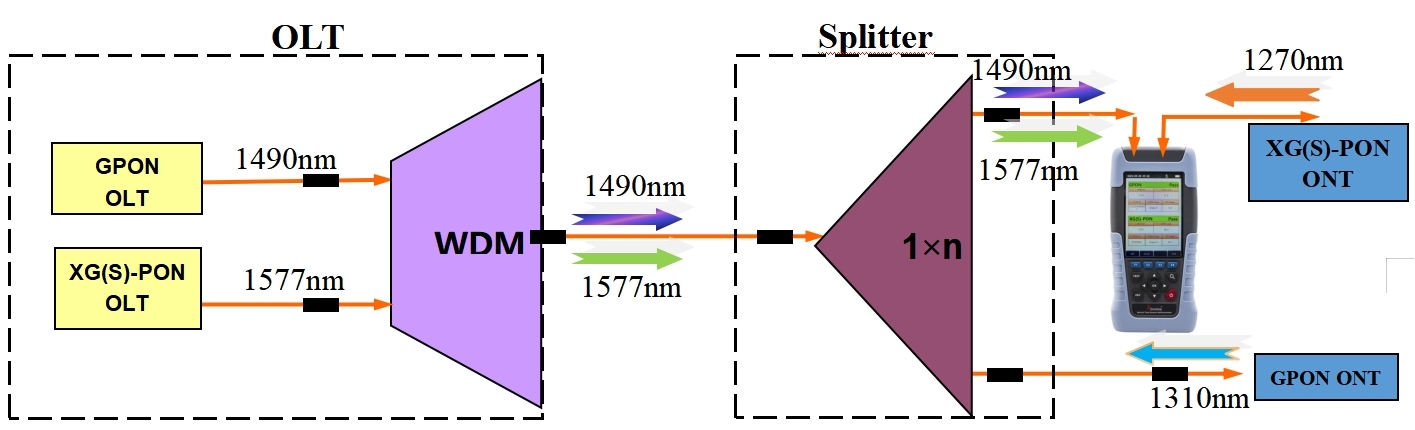

Through connecting FOH-200XGS-PRO in series to the PON fiber link, it can analysis extracts specific data carried in the G-PON & XGS-PON standardized by ITU-T G.984.3 Amendment 3, including OLT PON-ID, ODN class, Tx power and ONU/ONT ID and serial number. The usage scenario in the following figure:
