Ribbon Fanout Fiber Optic Pigtail

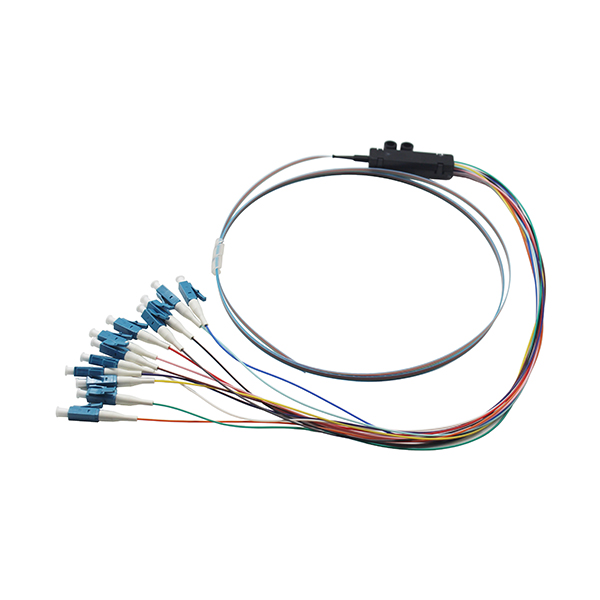

Ribbon Fanout Fiber Optic Pigtaill without ribbon fiber protection tube

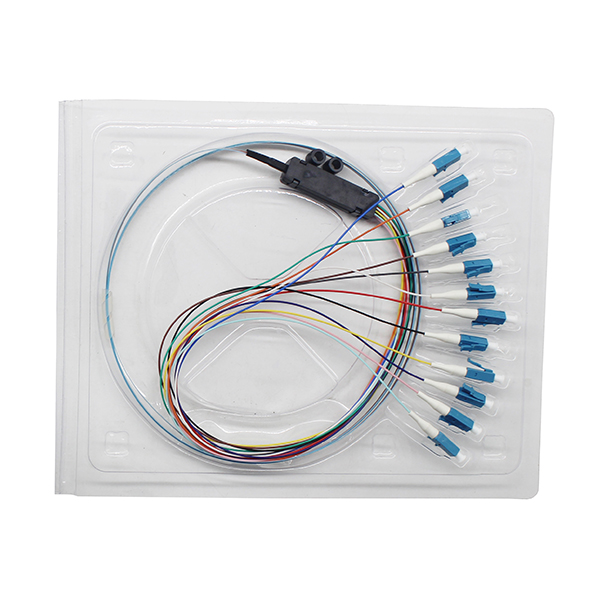

12 Fibers Ribbon Fanout LCUPC Fiber Optic Pigtail

without ribbon fiber protection tube

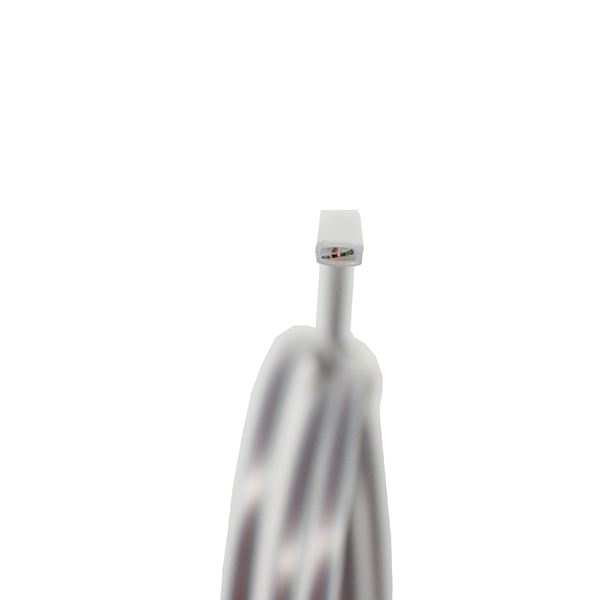

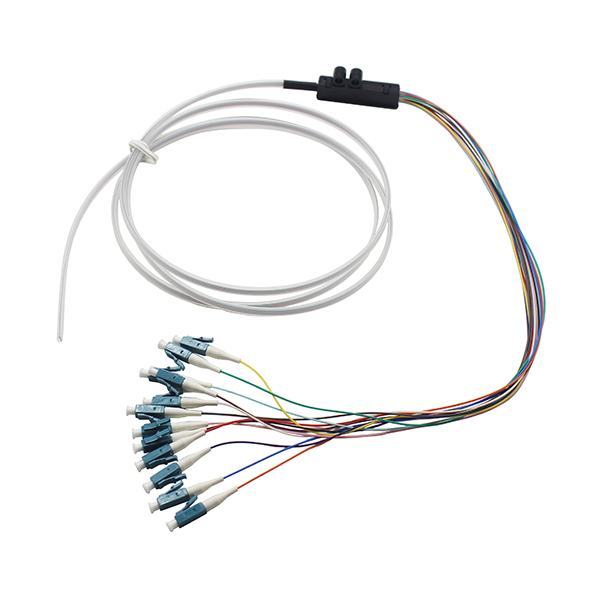

Ribbon Fanout Fiber Optic Pigtaill with ribbon fiber protection tube
ribbon fiber protection tube

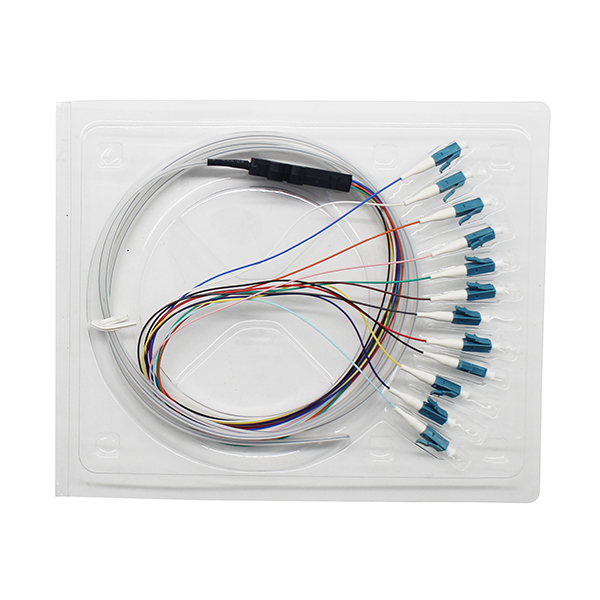

Ribbon Fanout Fiber Optic Pigtaill - Blister Box Packing

with ribbon fiber protection tube

Description:
Ribbon Fanout Fiber Optic Pigtail allows users to connect a fiber optic adapter/interface with a ribbon cable. The combination of a precision ceramic ferrule of a fiber optic connector, reliable fiber, and cable performance provides consistent long-term mechanical and optical performance. They are applied for high-density applications and widely used for Fiber Distribution Frame and Patch Panel in telecommunication, network, CATV, broadcast, security, etc.

Features:

  • OEM order available
  • High temperature stability
  • Excellent mechanical endurance
  • Excellent polished and 100% tested
  • Low insertion loss and high return loss

Applications:

  • CATV
  • LAN & WAN
  • Telecommunication networks
  • Industrial, medical and military
  • FTTX, FTTH (Fiber to the Home)
  • Fiber distribution frame and patch panel
Specifications:
Mode SM MM
Polishing UPC APC PC
Insertion Loss ≤0.3dB ≤0.3dB ≤0.3dB
Return Loss ≥50dB ≥60dB ≥35dB
Interchangeability ≤0.2dB
Salt Spray ≤0.2dB
Repeatability ≤0.1dB (1,000 times)
High Temperature ≤0.2dB (+85°C 168 hours)
Low Temperature ≤0.2dB (-40°C 168 hours)
Temperature Cycle ≤0.2dB (-40°C~85 °C 21 cycles 168 hours)
Humidity ≤0.2dB (95% 75°C 168 hours)
Durability ≥1,000 matings
Vibration ≤0.1dB (10-55Hz 1.5mm)
Falling ≤0.2dB (1.5m high, 8 times)
Operating Temp. -40°C~+80°C
Note: Insertion loss 0.2dB is also available.
Ordering Information:
Brand MAY
Name PI: Pigtail
Connector 1 SU: SC/UPC
SA: SC/APC
LU: LC/UPC
LA: LC/APC
FU: FC/UPC
FA: FC/APC
Fiber Count 4: 4 fibers
6: 6 fibers
8: 8 fibers
12: 12 fibers
Fiber Type 2D: SM G.652D
7A1: SM G.657A1
7A2: SM G.657A2
OM1: MM 62.5/125um
OM2: MM 50/125um
OM3: MM 50/125um
OM4: MM 50/125um
Ribbon Length (L1) 0.5: 0.5m
1: 1m
1.5: 1.5m
2: 2m, etc
Single Fiber Length (L2) 0.5: 0.5m
1: 1m
1.5: 1.5m
2: 2m, etc
Ribbon Fiber Protection Tube W: With Ribbon Fiber Protection Tube
O: Without Ribbon Fiber Protection Tube
Single Fiber Diameter 9: 0.9mm
For example: MAY-PI-LU-12-2D-1-1-W-9
Note: Packing: plastic bag or blister box

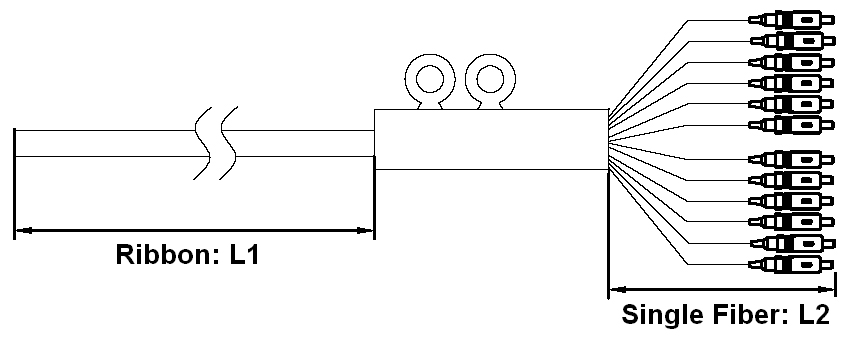

Ribbon Fanout Fiber Optic Pigtaill - Detailed picture
