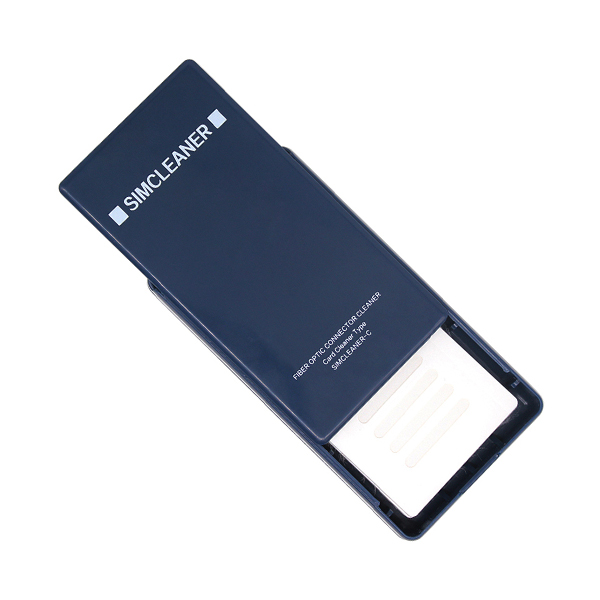

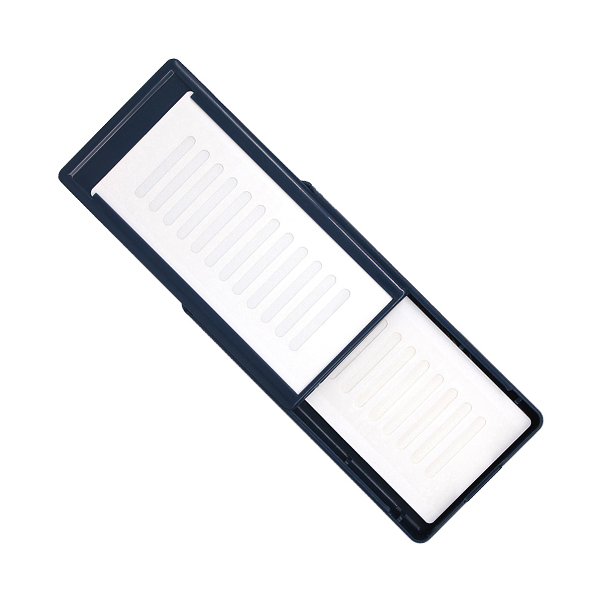

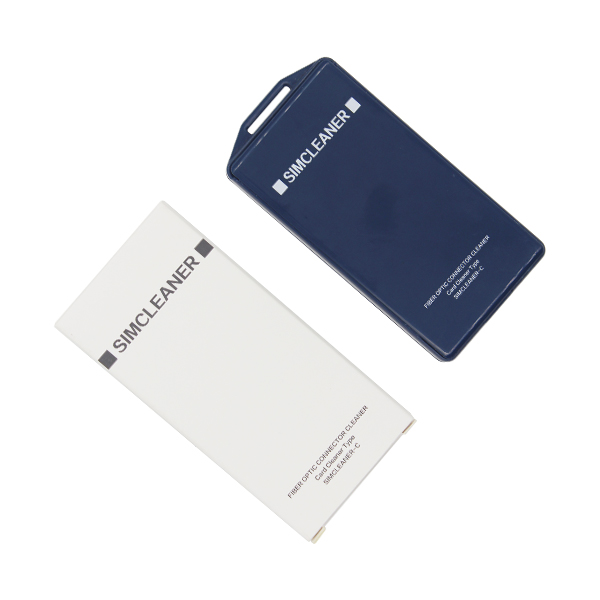

SIMCLN-01 SIMCLEANER-C Fiber Optic Connector Cleaner for FC, SC, ST, MU, LC Connectors - Card Type

SIMCLN-02 SIMCLEANER-C Fiber Optic Connector Cleaner
SIMCLN-01 SIMCLEANER-C Card Type Fiber Optic Connector Cleaner
SIMCLN-01 SIMCLEANER-C Fiber Optic Connector Cleaner
SIMCLN-01 Fiber Optic Connector Cleaner

Description:
SIMCLEANER-C Fiber Optic Connector Cleaner utilizes a specially formulated dry cloth for thorough and efficient cleaning of fiber optic connector end-faces. It eliminates the need for hazardous cleaning fluids that can leave a residue. The cloth is extremely effective in removing grease, dust, and other contaminants. It offers substantial labor savings over conventional high-volume applications and have been adopted by manufacturers and carriers worldwide.

Features:

  • Lightweight and can be used by both left and right hands
  • Card-type design: 10 cleaning cards are pooled into a portable pocket-sized package, and each cleaning surface of the cleaning card is packaged individually.
  • Efficient cleaning: ultra-clean microfiber cleaning cloth with good water absorption, dust absorption, and anti-static function, cleaning quickly and effectively
  • Wiping groove design: highly compatible with the fiber optic connector ferrule
  • Safe cleaning: protects fiber optic connectors and equipment from damage. No alcohol or Freon is used. Direct cleaning prevents secondary  contamination of the fiber optic connector end face.

Applications:

  • FTTX work sites installing OptiTap™ drop cable
  • Data center installation and preventative maintenance
  • Central office and head end new equipment installations and preventive maintenance
  • Production facilities that terminate fiber optic cable assemblies
  • Testing and measuring laboratories using optoelectronic equipment
  • Any application that uses unmated fiber optic connectors
  • Fiber Optic Satellite Communication Systems
Specifications:
Product Name SIMCLEANER-C Fiber Optic Connector Cleaner
Model SIMCLN-01
Type Card Type Cleaner
Shell Material ABS
Cleaning Cloth Material Ultra-clean Microfiber Cloth
Applicable Connector Type FC, SC, ST, MU, LC
Card Packaging Quantity 10 cards/box
Cleaning Cycles 120 times (12 times per card)
Package Dimension 125*62*20mm
Gross Weight 78.7g
Operating Temperature -20~+50℃
Storage Temperature -40~+60℃
Replaceable Cleaning Card Code SIM-CS-01: For FC, SC, ST, MU, LC connectors

Operation Video:
https://youtube.com/shorts/BOZUI1x5o1U
