SOC-SCAPC-0.9 SC/APC 0.9mm SOC Splice-on Connector

SOC-SCAPC-0.9 SCAPC 0.9mm SOC Splice-on Connector

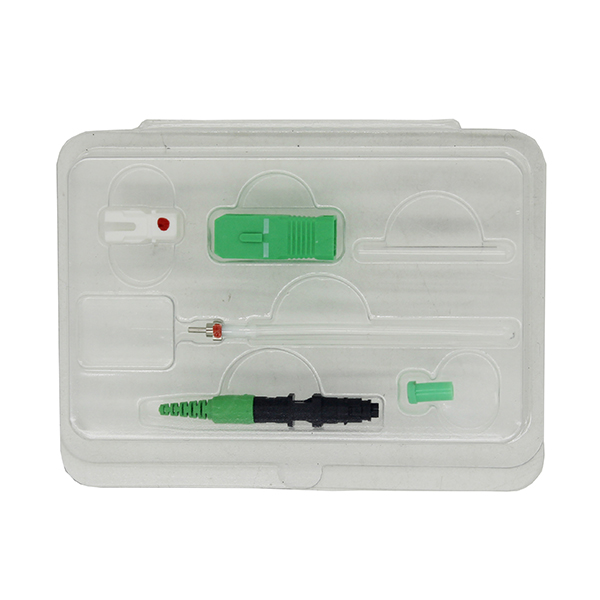

 Packing

SOC-SCAPC-0.9 SCAPC 0.9mm SOC Splice-on Connector - SC Fiber Holder

 SC Fiber Holder

It is easy, fast, and reliable for engineers to terminate optical fibers in the field by using the Field Assembly Optical Connector, without epoxy, polishing, or curing.
The field assembly optical connector plays an irreplaceable role in the FTTH access network. It can achieve similar excellent transmission parameters as standard patchcords. It can greatly reduce the assembly time.
The pre-embedded fiber in the ferrule of the splice-on connector has already been pre-polished at the patchcord workshop. Just strip, cleave, and clean the fibers, and then splice the fixed-length fiber with the fiber in the cable.

Installation Charm:
For splice-on connector, the fiber connects with the pre-embedded fiber by splicing. (Figure 1)

SC-SOC Splice-on Connector - Field Assembly Charm

Figure 1: Field Assembly Charm

Features:

  • High reliability, and save maintenance cost
  • Pre-embedded fiber is polished in high quality
  • Need necessary tools, like INNO View 5X Fiber Optic Fusion Splicer, etc.
  • Low insertion loss by splicing and high return loss by polishing
  • Can work stably in harsh environment, like severe coldness and dust, high temperature, high humidity, etc.

Applications:

  • Telecommunication networks
  • FTTX, FTTH (Fiber to the Home)
  • Fiber testing and testing equipment
  • FTTH Drop Cable, 86 socket outlet, and ONU
Specifications:
Model SOC-SCAPC-0.9
Applicable Cable 0.9mm round cable
Fiber Diameter 125um
Coating Diameter 250um
Fiber Mode single mode
Insertion Loss ≤0.3dB
Return Loss APC≥55dB
Installation Time 90s
Tensile Strength ≥5N (for 0.9mm round cable)
Ferrule Concentricity SM<1um; MM<1.4um
Operating Temperature -40°C~+75°C
Storage Temperature -40°C~+85°C
