Description:

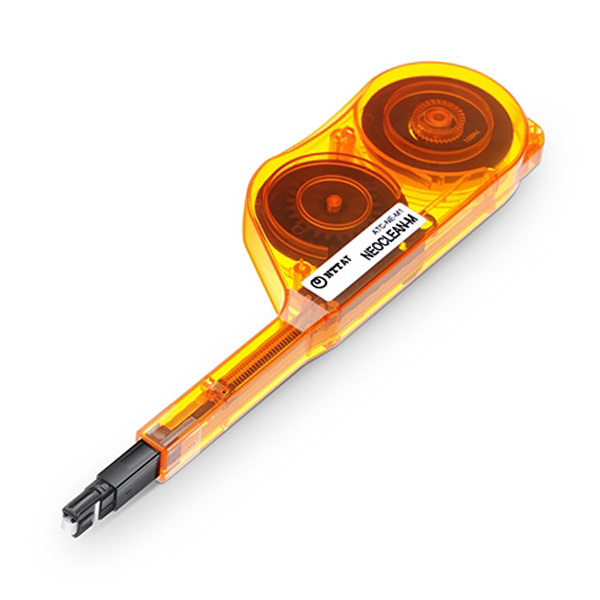

This cleaner is a high-performance device designed for cleaning the ferrule end faces of MTP & MPO connectors. An effective tool for cleaning fiber end-faces without the use of alcohol. It saves time by effectively cleaning all 8 / 12 / 24 fibers at once. The cleaners are designed to clean both exposed jumper ends and connectors in adapters.
Features:
- 600+ cleaning engagements per unit
- Simple one push action cleans all fibers
- Anti-static system produces pristine end face and minimizes contaminant attraction
- Clean cable assembly in hand as well as cables behind panel
- The attached cap allows cleaning of the ferrule end face in plugs
Applications:
- Fiber network panels and assemblies
- Outdoor FTTX applications using MPO connectors
- Cable assembly production facility
- Testing laboratories
- Data centers
- Central office
Specifications:
| Product Name | NEOCLEAN-M |
| Model | ATC-NE-M1 |
| Connector Type | MPO/MTP Ferrule & Adapter 8/12/12*2 cores etc. |
| Compatible End Face | PC, APC (with pin, no pin) |
| Cleaning Cycles | Over 600 cycles |
| Use Type | Disposable |
| Size | L197×W15×H51mm (no attachment); L208×W17×H51mm (with attachment) |
| Package Dimension | 218*55*21mm |
| Gross Weight | 62.8g |
