Description:
FHS2Q Series Optical Laser Source is an advanced version of FHS2 Series of Optical Laser Sources, with two more calibrated wavelengths.
Auto-wavelength Recognition:
FHS2Q Series Optical Laser Source transmits with a wavelength-identification digital encrypted protocol, enabling FHP2 Series Optical Power Meter to automatically use the proper calibration wavelength. This feature reduces the need for communication between the two technicians and decreases the possibility of making mistakes.
FHS2Q Series Optical Laser Source offers excellent stability and portability for accurate fiber optic testing.

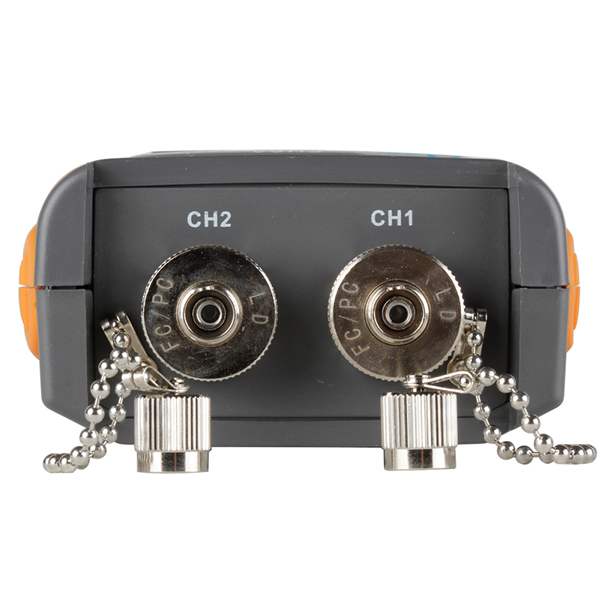

Two output ports provide stable laser power at four wavelengths. The compact unit operates in either continuous wave (CW) mode or modulated mode. A low battery indicator reminds the user of replacing the battery.
Features:
- Easy-to-use,straight forward operation
- Eye-catching handheld appearance
- LCD backlight for easy operation in dark environment
- Rechargeable battery inside
- Four wavelengths available for multi-purpose testing
- One-year warranty and recommended calibration interval
Specification:
| Type | FHS2Q01F |
| Output Wavelength | 850/1300/1310/1550nm |
| Emitter Type | LD |
| Output Stability | Short Term (15 minutes): <±0.05dB@1310,1550nm;
±0.1dB@850&1300nm Long Term (8 hours): <±0.1dB@1310,1550nm; ±0.2dB@850&1300nm |
| Central Wavelength | ±20nm |
| Spectral Width | 5nm |
| Output Frequency | 270Hz, 1KHz, 2KHz |
| Output Power | -5dBm±0.5dB |
| Auto Power-off | Yes |
| Back-light | Yes |
| Operating Temperature | -10 to +50℃ |
| Storage Temperature | -20 to +70℃ |
| Power Supply | 2*Ni-MH AA batteries |
| Dimension | 160mmL*76mmW*45mmH |
| Net Weight | 270g |
| Standard Accessories: | |
| 2*FC adapters, 2*SC adapters, 3*ceramic sleeves, 2*AA Ni-MH AA batteries, power adapter, USB cable, carrying bag, user manual, test report | |
