Description:

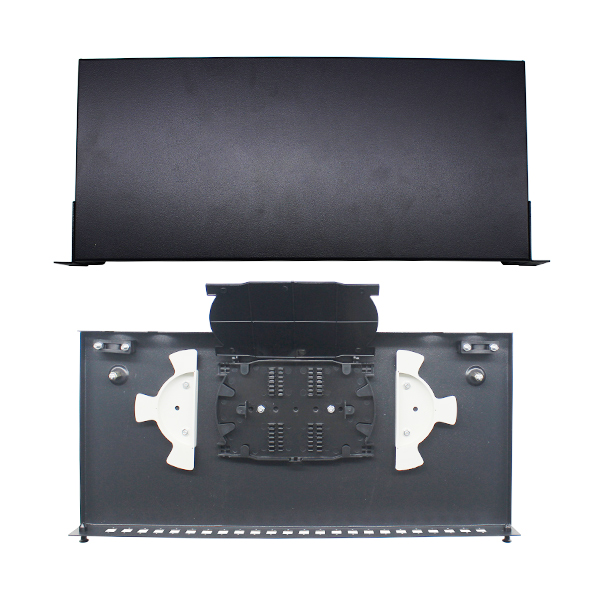

No Rail Drawer Type Fiber Optic Patch Panel is a 19” rack mount splice & patch enclosure with sliding trays for managing fiber optic cabling in central office in FTTx application.
Drawer Type Fiber Optic Patch Panel is used as termination panel for optical fiber wiring, fixation, splicing and patching.
No Rail Drawer Type Fiber Optic Patch Panel can accommodate 24pcs of simplex SC adapters max. and the max. fiber number is 24 fibers.
Features:
- No Rail Drawer type Patch Panel for easy operation and maintenance as well as save cost
Specifications:
| Applicable Adapter | simplex SC adapters |
| Max. Adapter Quantity | 24pcs |
| Fiber Number | 24 fibers max. |
| Material | cold rolled steel |
| Color | Black |
| Size | 482.6(W)*200(D)*44(H)mm (19” 1U) |
| Installation Method | 19” rack mount |
| Splice Tray Capacity | 24 fibers/tray, 1 tray (single layer: 12 fibers; dual layers: 24 fibers) |
| Packing | 5pcs/carton, 55*28*29cm;
13.2kg: with 24pcs of simplex SC adapters/patch panel 13.8kg: with 24pcs of simplex SC adapters and pigtails/patch panel |
Simplex SC Adapter
Fiber optic adapter is an essential passive component in fiber optic communication network. It is used for the connection between connectors, jumpers, pigtails, splitters, etc. Fiber Optic Adapter’s internal precision sleeve is used to align ferrules of fiber optic connectors.
SC Adapters, also called SC Coupler or SC Bulkhead Connector, could couple SC connectors to SC connectors. The combination of a ceramic sleeve and precision molded polymer housing provides consistent long-term mechanical and optical performance.
Features:
- High precision alignment
- High reliability and stability
- Low insertion loss and high return loss
Applications:
- Cable TV
- Telecommunication networks
- Fiber to the Home
Specifications:
| Adapter Type | SM SC/UPC | SM SC/APC |
| Housing Color | blue | green |
| Housing Material | plastic | plastic |
| Channel | simplex | simplex |
| Flange | with flange | with flange |
| Insertion Loss | ≤0.2dB | ≤0.2dB |
| Return Loss | ≥50dB | ≥65dB |

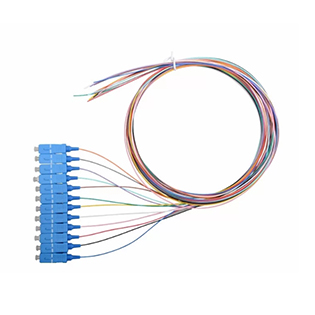

12 Colors Fiber Optic Pigtails
12 Colors Fiber Optic Pigtail allows users to connect adaptor/interface with fiber optic cable. The combination of a precision ceramic ferrule of fiber optic connector, reliable fiber and cable performance provides consistent long-term mechanical and optical performance. 12 Colors pigtails are widely used for Fiber Distribution Frame and Patch Panel in telecommunication, network, CATV, broadcast, security, etc
Features:
- High temperature stability
- Excellent mechanical endurance
- Excellent polished and 100% tested
- Low insertion loss and high return loss
Applications:
- CATV
- LAN & WAN
- Telecommunication networks
- Industrial, medical and military
- FTTX, FTTH (Fiber to the Home)
- Fiber distribution frame and patch panel
Specifications:
| Mode | single mode | |
| Polishing | SC/UPC | SC/APC |
| Insertion Loss | ≤0.3dB | ≤0.3dB |
| Return Loss | ≥50dB | ≥60dB |
| Cable Diameter | 0.9mm | |
| 0.9mm Cable Colors | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua | |
| Cable Jacket Material | LSZH | |
| Fiber Type | G.657.A1 | |
| Fiber Length | 1.5 meter | |
