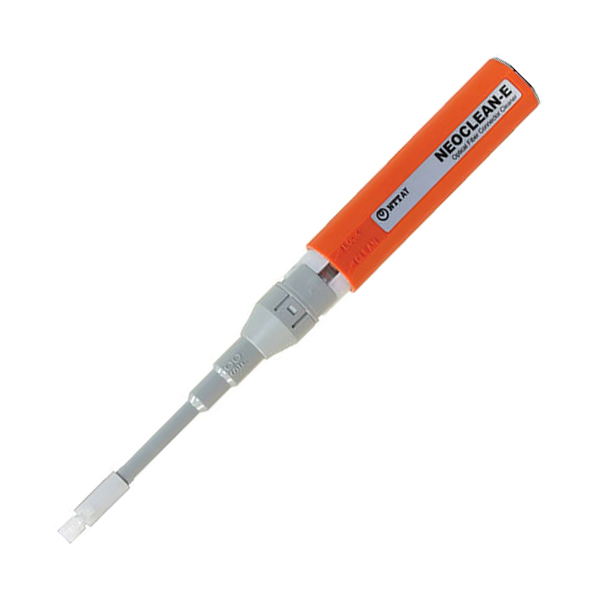

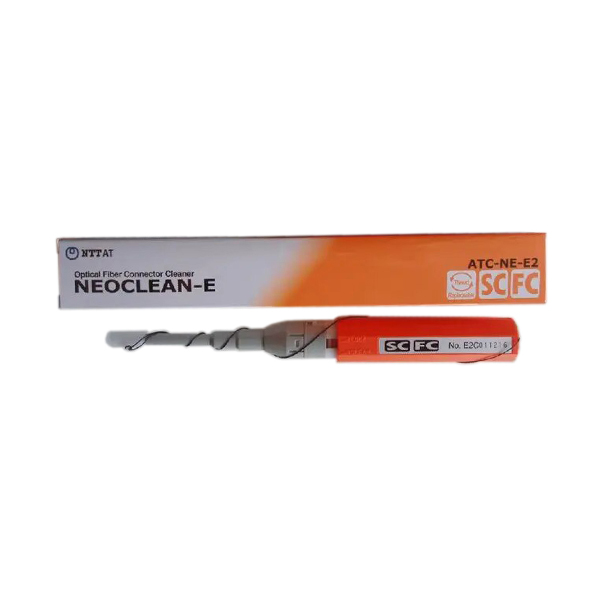

The NEOCLEAN-E2 Fiber Optic Cleaner is a dry cloth cleaning tool designed to clean single fiber connectors in an adapter, faceplate, or bulkhead. Each NEOCLEAN-E2 Fiber Optic Cleaning Tool features a dust cap which acts as an adapter for cleaning unmated connectors. The NEOCLEAN-E2 fiber optic cleaner is refillable and easy to use. It removes oil and dust contaminants, improving optical performance. It cleans 2.5mm SC, SC2, FC, FAS, FA connectors.
The stability of any optical network infrastructure depends critically on the condition of the connector. In addition to power degradation, connector end faces with even minor amounts of dirt have a higher chance of experiencing irreparable damage during mating. Signal degradation, residue cross contamination, and long-lasting impacts of contamination can all be avoided with sound cleaning procedures, appropriate training, and usage of durable cleaning instruments.
Features:
- Dry cloth
- No additional solvents are required
- Easy pushing motion to engage tool
- Refillable option lowers cost per clean
- Cleaning microfibers are densely stranded and debris free
- Dust cap lid opens us to clean unmated connectors
- The cleaning tip has single 360˚ rotation motion
- Lanyard prevents the dust cap from getting lost
- ROHS Compliant
- Cleans connectors in the bulkhead adapter and on a cable assembly
Applications:
- Fiber network panels and assemblies
- Outdoor FTTX applications using SCor FC connectors
- Cable assembly production facility
- Testing laboratories
- Data centers
- Central office
Specifications:
Product Name | NEOCLEAN-E2 |
Model | ATC-NE-E2 |
Connector Type | Ferrule & Adapter 2.5mm (SC/SC2/FC/FAS/FA) |
Cleaning Cycles | 750 cycles |
Package Dimension | 250*37*28mm |
Gross Weight | 67.65g |
Replaceable Cartridge | Product Name: NEOCLEAN-E2 Replacement Cartridge
Model: ATC-NE-ES2 |
